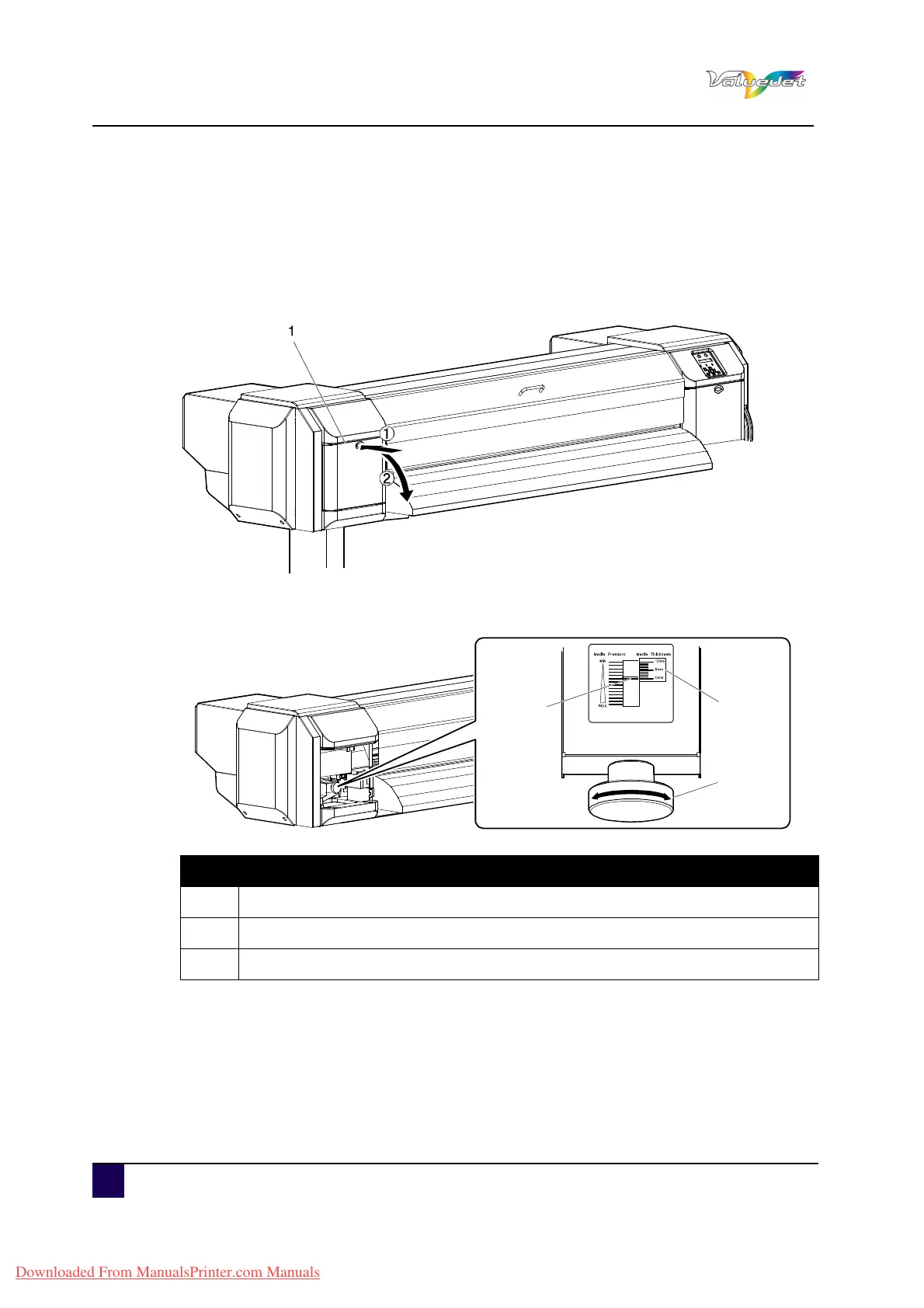

3.3.5 Adjusting the pressure on the media
This section explains how to adjust the pressure on the media.
Step 1: Check that the media loading lever is raised.
Step 2: Measure the thickness of the media you are loading with callipers.
Step 3: Open the left maintenance cover.
Step 4: Turn the pressure adjustment handle and adjust it so that it comes to the level
measured in previous step.
2
1
3
N° Description
1 Pressure adjustment handle
2 White line
3 Media thickness gradation
