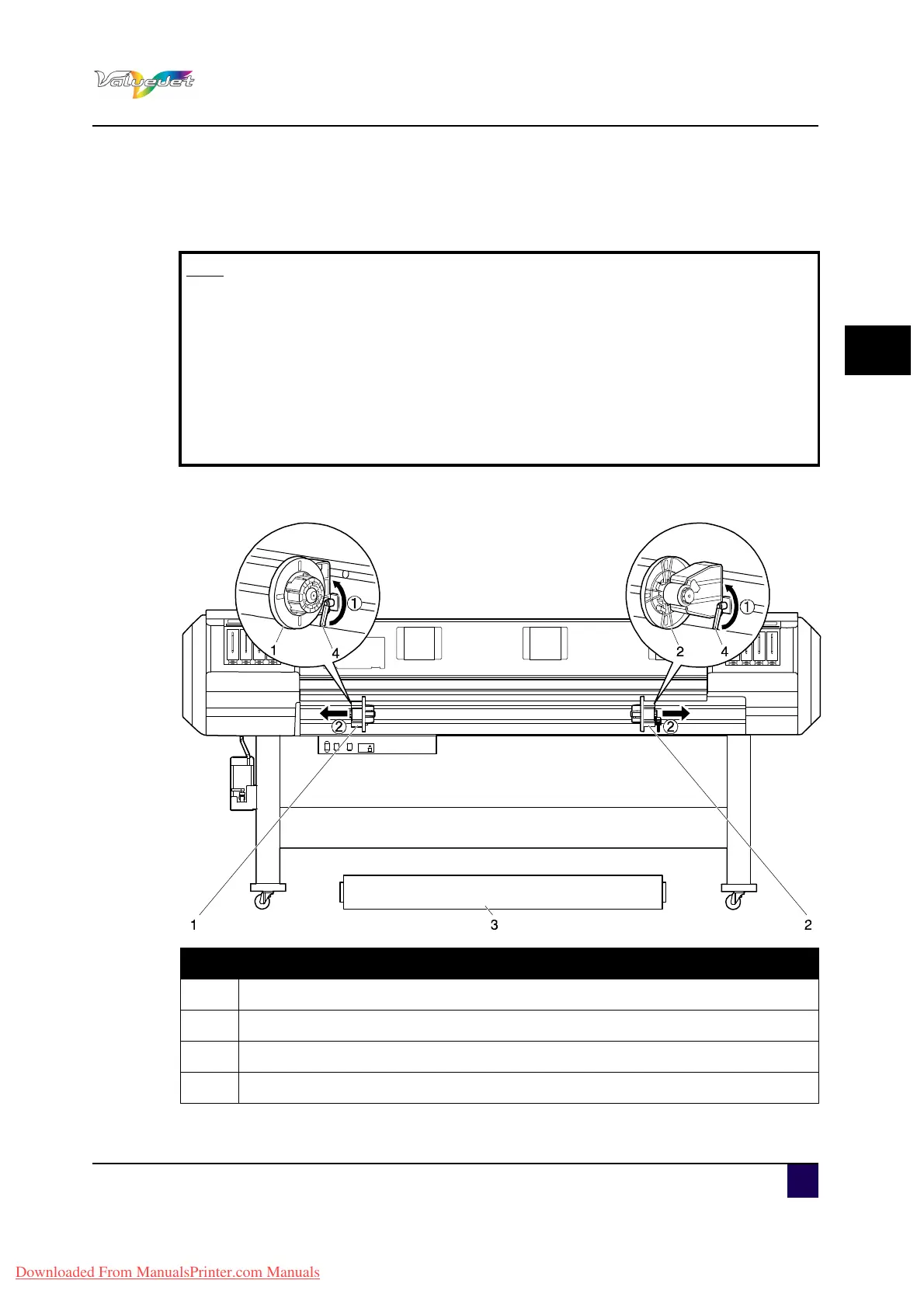

3.2.2 Loading roll media
This section explains how to load roll media.
Step 1: Loosen the fixing levers on the right and left side. Set the distance between the roll
media holders wider than the roll media width.
Note
The following media can be attached to the scroller supplied with this unit.
Outer diameter 150 mm or less
Tube diameter: 3 inch
Weight: maximum 30 kg
Length: maximum 50 m
Width maximum 1.625 mm
Thickness maximum 0.3 mm
N° Description
1 Left roll media holder
2 Right roll media holder
3 Roll media
4 Fixing lever
