User’s Guide ValueJet 1608 HS
Product overview
22 AP-75810 - Revision 2.0

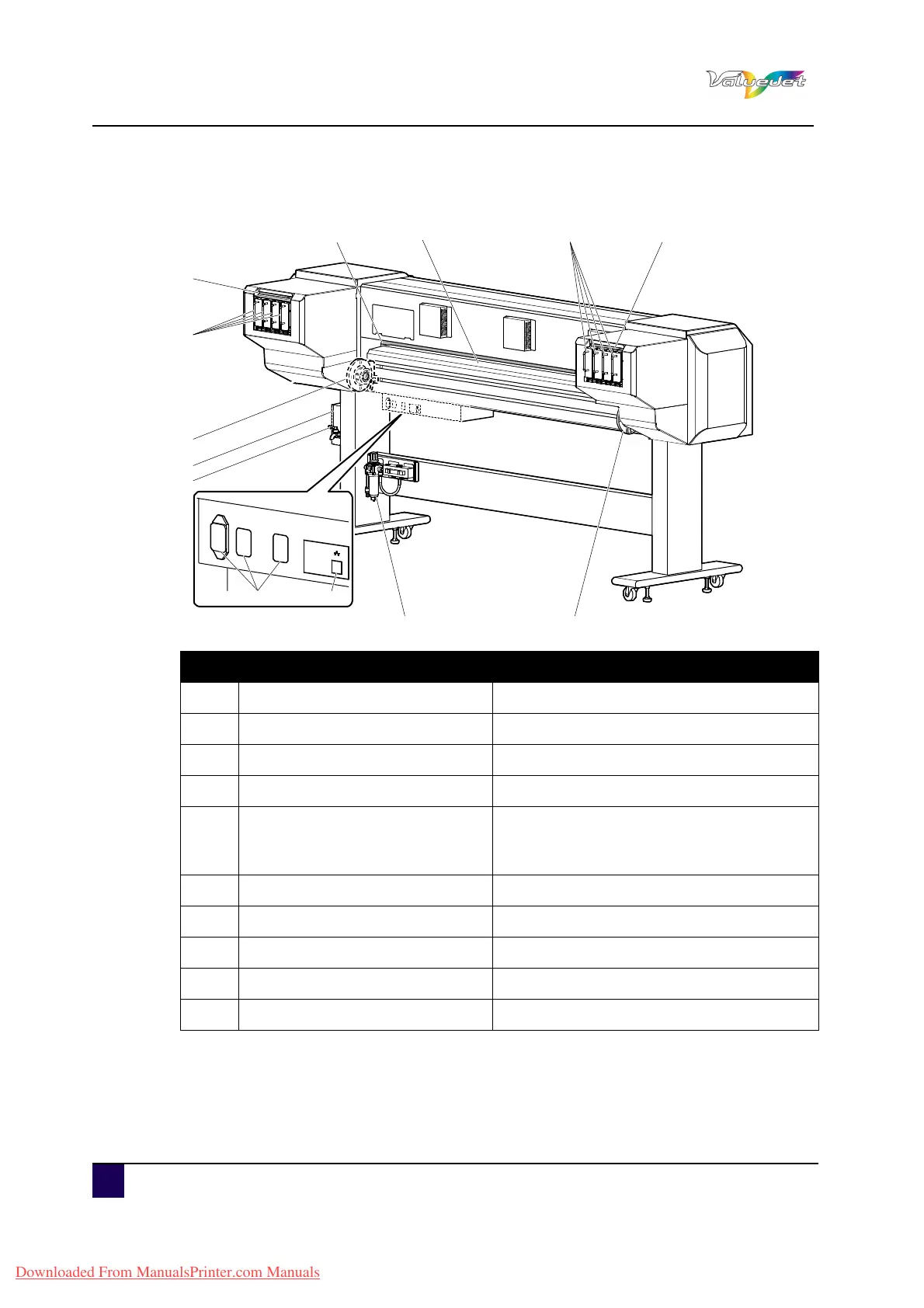

2.2.2 Rear section
5
4
1
10
8
9
6 7
1
3
2
43
N° Description Function
1 Roll media holders Used to load the roll media.
2 Media feed slot Used to feed media
3 Ink bag slot Slot that holds the ink bag
4 S/C card slot Slot that holds the S/C card
5 Media guide
Used to feed the media smoothly through.
The media guide incorporates the heater
system.
6 AC inlet Used to connect the power cables
7 Network interface connector Connects a network interface cable
8 Waste fluid tank To collect the discharged waste ink.
9 Waste fluid valve Open and close when discharging waste fluid.
10 Solenoid valve unit Controls the flow to the air heater.
