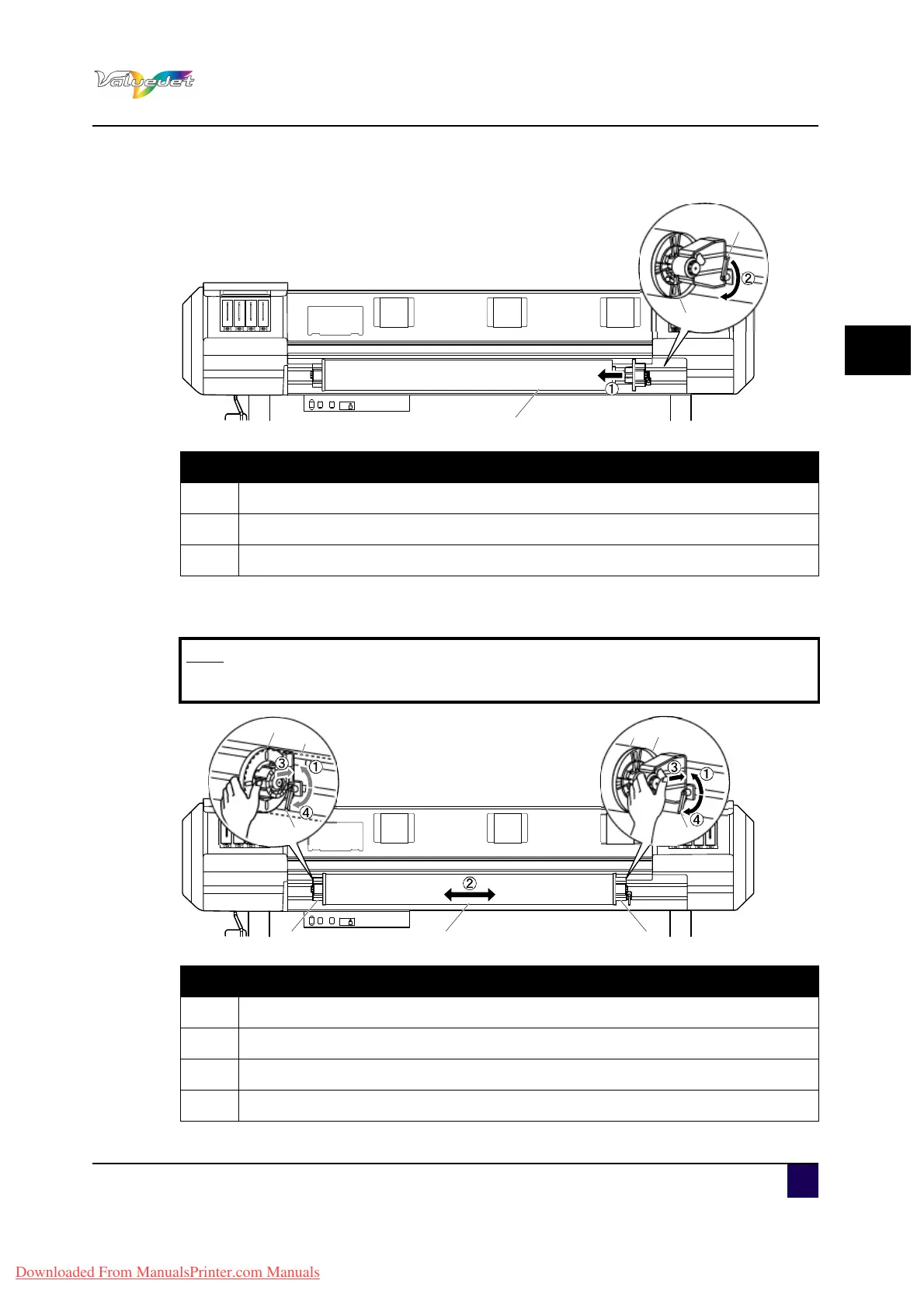

Step 4: Set the roll media to the right roll media holder and fix the fixing lever.
Step 5: Loosen both the right and left fixing levers of the media holders, move the roll media
to the centre and tighten the levers.
1
3
2
N° Description
1 Right roll media holder
2 Roll media
3 Fixing lever
Note
 Press the holders to the printer to fix the roll media holders.
2
3
31 2
1
3
4 4
N° Description
1 Left roll media holder
2 Right roll media holder
3 Roll media
4 Fixing lever
