Product overview VJ-1324X OPERATION MANUAL
24 2.2 Names of parts and functions

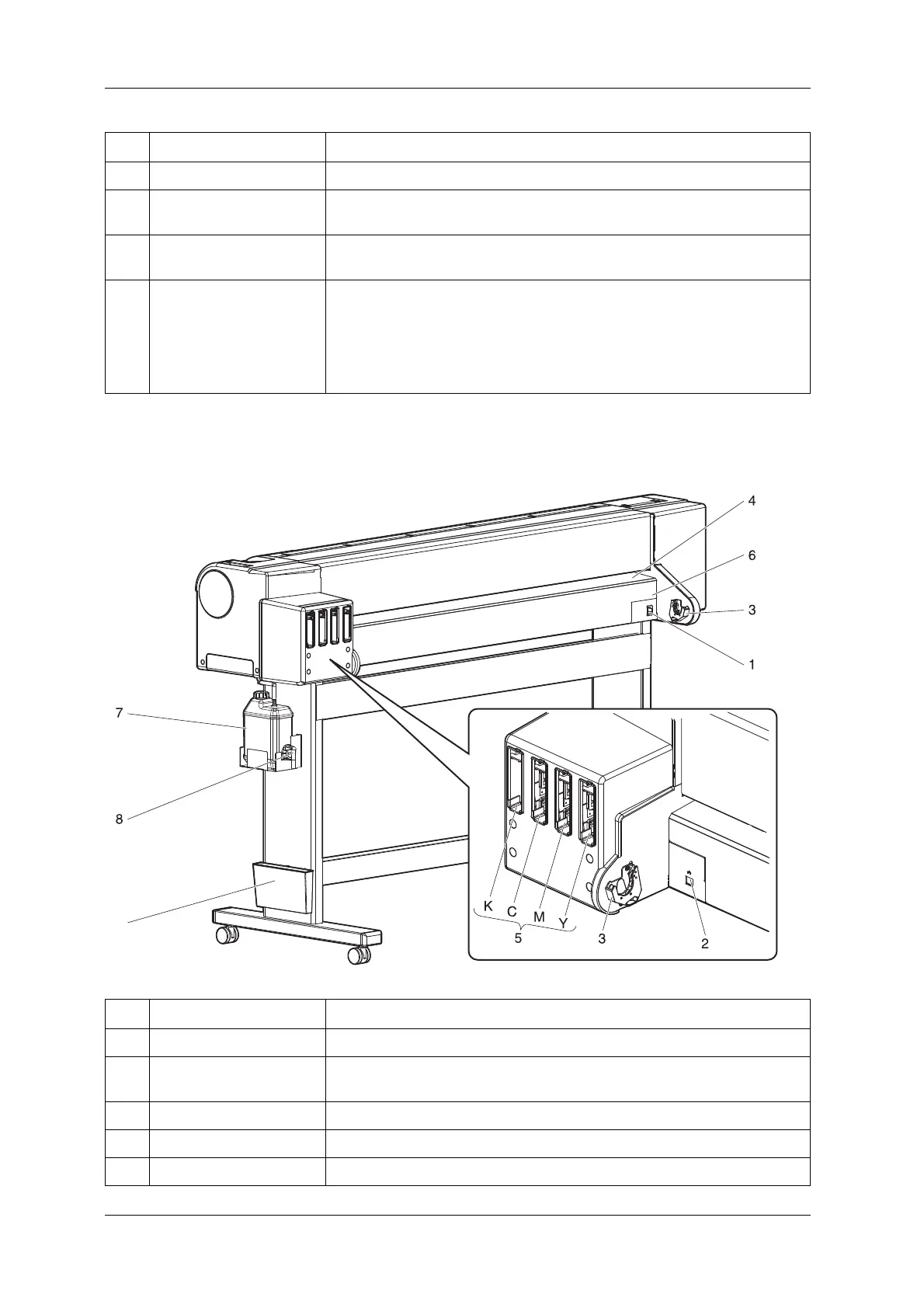

2.2.2 Rear section
6 Media cut groove Used to cut media straight.
7 Pressurizing rollers Installed inside of the front cover.
Press and hold the media when printing.
8 Platen Installed inside of the front cover.
Stabilizes the print side of the media.
9 Maintenance cover Used to prevent the user from touching the inner mechanical section.
Open and close in the following cases.
• When cleaning the cleaning wiper
• When cleaning around the print head.
• When replacing the cutter
It is normally closed.
No. Name Function
1 AC inlet Used for connecting the power cable.
2 Network interface cable
connector
Connects a network interface cable.
3 Scroller holder Set the scroller here when using the roll media.
4 Media feed slot Used for feeding media.
5 Ink cartridge slot Insert the ink cartridge.
No. Name Function
To Next Page
