Before using VJ-1324X OPERATION MANUAL
54 3.4 Loading media

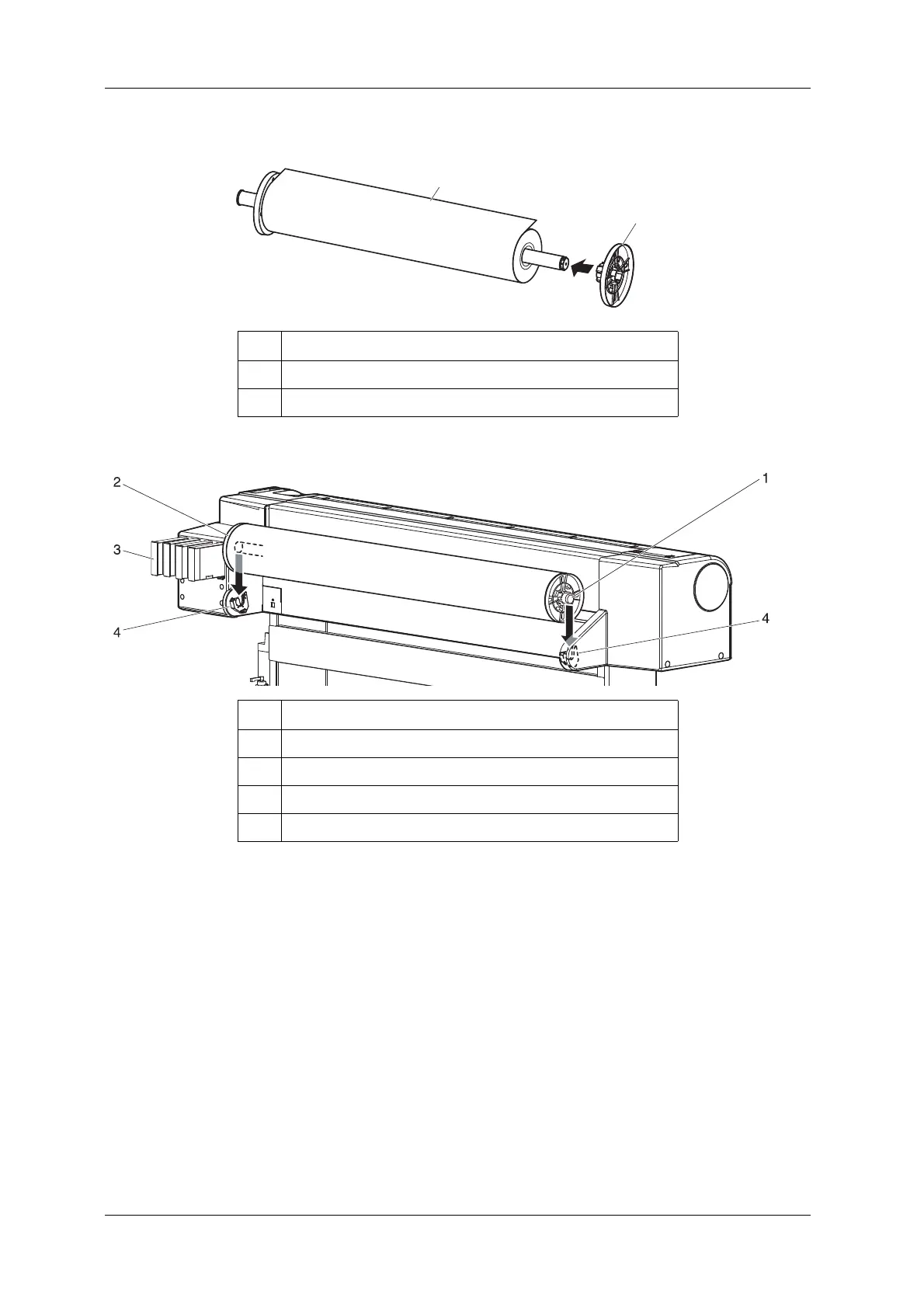

4. Attach the movable media stopper firmly to the core of the roll media.
5. Set the scroller on the holder with the fixed media stopper on the ink cartridge slot side.
No. Name
1 Movable media stopper
2 Roll media
No. Name
1 Scroller
2 Fixed media stopper
3 Ink cartridge slots
4 Scroller holder
2
1
