74 3.6 Adjust Print
• A confirmation pattern for print quality adjustment is printed.
(Starts printing after warming up is complete.)
• After the confirmation pattern is printed, Operation panel returns to “Adj. 1: Confirm Ptn”.
4. Confirm that the confirmation pattern printing result is as follows.
a. When the printing result is Adequate;
You do not need perform print quality adjustment.
The procedure for print quality adjustment is complete.
b. When the printing result is Not adequate;
You need to perform print quality adjustment.
• Perform rough adjustment when the misalignment is large.
3.6.1.2 Standard Rough Adjustment Pattern
• Perform micro adjustment when the misalignment is small.
3.6.1.3 Standard Micro Adjustment Pattern
Q3/Q4
B
Pattern name
Current Print Mode
Q3/Q4
B

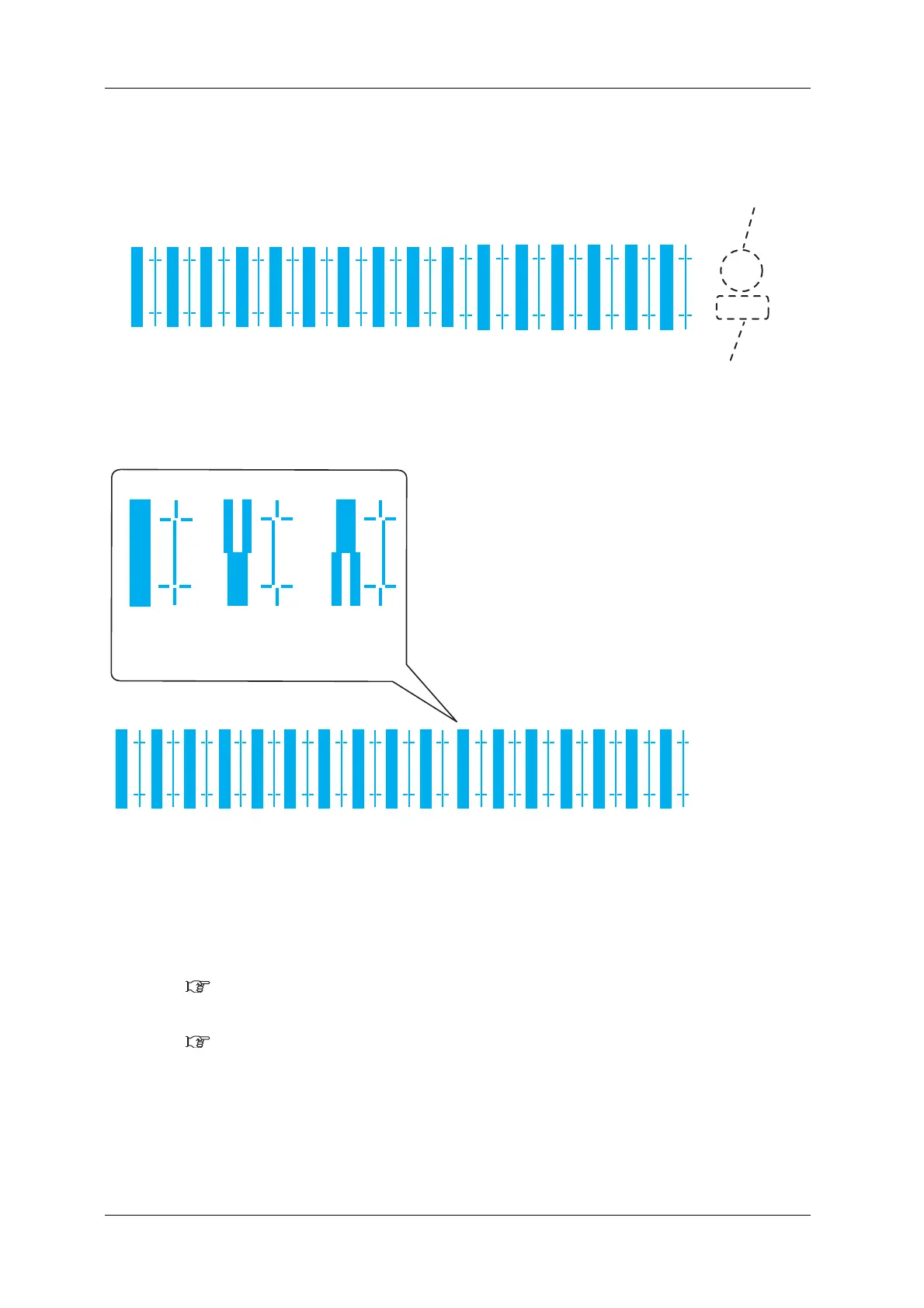

Adequate Not adequate Not adequate
To Next Page
