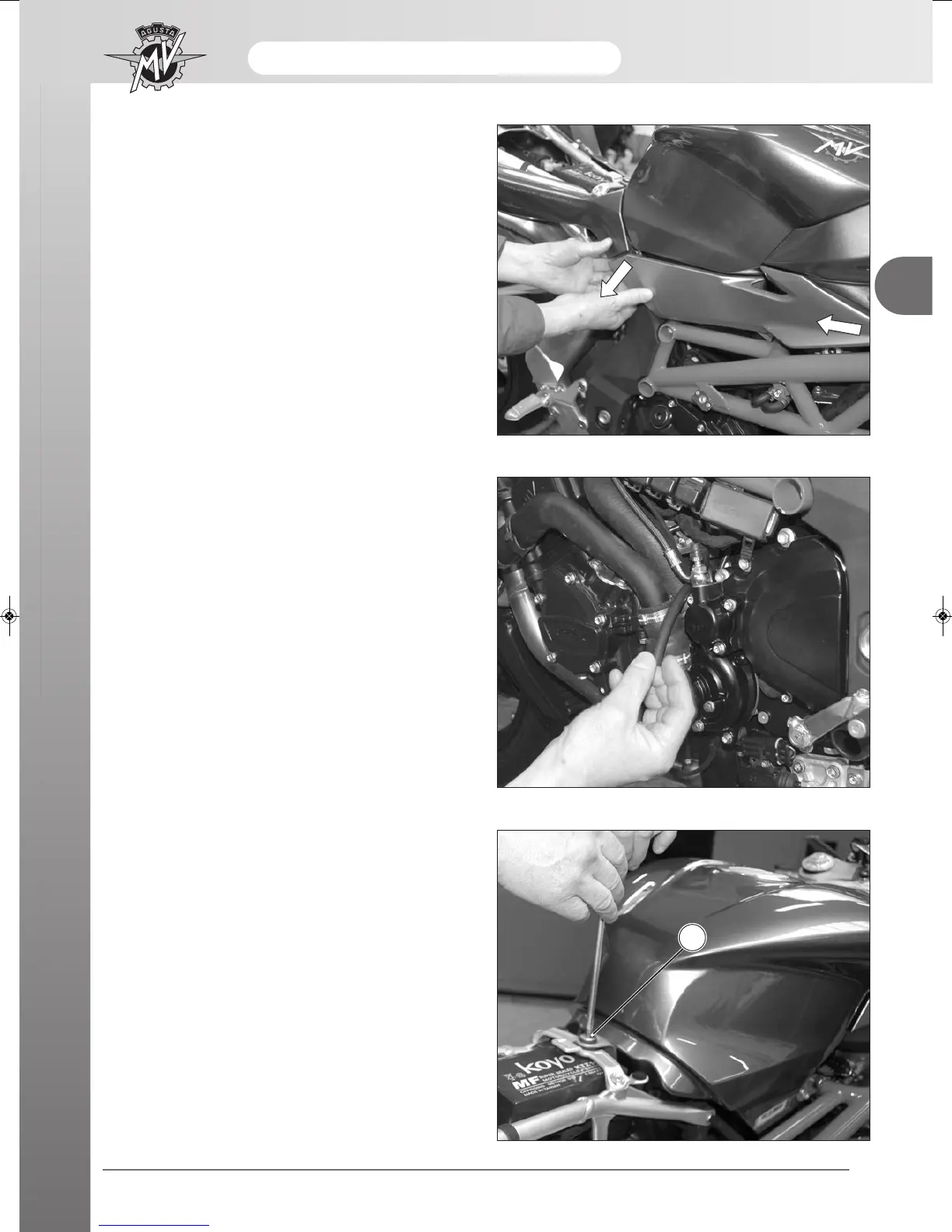

Side fairing removal
Extract the left and right side fairing support as indicat-
ed in the figure.
Extract the rear part of the support first (A) then grad-
ually withdraw the support from its front seat fixing (B).
- 13 -
C
Remove the vent tube.
Fuel tank removal
Remove the rear fixing screw of the fuel tank (1).
A
B
1
