Electrical system
- 43 -
E

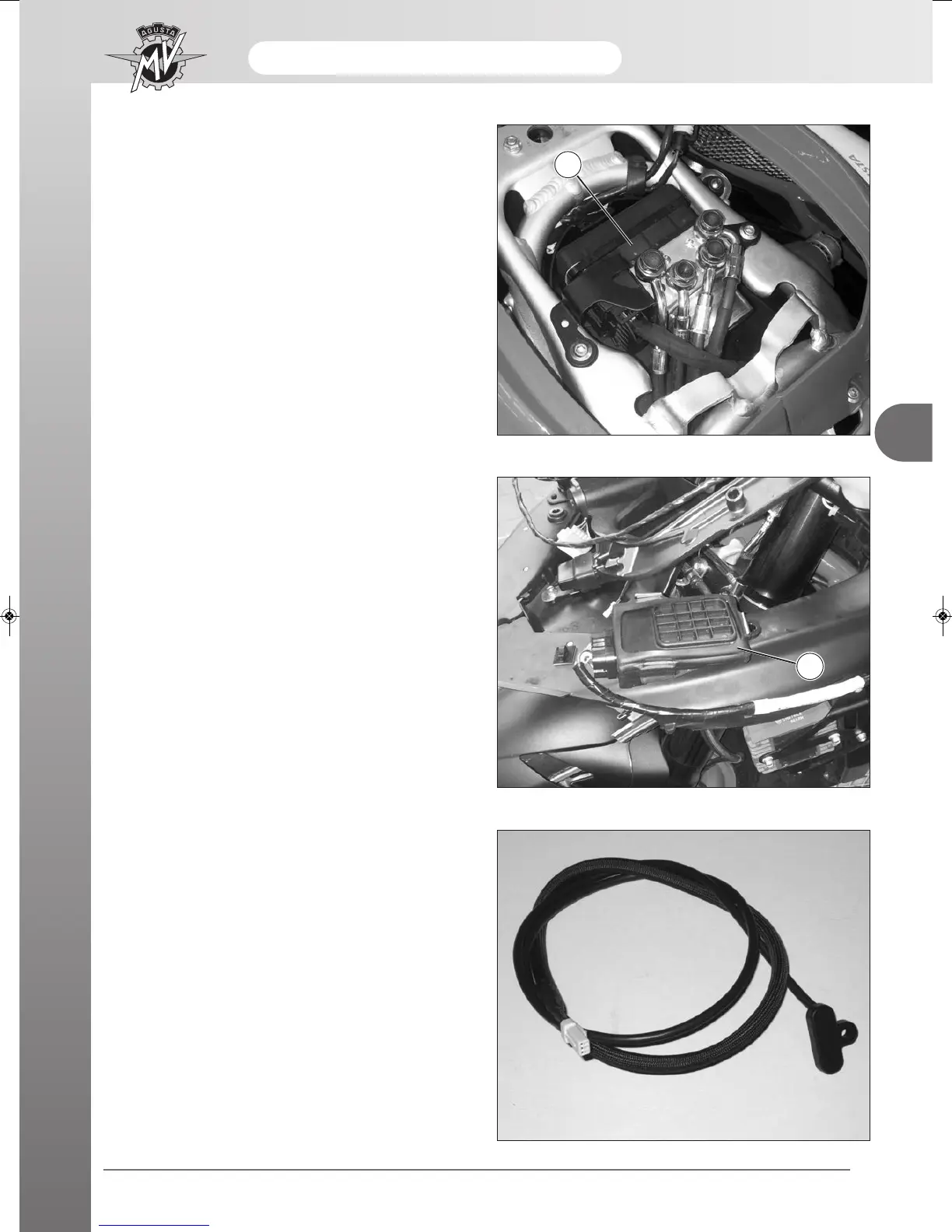

ABS* UNIT (MY13)
The unit of the ABS system (1) is placed under the pas-
senger’s saddle.
(*): This function is present only on certain models
1
ELECTRONIC SUSPENSIONS UNIT
(F4 RR MY13)
The unit for the management of the electronic suspen-
sions (2) is placed on the left intake duct.
2
SPEED SENSOR
Whenever the speed is not indicated on the dashboard
and the message SPEED SENSOR appears, proceed
as follows:
• Check the conditions of the fuse in position 1 on the
fuse box.
If the above fuse is in good condition, proceed with the
check of the speed sensor as follows:
Keeping the sensor connected to the system and with
the key in the ON position, using a tester, check that
when the sensor is positioned in front of one of the nuts
of the brake disk, between terminal 3 and terminal 2 of
the connector, the voltage is close to zero, whilst when
it is not placed in front of one of the nuts, the voltage is
close to that of the battery.
