- 38 -
Electrical system
E

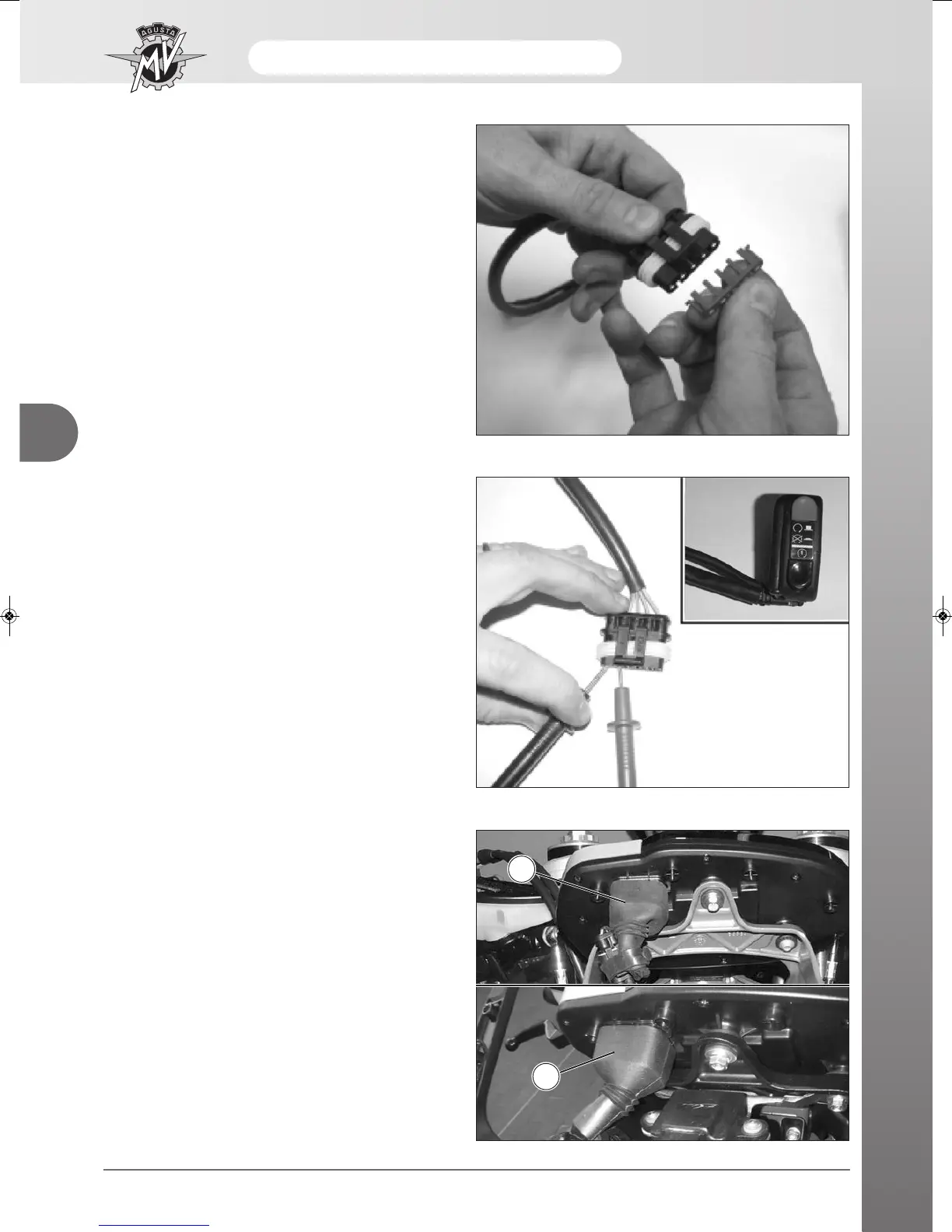

Remove the connector holding device.
With the switch in the “RUN” position, check the conti-
nuity between pins (5) and (2).
INSTRUMENTATION
If faults are found in the instrumentation, it is necessary
to check the main wiring and the various components
assisted by the same instrumentation. To carry out the
various checks after having removed the fairing side
panels and the nose fairing as described in chapter C
“Bodywork”, it is necessary to remove the rubber cap
(1) and then the connector situated behind the instru-
mentation.
1
1
F4 MY10 -> MY12
F4 MY13
