Suspension and wheels

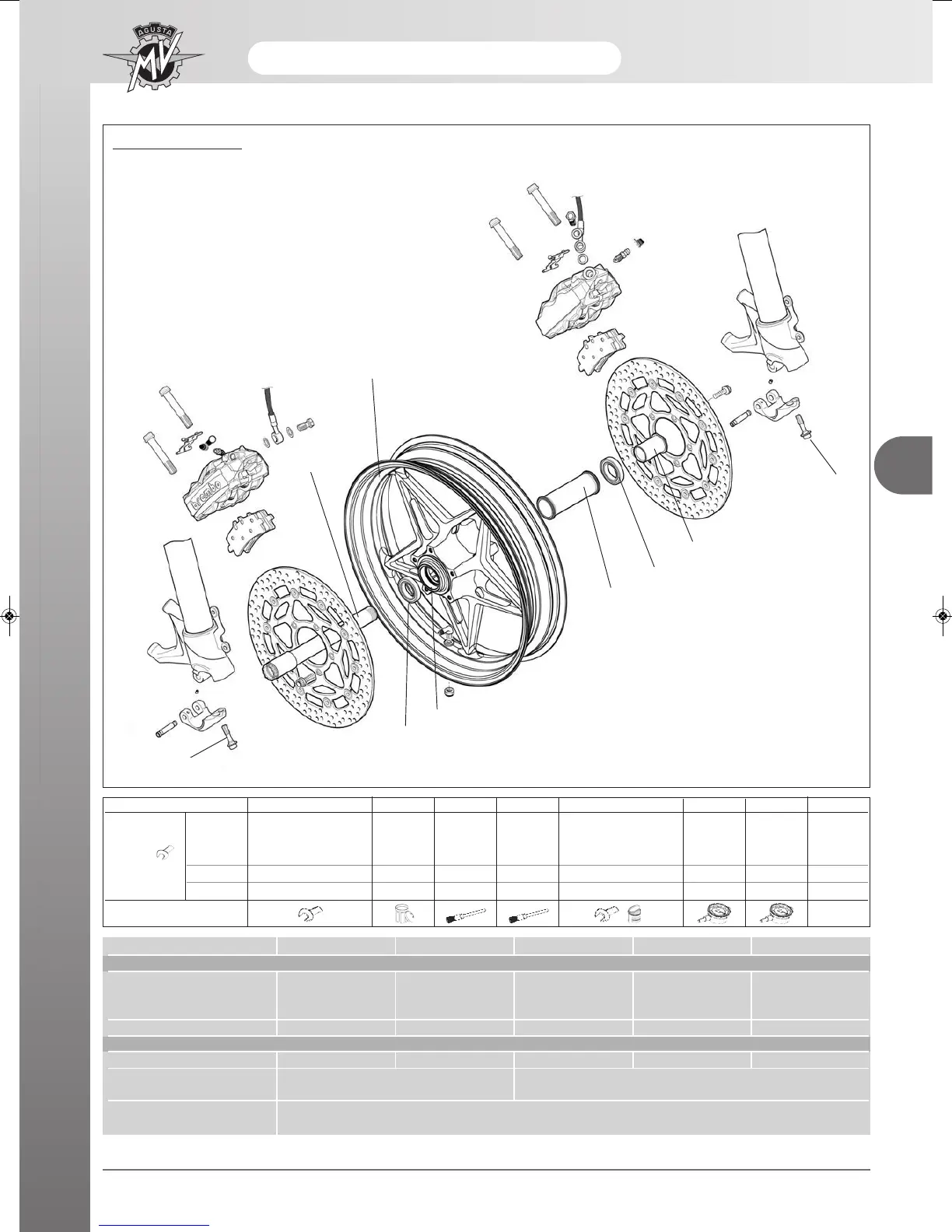

FRONT WHEEL
A
B
C
D
B
E
A
F
G
ABCD EFG
N· m 20 ÷ 22 (F4 S - FT 40 ÷ 44 (F4 S - FT
F4 R - F4 MY13) F4 R - F4 MY13)
19 (F4 RR) 60 ÷ 65 (F4 RR)
Kg· m
ft· lb
Torque
pressure
Operation
Description F4 S F4 Frecce Tricolori F4 MY13 F4 R F4 RR
FRONT WHEEL
Material
Forged
MY12: Aluminum alloy
Forged
Aluminium alloy
aluminum alloy
Aluminium alloy MY13: Forged
aluminum alloy
aluminum alloy
Dimensions 3,50” x 17” 3,50” x 17” 3,50” x 17” 3,50” x 17” 3,50” x 17”
FRONT TYRE
Dimensions 120/70-ZR 17 (58W) 120/70-ZR 17 (58W) 120/70-ZR 17 (58W) 120/70-ZR 17 (58W) 120/70-ZR 17 (58W)
Brand and type PIRELLI - Diablo Supercorsa SP
PIRELLI - Diablo Supercorsa SP
DUNLOP - Sport Max Qualifier RR
Front tyre pressure
At a speed lower than 300 km/h: 2.3 bar (33 psi)
At a speed higher than 300 km/h: 2.5 bar (36 psi)
