- 40 -
Electrical system
E
Having ascertained the good condition of the fuses in
question, proceed as follows:

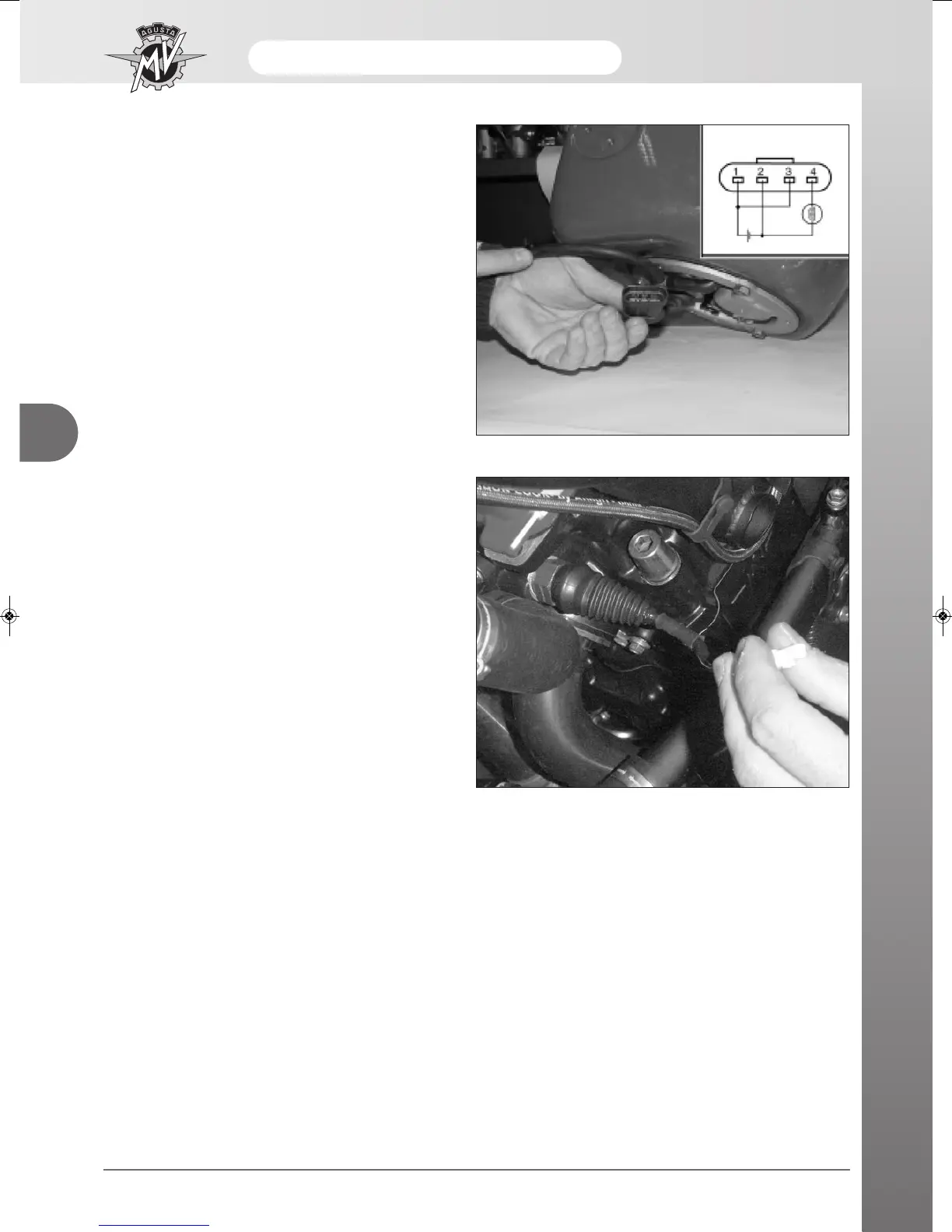

With the fuel tank removed from the motorcycle and
empty of fuel, connect a small circuit composed of 12V
battery and a light bulb of 12V – 1.7W to the connector
of the fuel level indicator as shown in the diagram.
If the switch is in a good condition, the light bulb should
light up after several seconds.
Pour some fuel into the fuel tank and confirm that the
light bulb switches off after having poured more fuel
into the tank than the maximum required for the reser-
ve.
WATER SENSOR
Verify sensor operation by measuring resistance
between the pin by means of a tester.
MY10 -> MY12:
TEMP. °C RESIST. kΩ TEMP. °C RESIST. kΩ
- 40 100,950 + 40 1,598
- 30 53,100 + 50 1,150
- 20 29,121 + 60 0,746
- 10 16,599 + 70 0,565
0 9,750 + 80 0,377
+ 10 5,970 + 90 0,275
+ 20 3,747 + 100 0,204
+ 25 3,000 + 110 0,153
+ 30 2,547 + 125 0,102
MY13:
Ub = 5 V +/- 10%
Rv = 2000
Ω +/- 1%
TEMP. °C RESIST. Ω TEMP. °C RESIST. Ω
- 40 104442,9 + 50 1016,9
- 30 53932,5 + 60 703,8
- 20 29050,7 + 70 496,7
- 10 16266,4 + 80 356,9
0 9439,2 + 90 260,7
+ 10 5661,8 + 100 193,3
+ 20 3501,9 + 110 145,6
+ 30 2264,5 + 120 111,1
+ 40 1500,7 + 125 97,5
