MV Agusta F4 S - Frame Control Reference Measurements (F4 R - F4 My13)

- 38 -
Frame
G

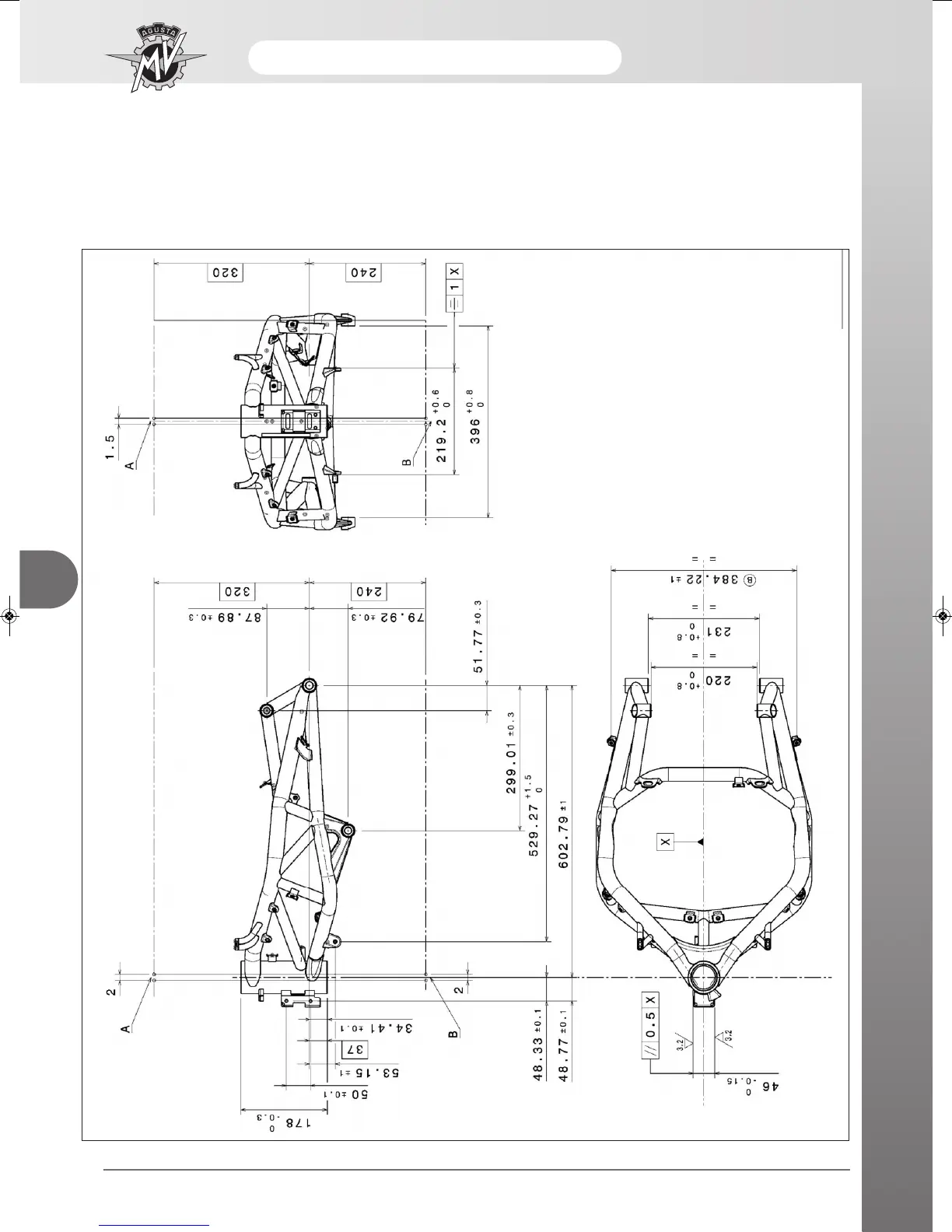

FRAME CONTROL REFERENCE MEASUREMENTS
(F4 R - F4 MY13)
To carry out a detailed check of the frame, herewith
below are the reference measurements that are of fun-
damental importance for the correct condition of the
frame.
