MV Agusta F4 S - Frame Disassembly

Frame
- 33 -
G

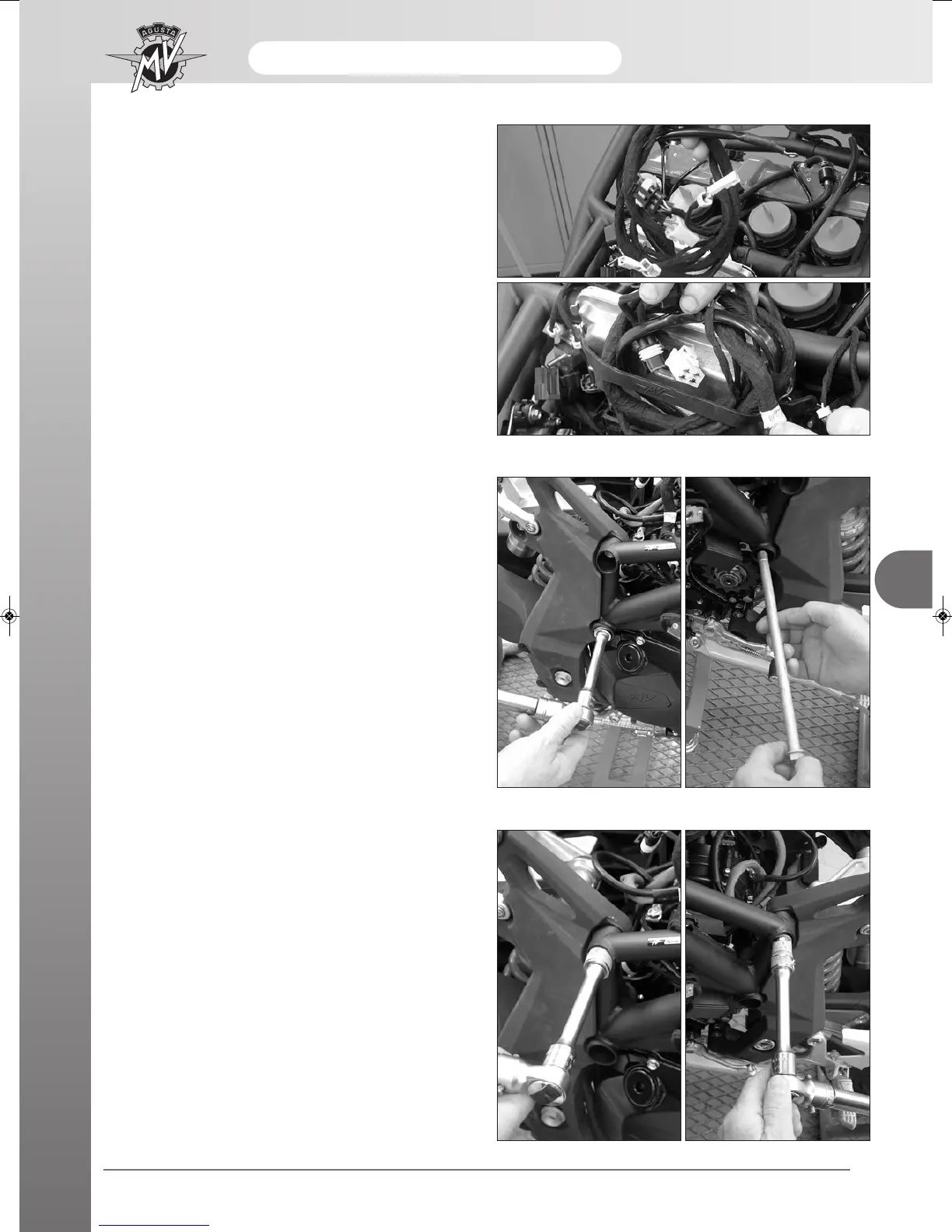

Wind the wiring and fasten it on the control unit fixing
clamp.
FRAME DISASSEMBLY
Unscrew and remove the right lower rear fixing nut
from the frame. Remove the spindle from the left side
of the frame.
Unscrew and remove the upper rear fixing screws from
both sides of the frame.
