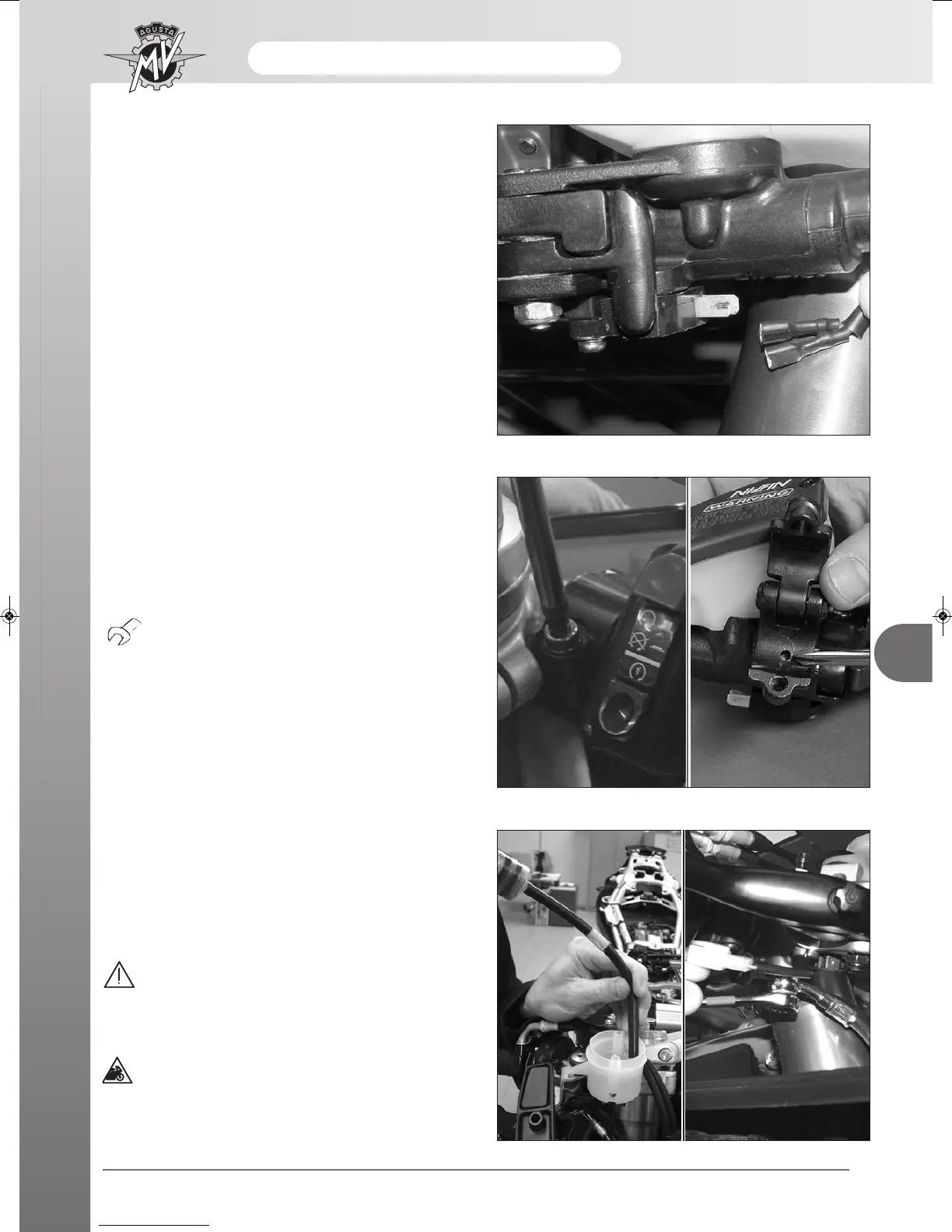

Remove the connectors of the electrical system.
Remove the fixing screw that fixes the pump to the
handlebar.
Open the clamp.
Push down to remove the pump from the reference pin.
When reassembling the pump, fix and tighten the fixing
screw at the prescribed torque.
Torque pressure: 6÷8 Nm
Brakes
- 15 -
H
FRONT BRAKE PUMP REMOVAL
(F4 RR)
Remove the cap from the front brake fluid reservoir
and drain the reservoir with a syringe.
Remove the union shown in the figure.
Brake fluid is extremely corrosive.
Avoid contact with the eyes, skin and nose.
Wash abundantly with water and call a doc-
tor if accidental contact occurs.
During the following operations, avoid con-
tact with painted surfaces.
