Electrical system
E
POSITIONING OF ELECTRICAL SYSTEM WIRE CLAMPS (F4 MY10 -> MY12)
- 49 -
LIST OF FASTENING CLAMPS FOR F4 1000 ELECTRICAL SYSTEM CABLES
Code Qty. Length Name
800092248 11 L = 82 mm Rubber clamp L 82
800092247 13 L = 62 mm Rubber clamp L 62
800053724 5 L = 39 mm Rubber clamp L 39
800092668 1 L = 25 mm Rubber clamp L 25
800056783 2 L = 142 mm Plastic clamp for cables
8000B4425 1- Clamp

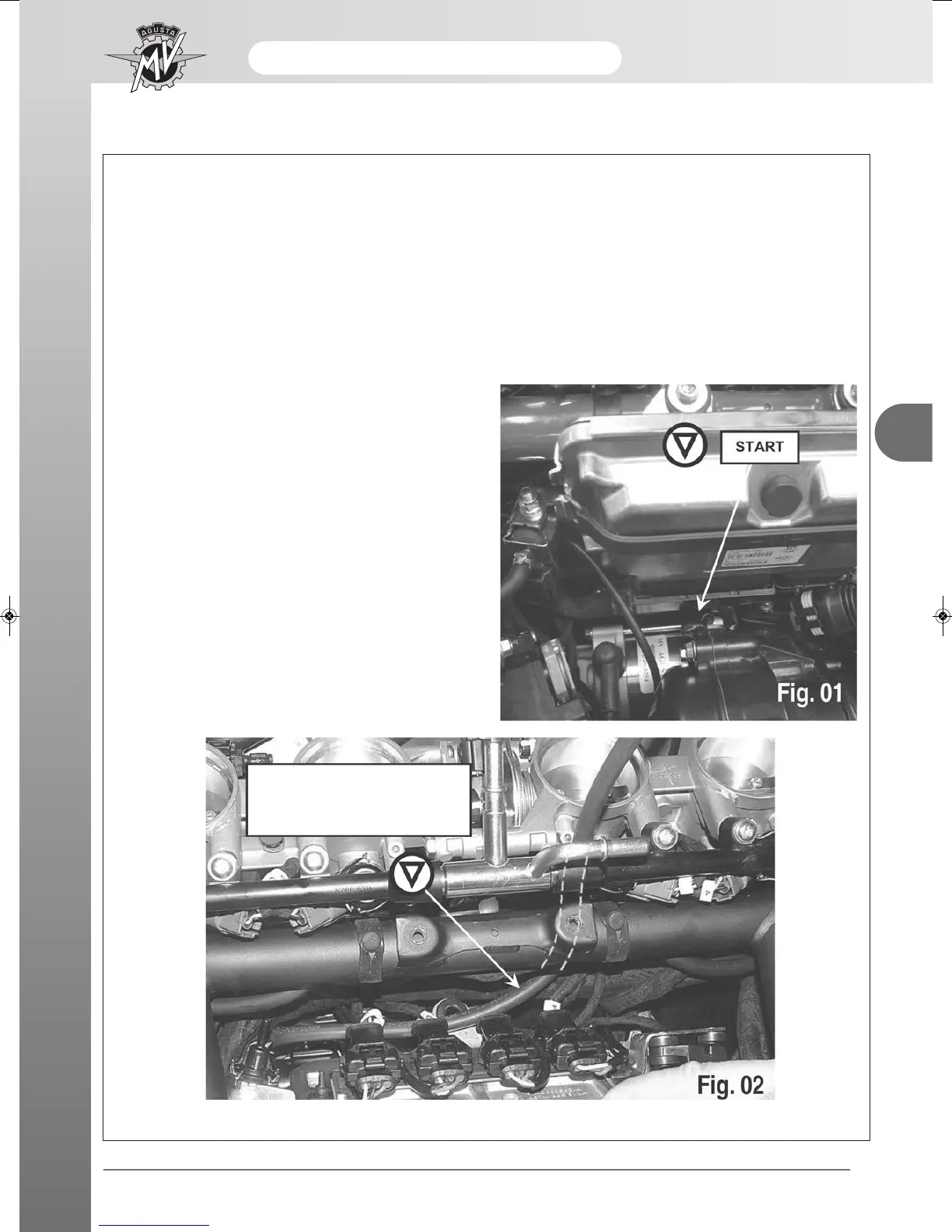

For correct positioning of the electrical wiring
on the motorcycle, first insert the main cable
connector on the injection control unit as
shown in fig. 01.
Before fastening the injection control unit in
its housing, position the Pierburg valve tube
as shown in Fig. 02.
Note: Be careful
to correctly pass
the Pierburg valve tube
