Electrical system
E
SIDE STAND SWITCH
The connector for the lateral stand switch is mounted
on a support under the pinion wheel transmission
casing on the left side of the motorcycle.
• Remove the left fairing.
• Disconnect the connector of the side stand switch.

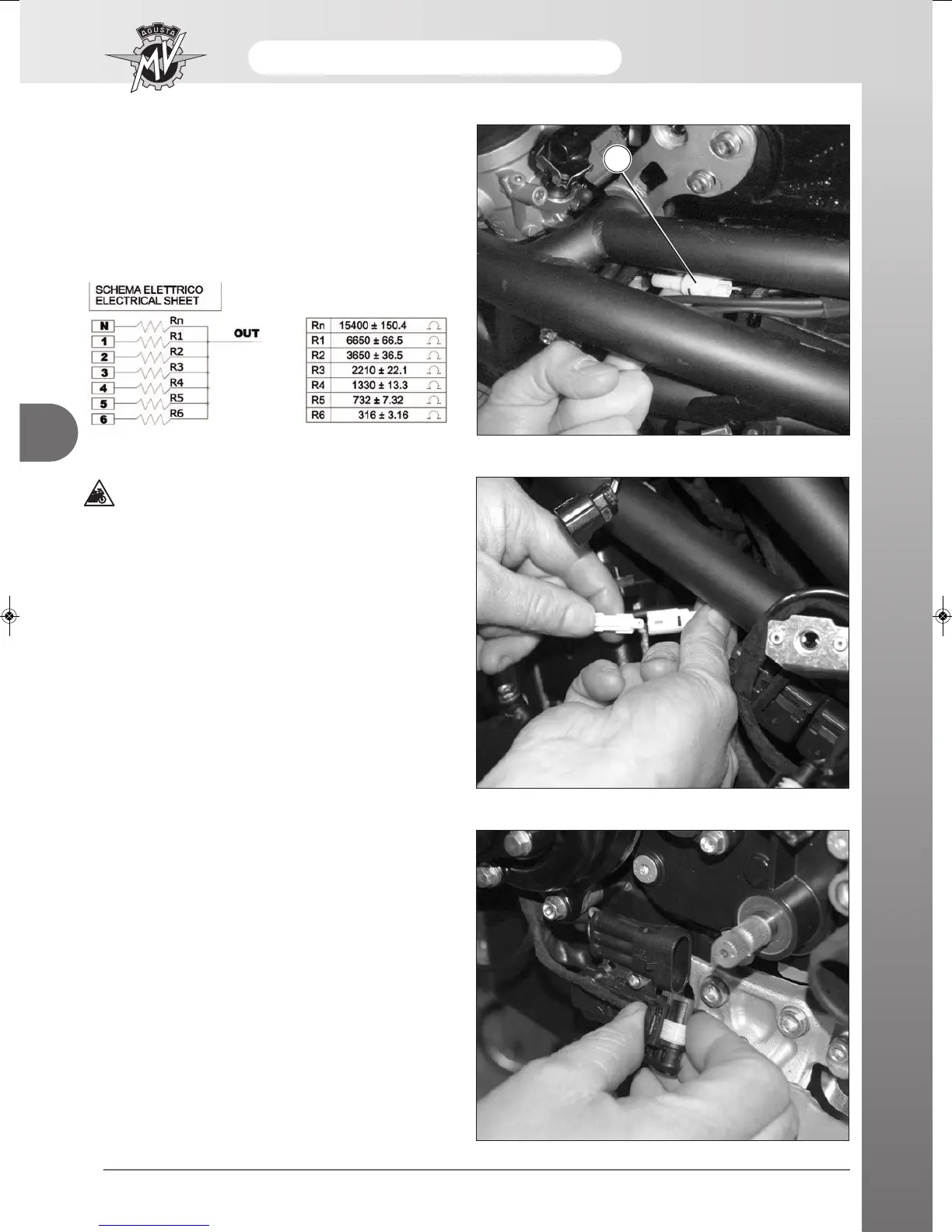

GEARCHANGE POSITION SWITCH
The connector (1) of the gear position sensor is loca-
ted on the left beneath the tank.
Disconnect the connector of the gear position switch
and check the resistance value, using a multitester, in
the six gears as well as the idle position, as shown in
the attached table.
When the connector of the gearchange posi-
tion switch is connected and disconnected,
be sure to turn the ignition switch to the
“OFF” position to avoid damaging the elec-
tronic parts.
