- 52 -
Maintenance
B
Maintenance
BRAKE/CLUTCH/GEARCHANGE COMMANDS CHECK
It is possible to effectuate the adjustment of the posi-
tion of the levers of the front brake, the clutch and also
the gearchange lever. Such adjustments have been
created to optimise the grip and the movement of the
commands with regards to the needs of the motorcy-
clist.
The commands of the motorcycle are initially calibrat-
ed to a standard position, but can be altered as follows.

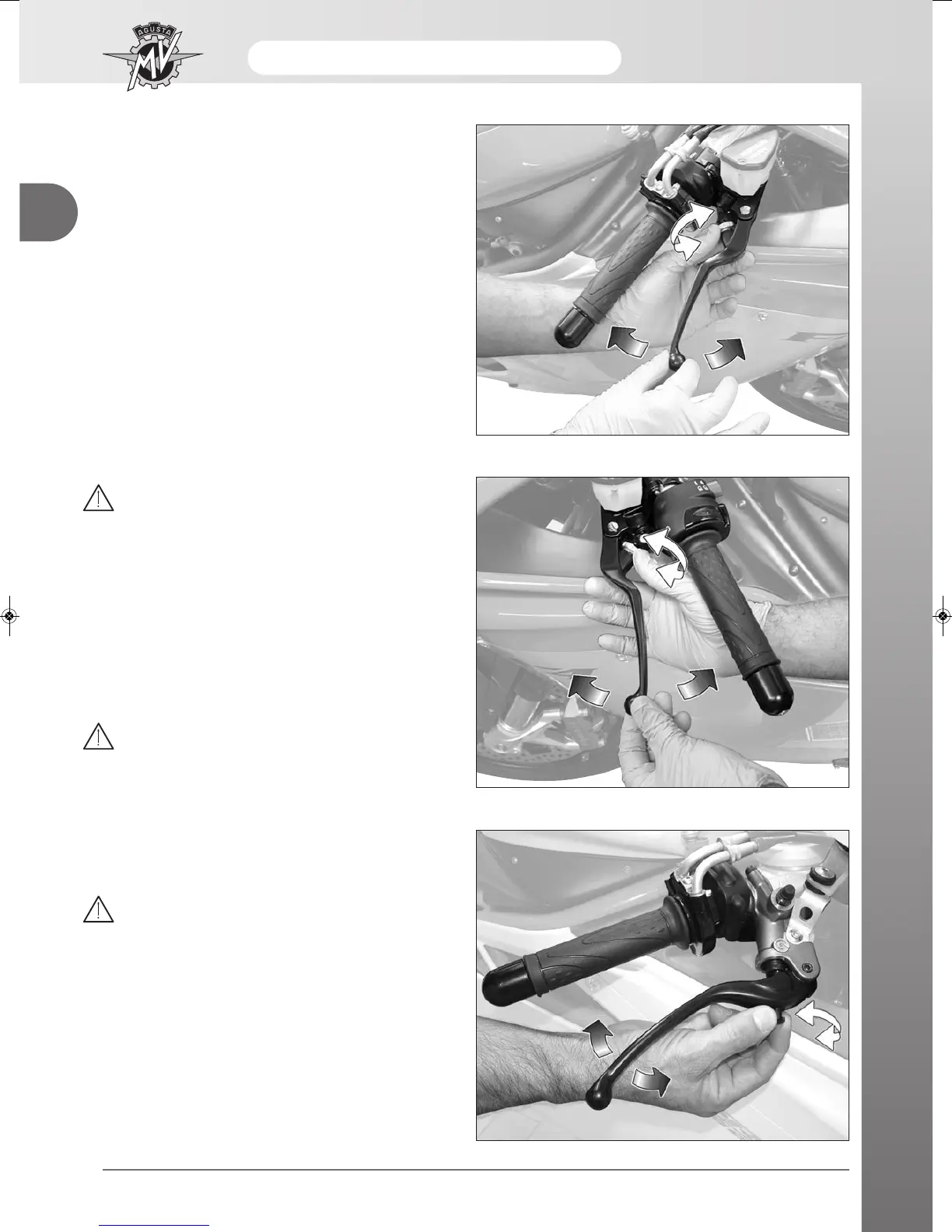

Front brake and clutch lever adjustment
(F4 S - F4 FT - F4 MY13 - F4 R)
Never carry out adjustments whilst riding
the motorcycle.
Pull the lever to neutralise the push of the spring and
at the same time, adjust the position by rotating the
ring in a clockwise or anti-clockwise direction.
In a clockwise direction: The lever goes further away
from the handgrip.
In an anti-clockwise direction: The lever comes closer
to the handgrip.
Whenever the command levers do not func-
tion correctly or have excessive play, con-
sult chapter H “Brakes” for the overhaul of
the same.
Front brake and clutch lever adjustment
(F4 RR)
Never carry out adjustments whilst riding
the motorcycle.
Turn the ring clockwise or counterclockwise to move
the lever away or towards the handgrip respectively.
In a clockwise direction: The lever goes further away
from the handgrip.
In an anti-clockwise direction: The lever comes closer
to the handgrip.
