Suspension and wheels
F
- 44 -

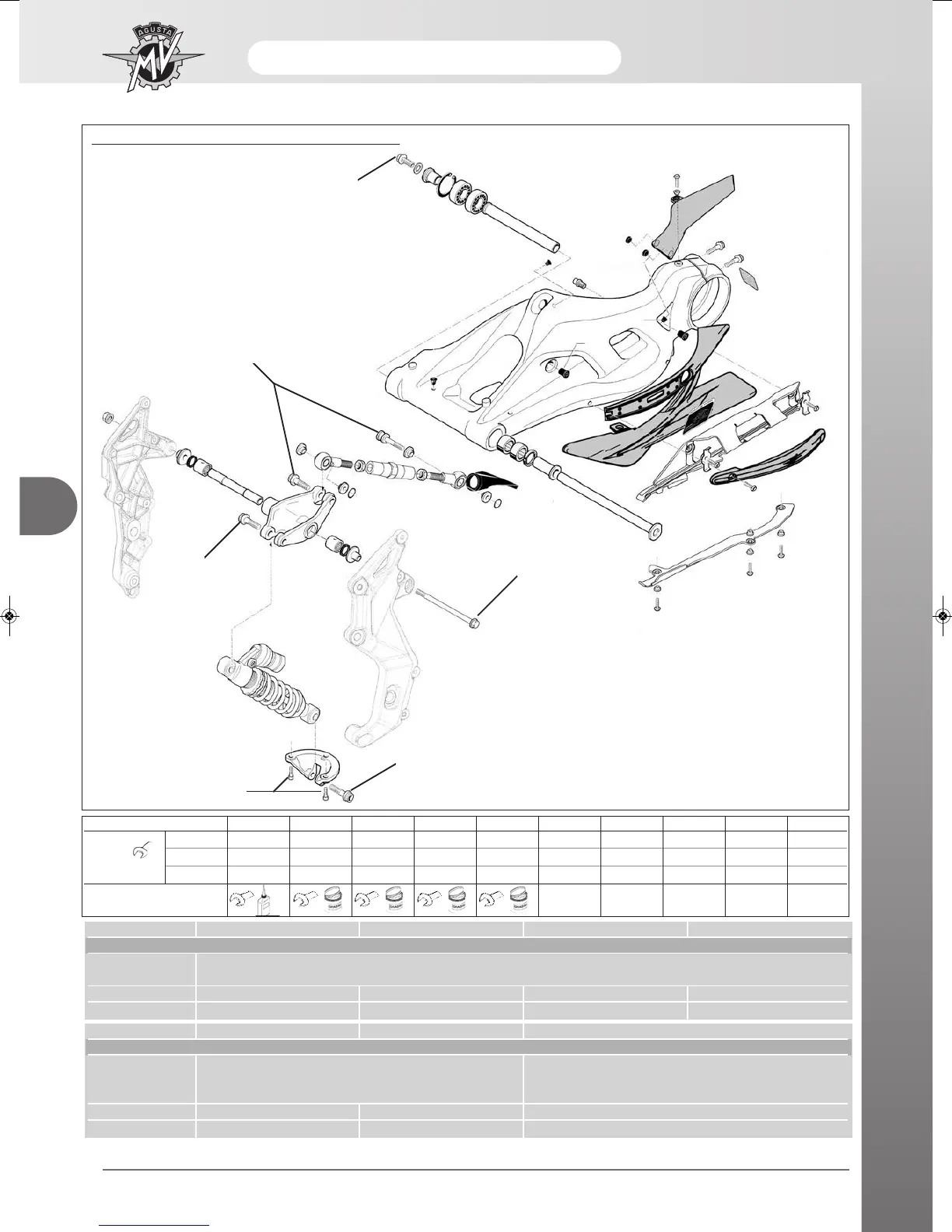

REAR SUSPENSION AND SWINGARM
ABCD E
N· m 40 ÷ 44 40 ÷ 44 40 ÷ 44 45 ÷ 50 70 ÷ 75
Kg· m
ft· lb
Torque
pressure
Operation
E
B
C
C
A
D
243
Description F4 RR MY12 F4 R MY13 F4 RR MY13
REAR SUSPENSION
Type Progressive, ÖHLINS TTX single shock absorber Progressive, ÖHLINS TTX single shock absorber with
with rebound-compression damping and electronic adjustment of rebound-compression
spring preload adjustment damping and of spring preload
Swingarm Aluminium alloy Aluminium alloy Aluminium alloy
Wheel travel (mm) 120 120 120
Description F4 S F4 Frecce Tricolori F4 R MY12 F4 MY13
REAR SUSPENSION
Type Progressive, single shock absorber with rebound-compression
(High speed / Low speed) damping and spring preload adjustment
Swingarm Aluminium alloy Aluminium alloy Aluminium alloy Aluminium alloy
Wheel travel (mm) 120 120 120 120
During the disassembly and check of the rear suspension assembly, it is advisable to disassemble the under-
engine fairing, fairing side panels, tail unit and fuel tank as described in chapter C "Bodywork".
