MV Agusta F4 S - Rear Brake System

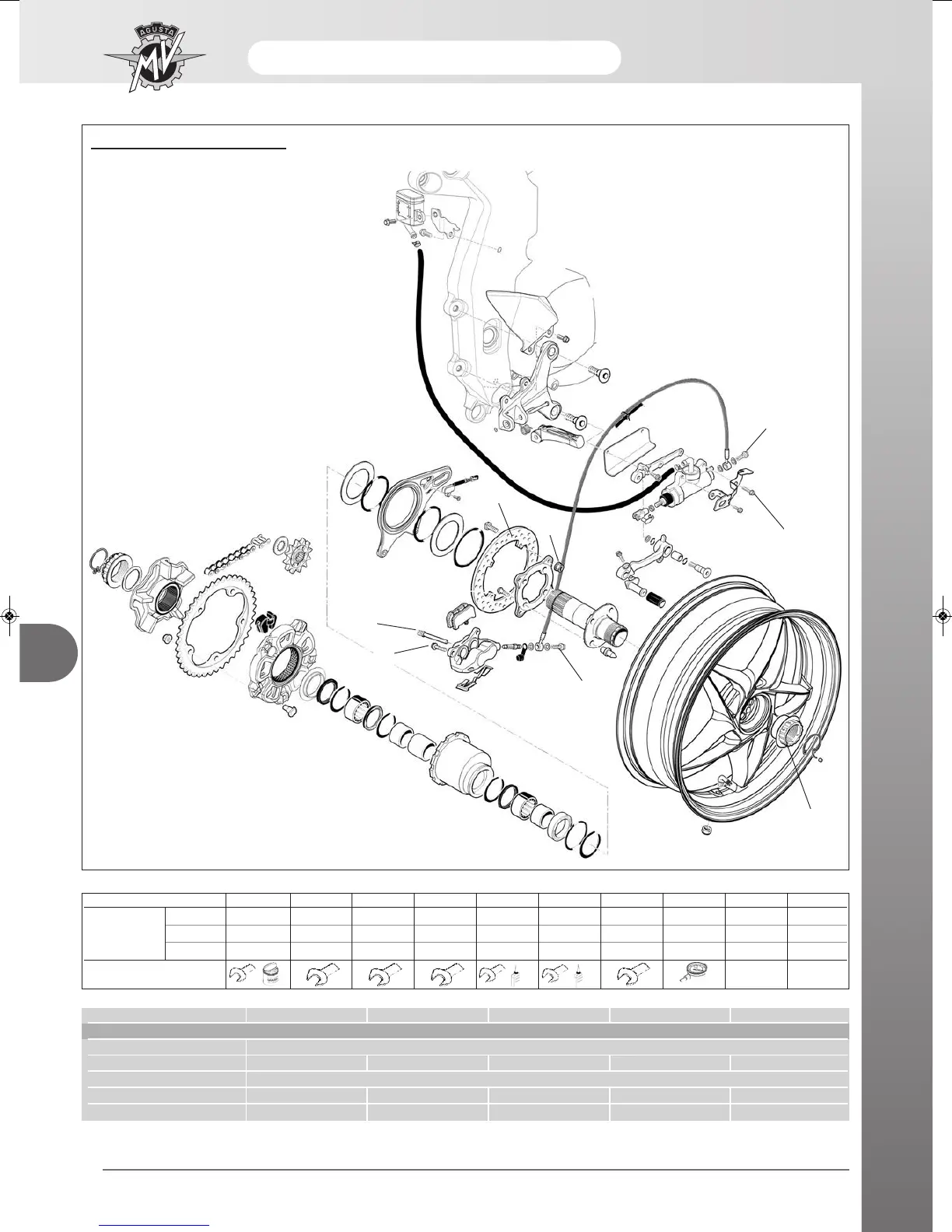

REAR BRAKE SYSTEM
- 24 -
Brakes
H
B
E
A
C
F
G
ABCDEFGH
N·m 220 ÷ 240 15 ÷ 20 16 ÷ 18 8 ÷ 10 18 18 ÷ 20 16 ÷ 18
Kg·m
ft·lb
Torque
pressure
Operation
D
H
243
270
Description F4 S F4 Frecce Tricolori F4 MY13 F4 R F4 RR
REAR BRAKE
Type Single steel disc
Ø disc (mm) 210 210 210 210 210
Caliper (Ø pistons mm) With 4 pistons (Ø 25.4)
Rear disc thickness (mm) 66666
Min. pads thickness (mm) 11111
