Suspension and wheels
F
- 85 -

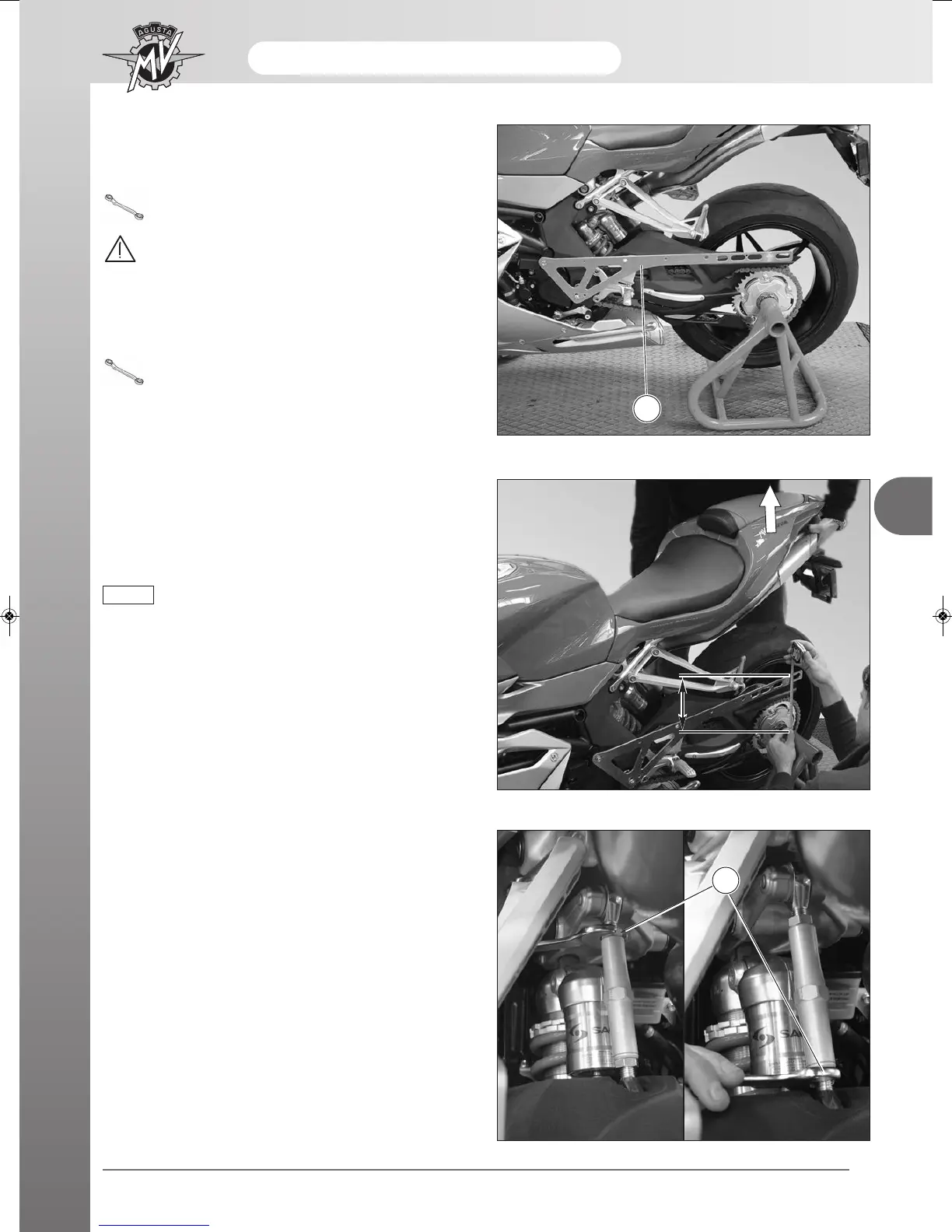

MOTORCYCLE SET-UP ADJUSTMENT
Place the motorcycle on the rear stand.
Special tool no. 800092642
WARNING: The following adjustments must
be made when the fuel tank is full.
Insert the setting-up arm (1) of the rear suspension
(special tool) in its appropriate seats as shown in the
figure.
Special tool no. 8000B4413
1
Raise the rear part of the motorcycle until the full
extension of the rear shock absorber is reached.
Contemporaneously measure the distance X
1
between
the upper extremity of the rear stand and the point on
the setting-up arm shown in the figure.
Two persons must carry out this opera-
tion.
Check that dimension X1 is equal to:
- F4 S / FT / R MY12 / F4 MY13: X
1
= 218 mm
- F4 RR MY12 / F4 R MY13: X
1
= 222 mm
- F4 RR MY13: X
1
= 225 mm
X
1
NOTE
Should X
1
be different from the reference dimension,
loosen rear suspension half linkage fixing counternuts
(2).
2
