Frame
G

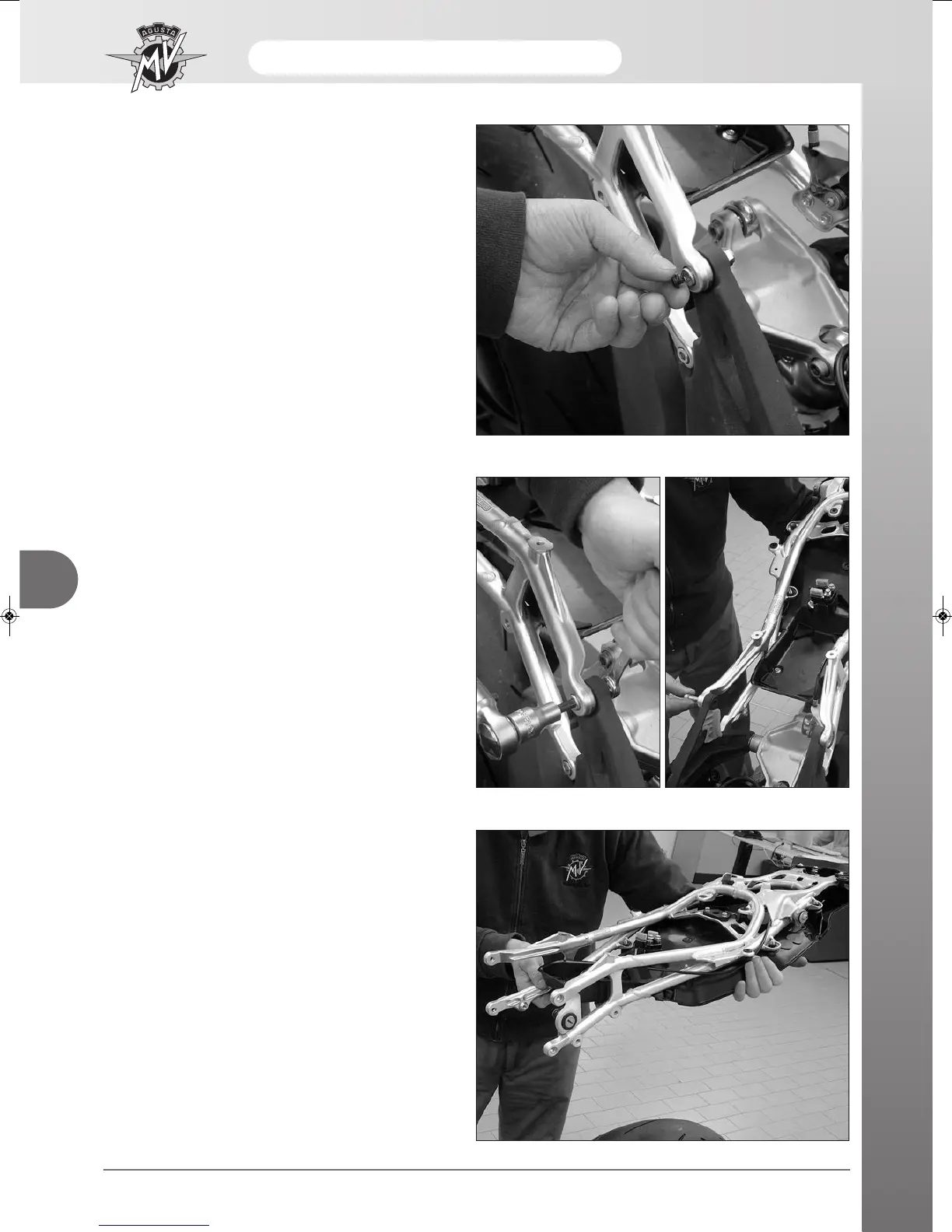

REAR FRAME DISASSEMBLY
Remove the rubber caps from the upper fixing screws
on the rear frame.
Remove the four frame fixing screws.
Hold the frame up before removing the last screw.
Remove the rear frame from the vehicle.
