Frame
- 37 -
G

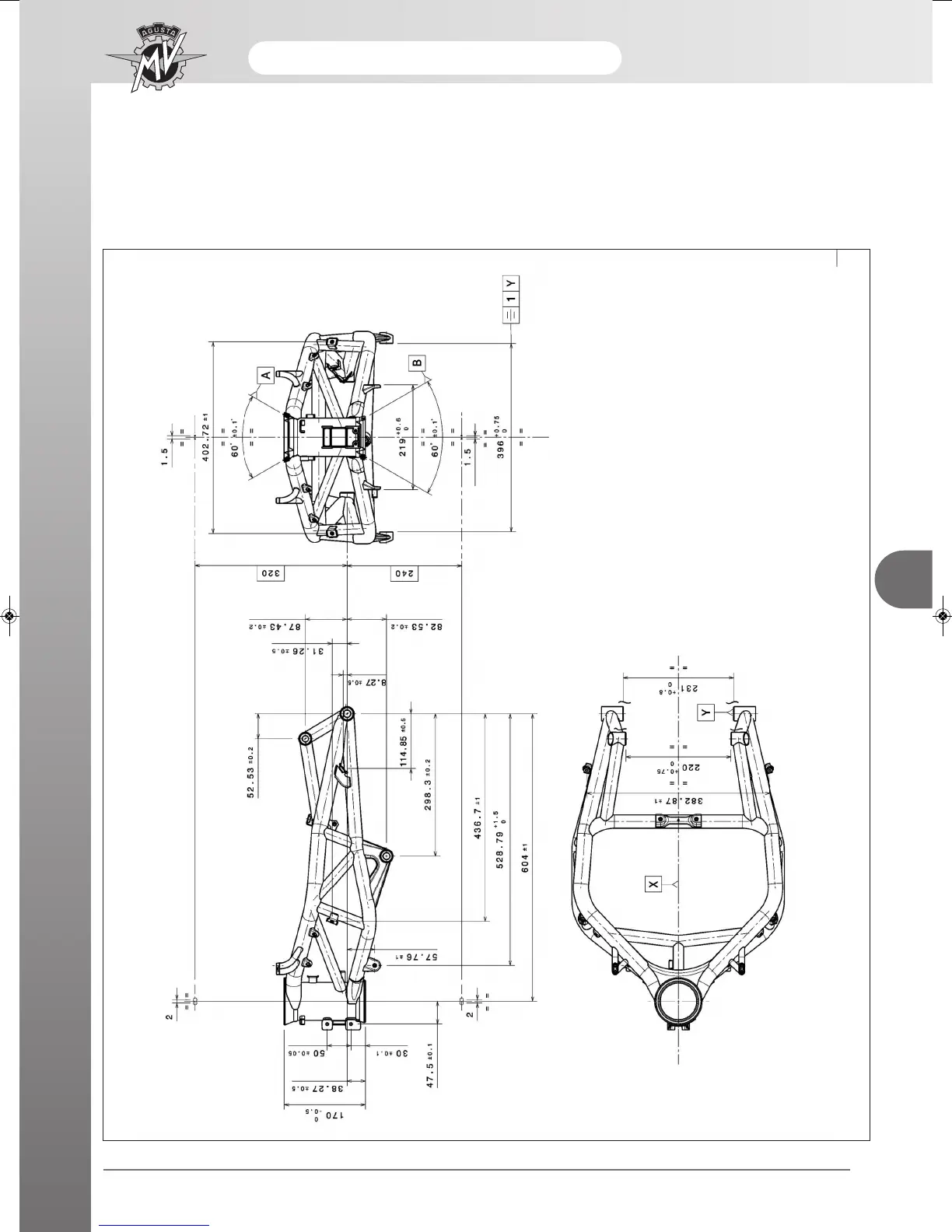

FRAME CONTROL REFERENCE MEASUREMENTS
(F4 S - FT - RR)
To carry out a detailed check of the frame, herewith
below are the reference measurements that are of fun-
damental importance for the correct condition of the
frame.
