Electrical system
- 33 -
E

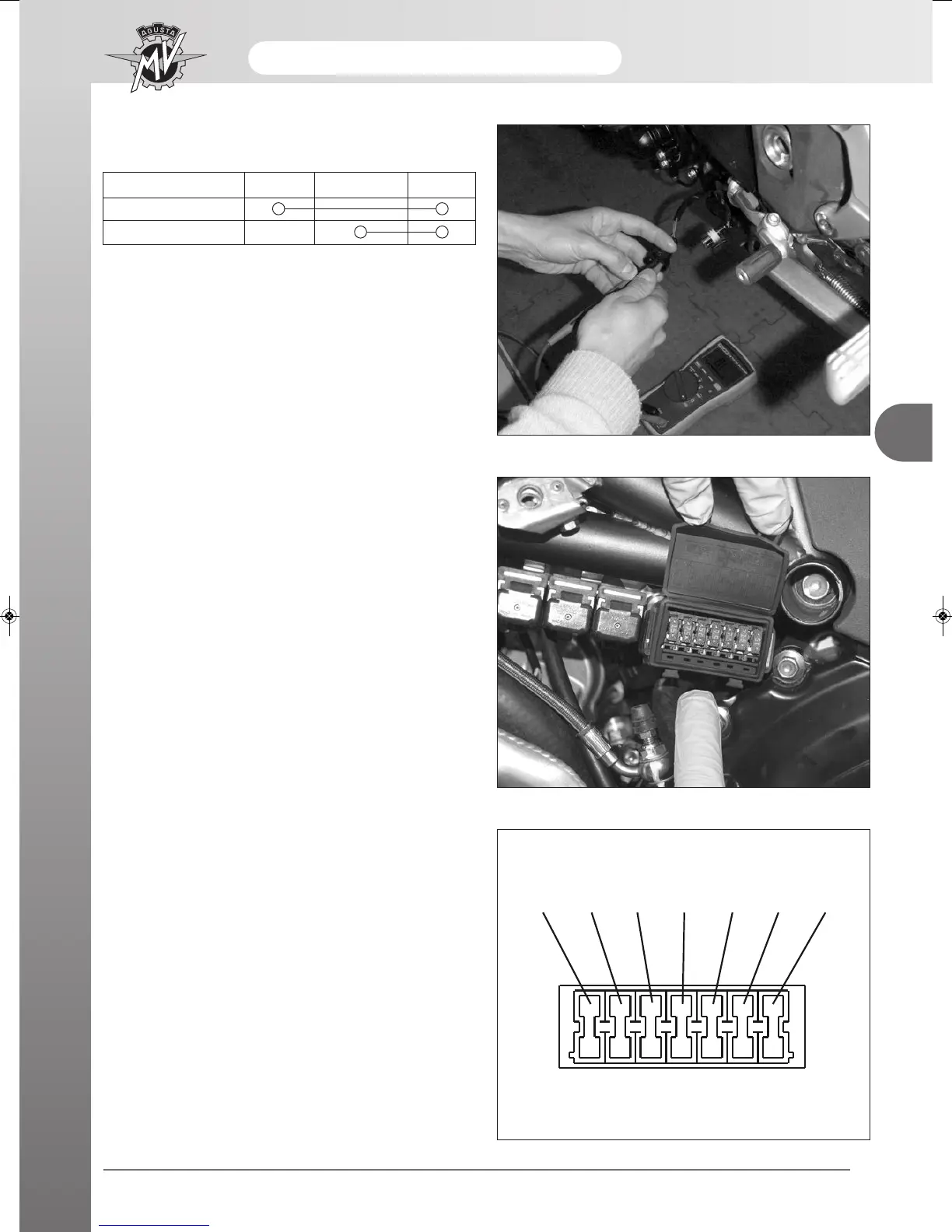

Utilising a multi-tester, check the continuity as indica-
ted in the table.
Green Brown Black
ON (Raised)
OFF (Lowered)
After the tests described above, whenever it is neces-
sary to replace the switch, proceed as indicated in
chapter B Maintenance.
FUSES
The fuses are situated on the left side of the motorcy-
cle.
Lift the rubber cover.
15A
7.5A
15A
F1 F2 F3 F4 F5 F6 F7
15A
7.5A
15A
15A
Replace the burnt fuse with the provided tweezers and
then close the cover back up.
To identify the position and function of fuses, consult
information contained in the manual and in the wiring
diagram.
