Suspension and wheels
F
- 12 -

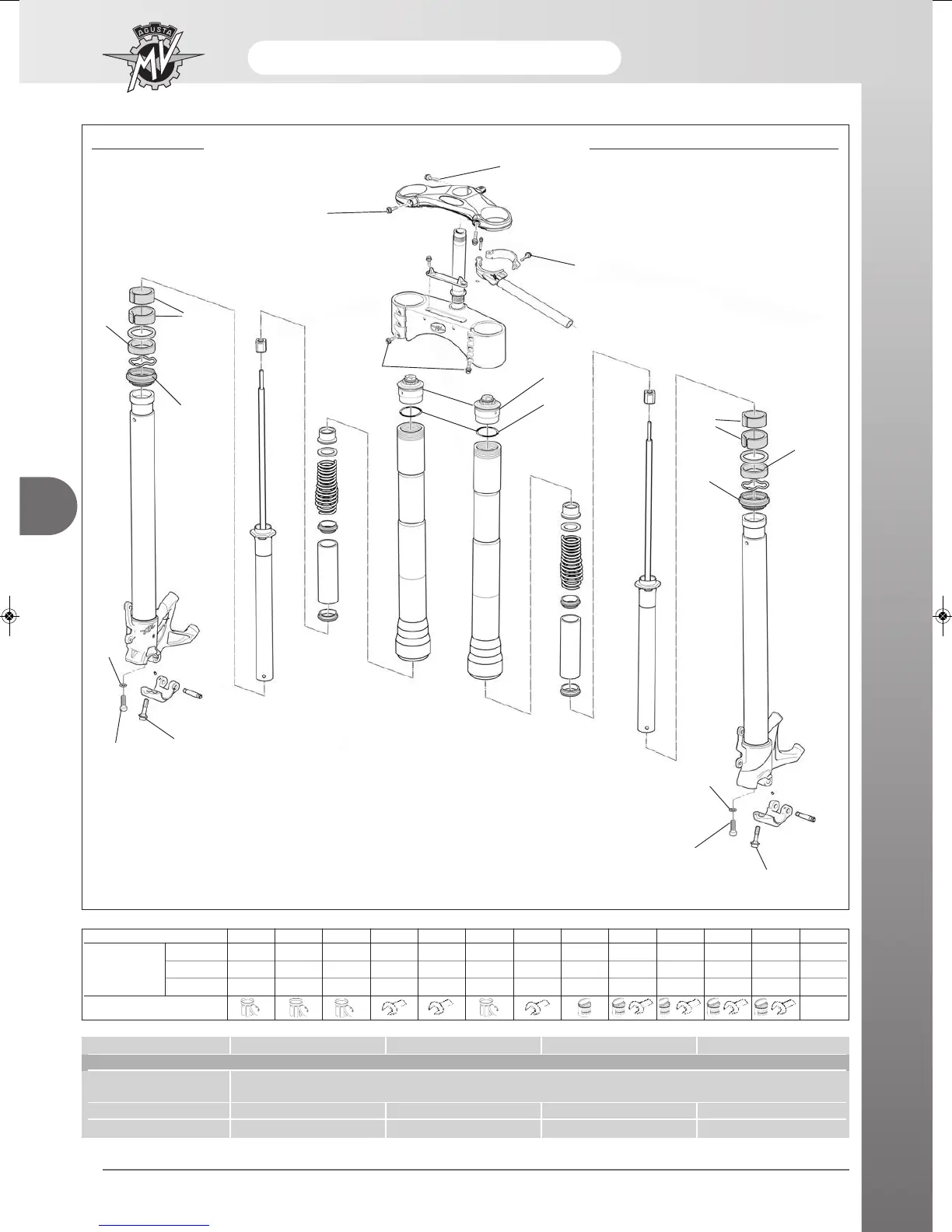

FRONT FORK
A BCD E FGH I L MN
N· m 40 20 ÷ 22 20 8 ÷ 10 8÷9 16 ÷ 18 22 ÷ 24
Kg· m
ft· lb
Torque
pressure
Operation
B
A
D
C
B
A
L
I
M
N
F
G
D
C
E
E
H
H
(F4 S - F4 FT - F4 R - F4 MY13)
Description F4 S F4 Frecce Tricolori F4 R F4 MY13
FRONT SUSPENSION
Type “Upside down” telescopic hydraulic fork with external and separated
adjustment of rebound and compression damping and of spring preload
Ø stems (mm) 50 50 50 50
Travel on legs axis (mm) 120 120 120 120
