THROTTLE BODY REMOVAL
(MY10 -> MY12)

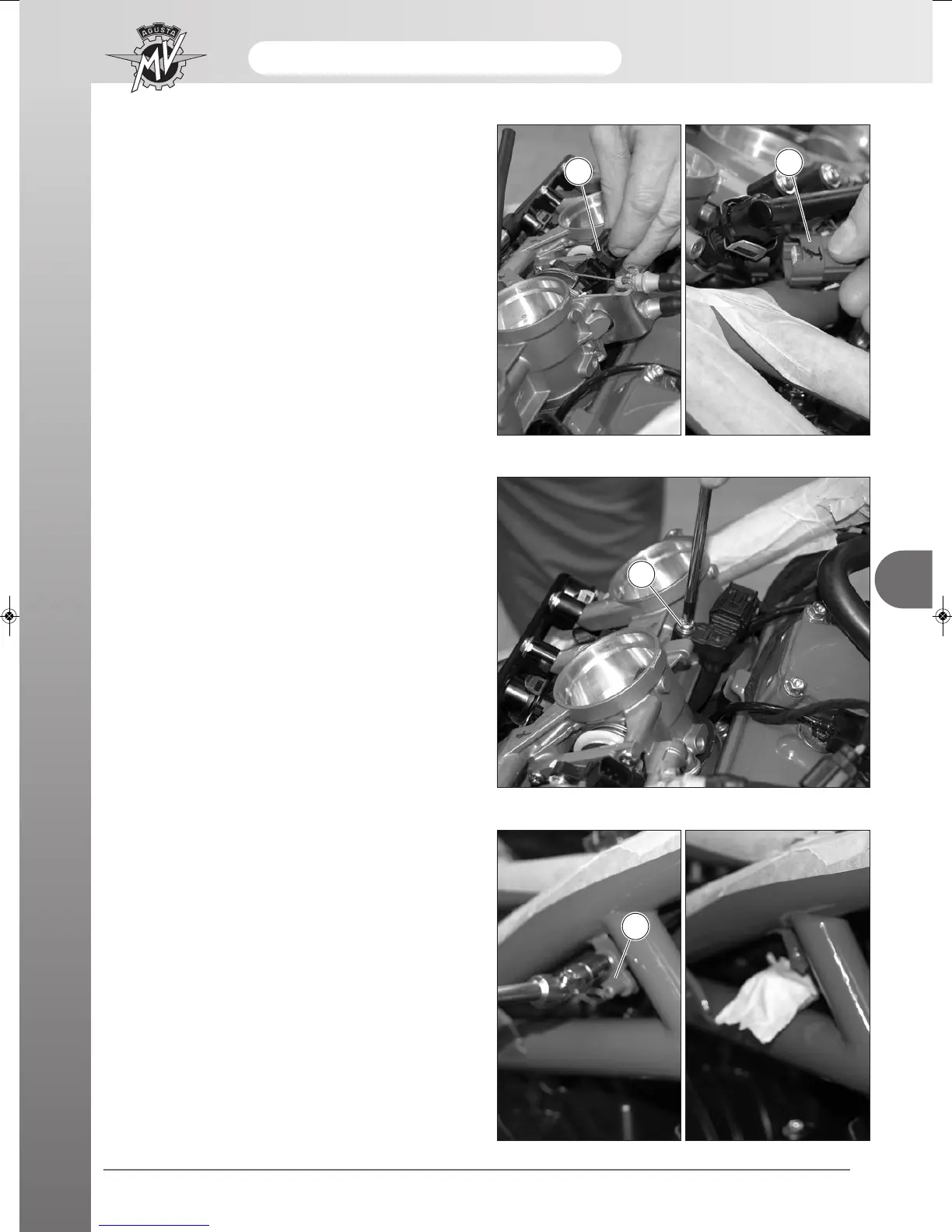

Remove the electrical connectors on the injectors (1)
and on the potentiometer (2).
Remove the phase sensor fixing screw (3).
Remove the frame vacuum gauge sockets (4) on both
sides of the vehicle and recover with adhesive tape.
4
1
2
3
