- 28 -
Maintenance
B
Maintenance
FUEL FILTERS
Check and substitute
g Every 12.000 km
For the checking or substitution of the engine intake
system filters (fuel filter, fuel pump filter), it is neces-
sary to remove in sequence the following parts:
• Fuel tank side panels
• Driver and passenger seat
• Rear side panels
• Fuel tank
NOTE: Consult chapter C “Bodywork”.
Carry out the following operation.

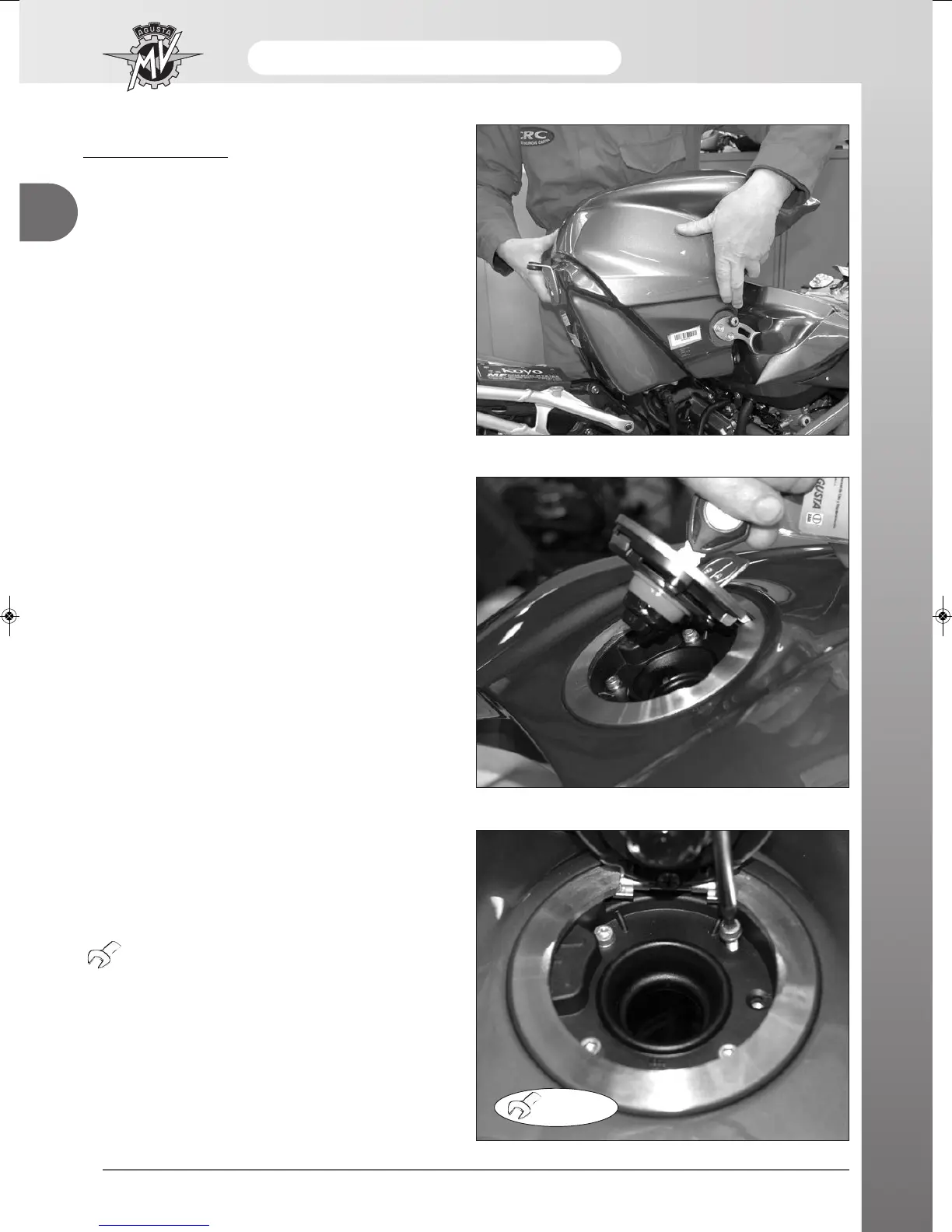

Fuel filler cap removal
Insert the ignition key in the fuel filler cap lock and
rotate in a clockwise direction to open the fuel filler cap.
Remove the four screws (1) indicated in the figure.
For reassembly, carry out the removal operations in
reverse order, tightening the screws to the torque pre-
scribed.
Fuel filler cap fixing screws torque pres-
sure: 5 N·m
5 N•m
