Maintenance
- 29 -
B

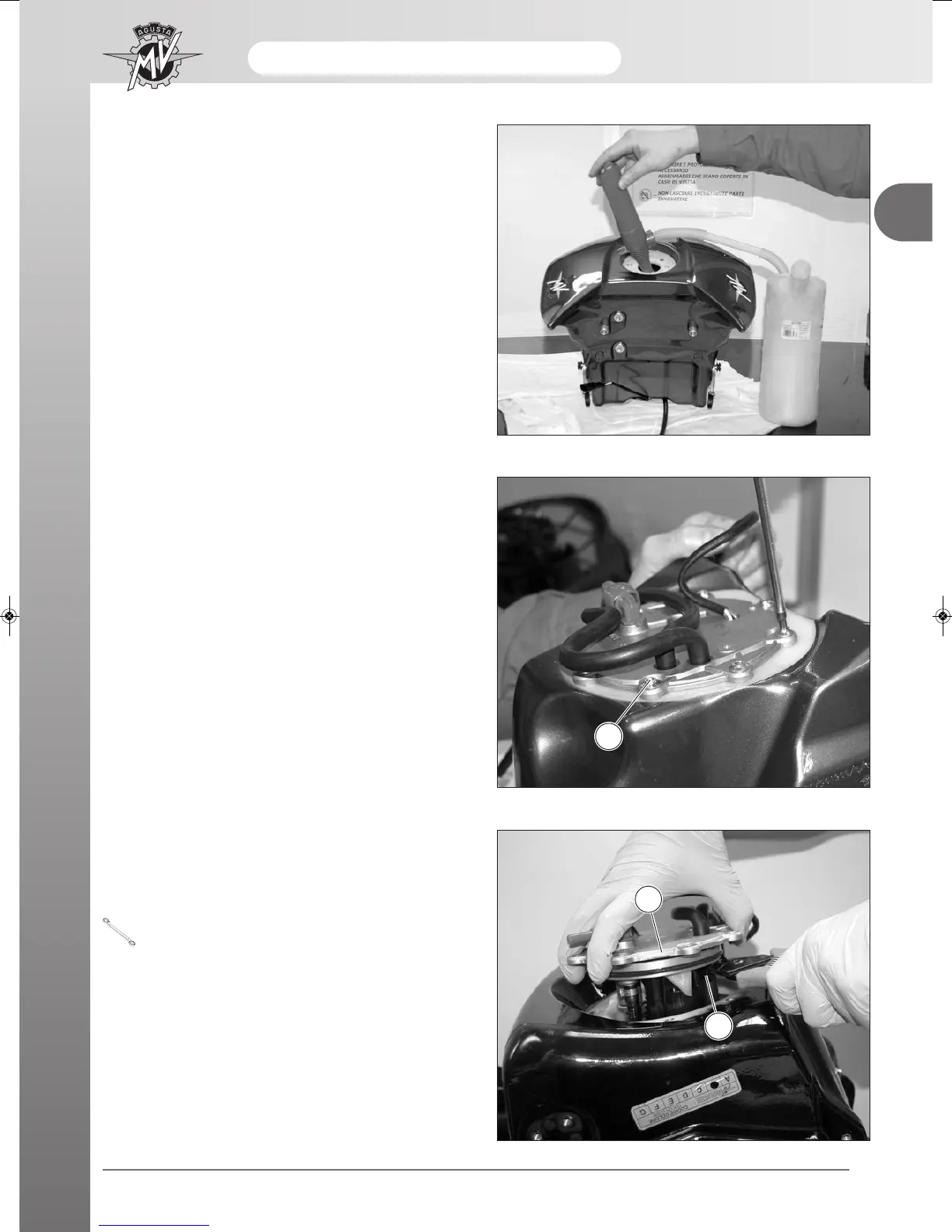

Completely empty the fuel tank utilising a pump as
illustrated in the figure.
Petrol flange assembly removal
Turn the tank upside down and remove the eight
screws for fixing the flange to the tank (1).
1
Lift up the flange (1) and disconnect the tubes (2) on
both sides of the flange.
Remove the two CLIC R 96105 fasteners utilising the
specified pincers.
Specified pincers: CLIC R 205
Part code 800095850
1
2
