Air intake injection system
INJECTION SYSTEM TECHNICAL CHARACTERISTICS

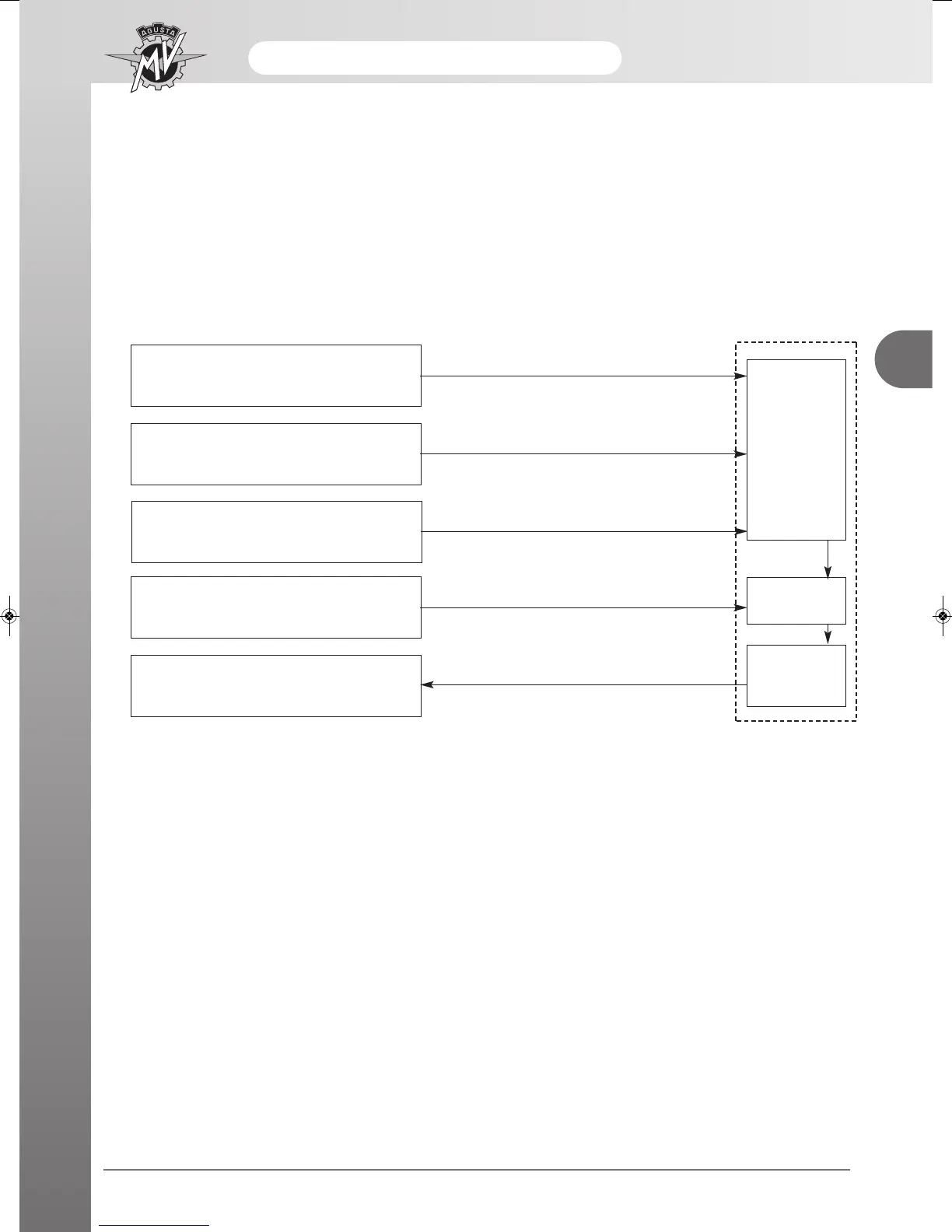

INJECTION TIME (INJECTION VOLUME)
The factors for the determination of the injection time are the basic injection time that is calculated on the basis
of the r.p.m. of the engine, the opening of the accelerator and various compensations that are determined accord-
ing to signals coming from various sensors that reveal the condition of the engine and the riding conditions.
- 3-
D
Camshaft position sensor
Accelerator position sensor
Various sensors
Injectors
BASIC
INJECTION
TIME
FINAL
INJECTION
TIME
COMPENSA-
TION
ECU
Engine r.p.m. signal
Accelerator opening signal
Various signals
Injection signal
Under throttle pressure sensor
Engine timing signal and firing sequence
