Electrical system
- 31 -
E

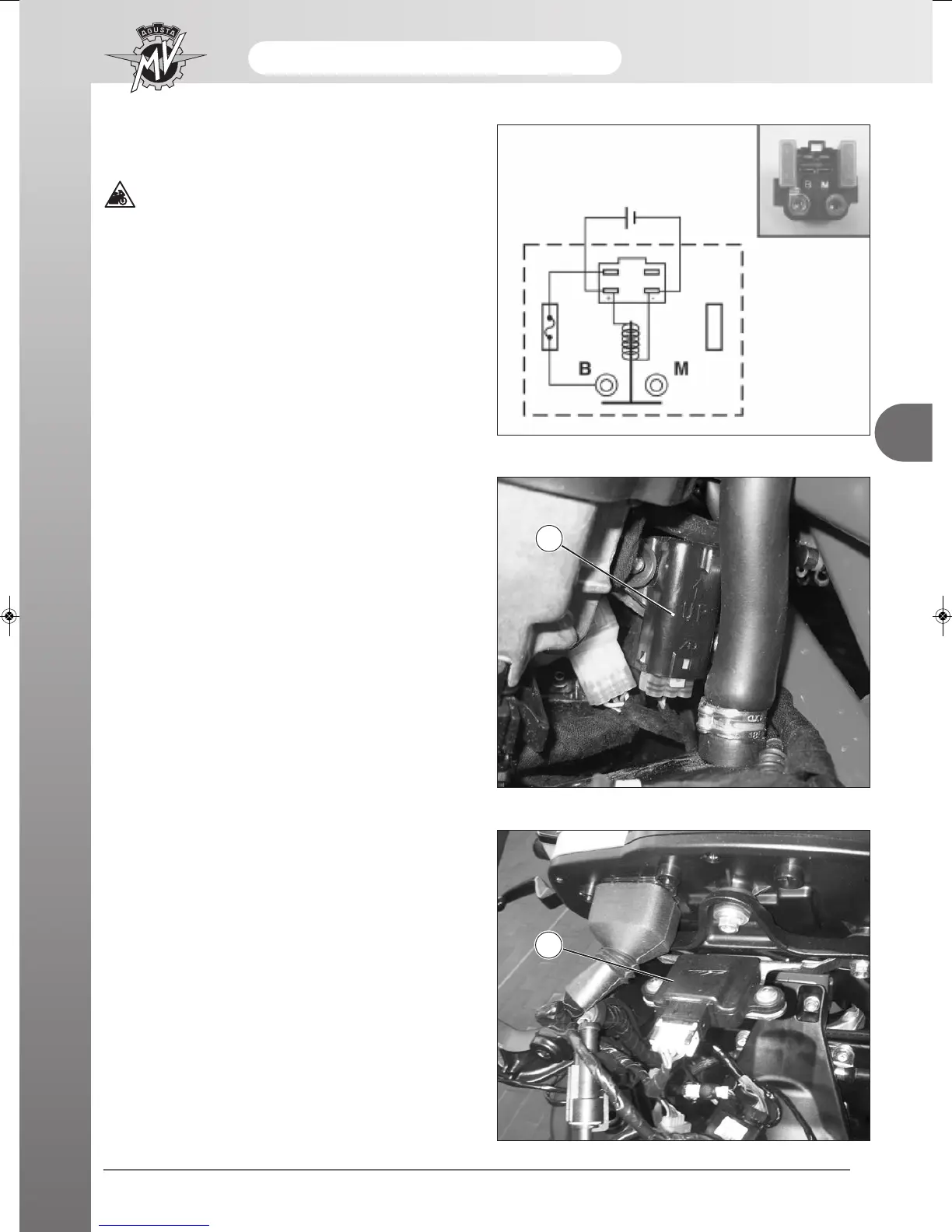

Apply 12 volts to the terminals (1) and (2) of the relay
and check the continuity between terminals B-M.
Do not apply the battery voltage to the starter
relay for more than five seconds to avoid
overheating and therefore damaging the
winding.
• Using a multi-tester, check that the winding is on
open circuit or if a resistance is present. The wind-
ing is in good condition if the value of the resistance
revealed is as indicated.
Multi-tester dial indication: Ω
Starter relay resistance
Standard: 3 – 6 ΩΩ
TILT SENSOR (MY10 -> MY12)
The tilt sensor (1) acts on the engine control unit, inter-
rupting power when a vehicle tilt of more than 60° is
detected.
1
LEAN SENSOR (MY13)
The lean sensor (1) detects the acceleration values
and sends them to the engine control unit, which inter-
venes on the engine working by adjusting the traction
control. Besides, it interrupts power when a vehicle tilt
of more than 65° is detected.
1
