- 18 -
Air intake injection system
D

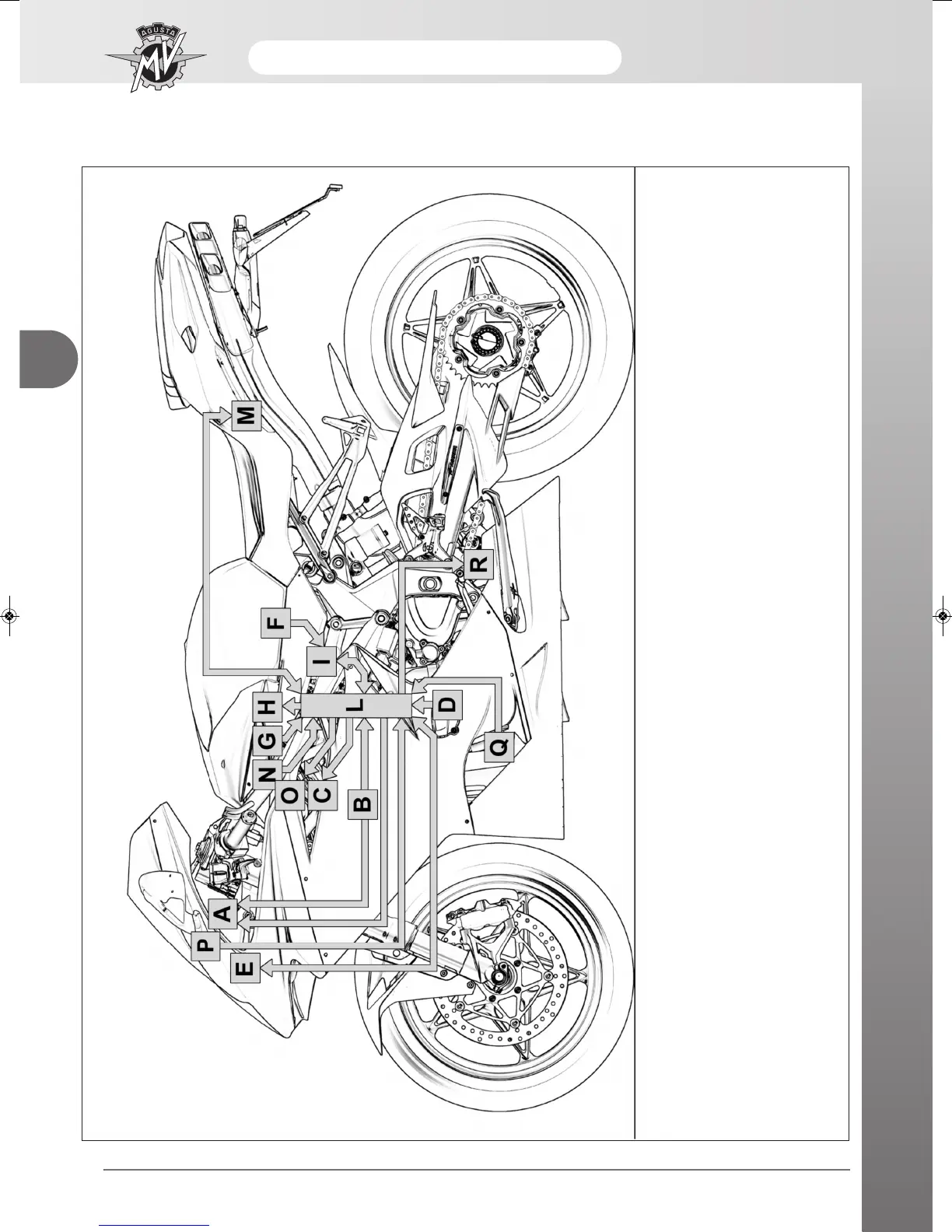

POSITIONS OF ENGINE-CONTROL SYSTEM PARTS (F4 MY13)
A Instrument panel
B Engine coolant temperature sensor
C Ignition coils
D Camshaft position sensor
E Air temperature sensor
F Fuel pump
G Throttle position sensor
H Fuel injectors
I Fuses/relays
L Engine control unit
M Solenoid starter
N Timing / Intake air pressure sensor -
Atmosheric air pressure sensor
O Drive by Wire actuator
P Lean angle / Tilt sensor
Q Lambda sensor
R Exhaust valve
