Suspension and wheels
F
- 11 -
1
1
F4 S - FT - R
- F4 MY13
F4 RR
20÷22 N•m 19 N•m
0.6 ÷ 1.2 mm
Speed
sensor
Phonic
wheel
40÷42 N•m

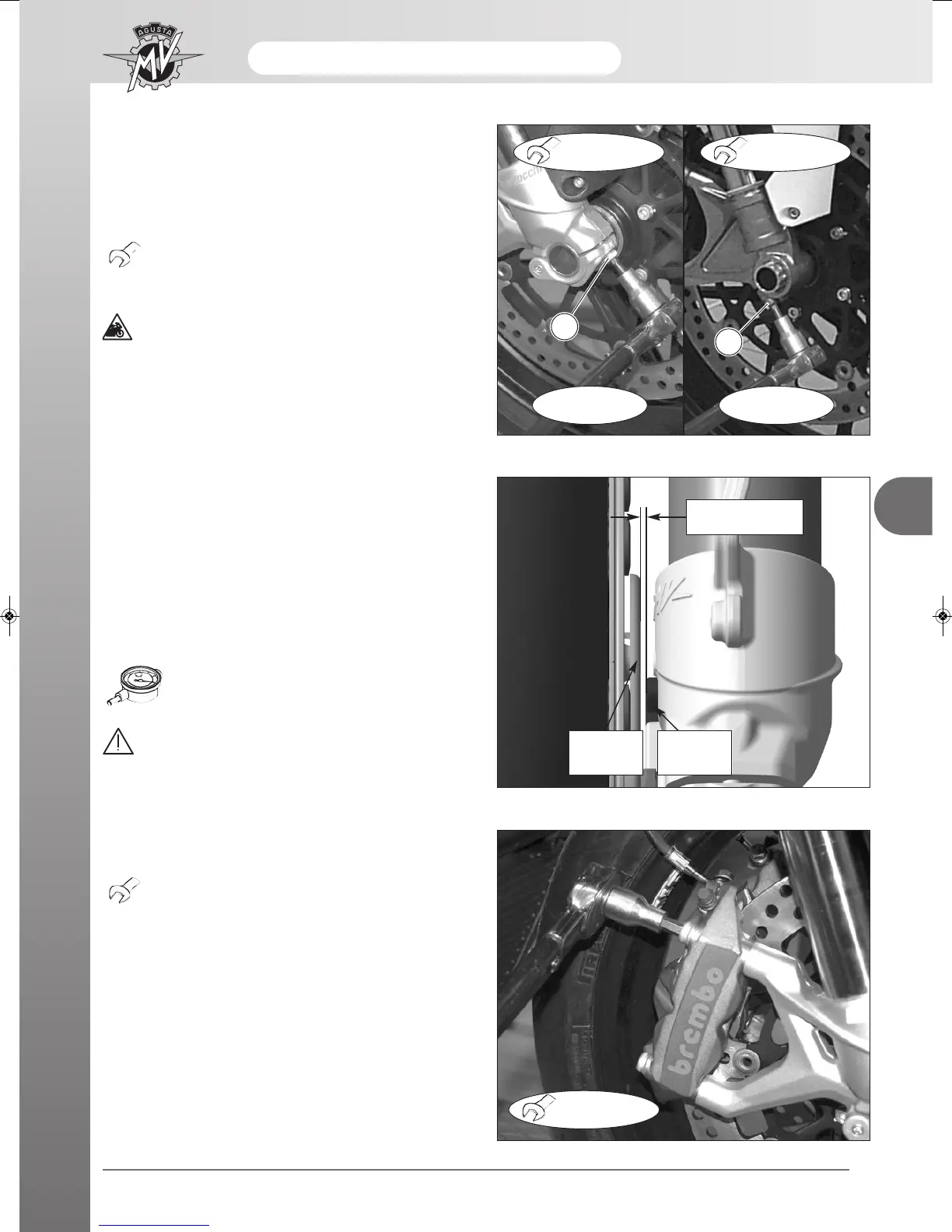

- Fitting the front brake calipers
Fit the front brake calipers and place the fixing screws
without tightening.
Tighten the two screws (1) of the fork feet to the torque
pressure prescribed.
Fork foot screws torque pressure:
F4 S / FT / R / F4 MY13: 20 ÷ 22 N·m
F4 RR: 19 N·m
During the operation, support the front
wheel so as to prevent the screws from
sticking.
- Only for F4 - F4 R MY13 models (ABS version):
After the tightening of the front fork feet screws, mea-
sure with a thickness gauge the clearance between
the front speed sensor and the phonic wheel on the left
side of the front wheel.
Verify that the above clearance lies within the range
reported below. Otherwise, slacken the front fork feet
screws and repeat the assembling operations descri-
bed at page 10.
Front speed sensor / phonic wheel clearance
(after tightening the screws): 0.6 ÷ 1.2 mm
The respect of the above value is necessary
to allow a correct working of the ABS system.
Tighten the front brake caliper fixing screws to the pre-
scribed torque.
Torque pressure: 40 ÷ 42 N·m
