Electrical system
- 23 -
E

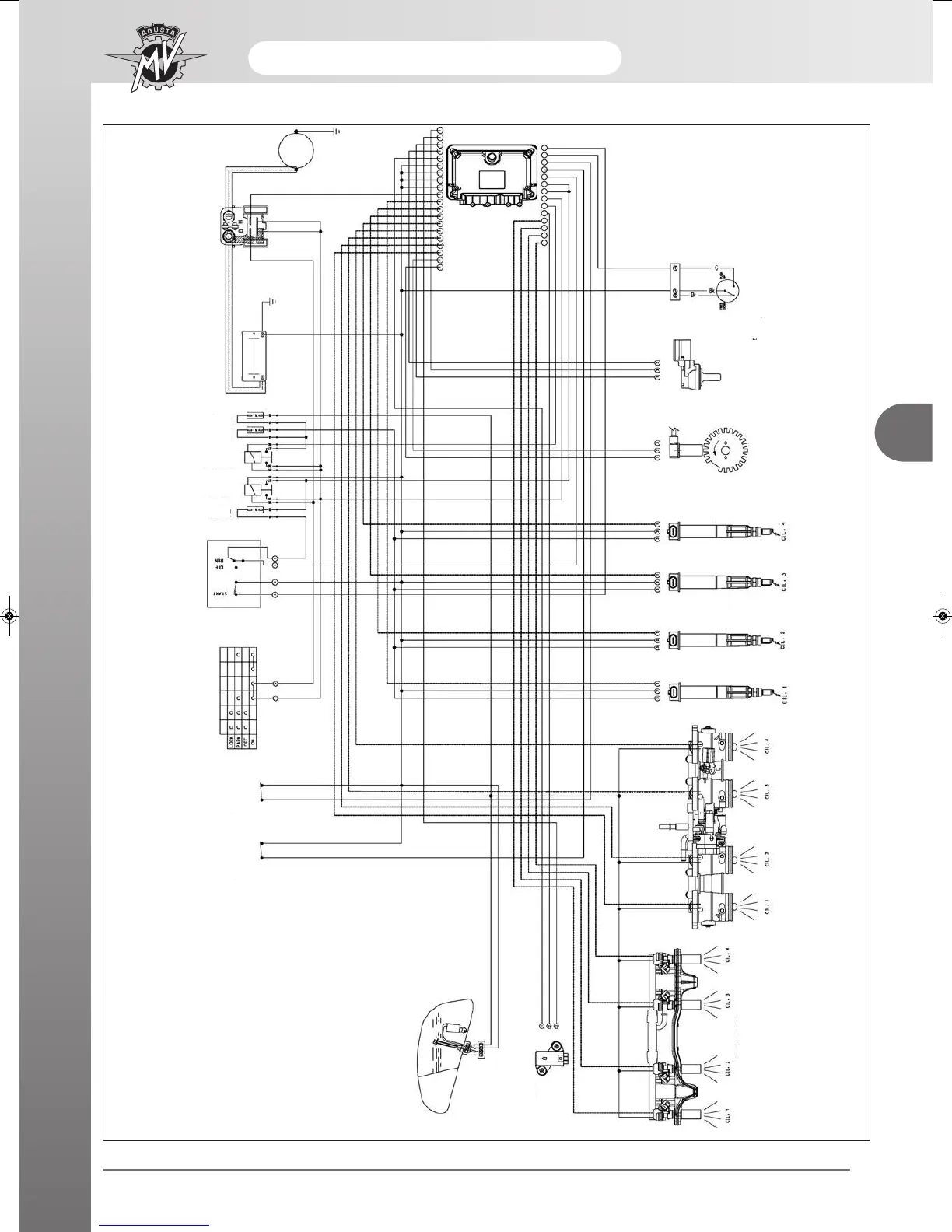

F4 MY10 -> MY12 Ignition key in the “ON” position
Safety switch in the “RUN” position
Start activated Side stand out Gear engaged Clutch pulled in Engine is starting
SOLENOID
STARTER
BATTERY
SERVICE FUSE
KEY SWITCH
SAFETY SWITCH
MAIN RELAY
FUEL PUMP - COILS -
INJECTORS RELAY
CLUTCH
SWITCH
SIDE STAND SWITCH
NEUTRAL
SWITCH
TILT SENSOR
PICK-UP WHEEL
FULE PUMP,
INJECTOR FUSE
COIL, ECU FUSE
PRESSURE SENSOR
UNDER THROTTLE
THROTTLE BODY
LOWER INJECTRS
THROTTLE BODY
UPPER INJECTRS
FUEL TANK
PLUG-TOP
COILS
