Suspension and wheels
F
- 64 -

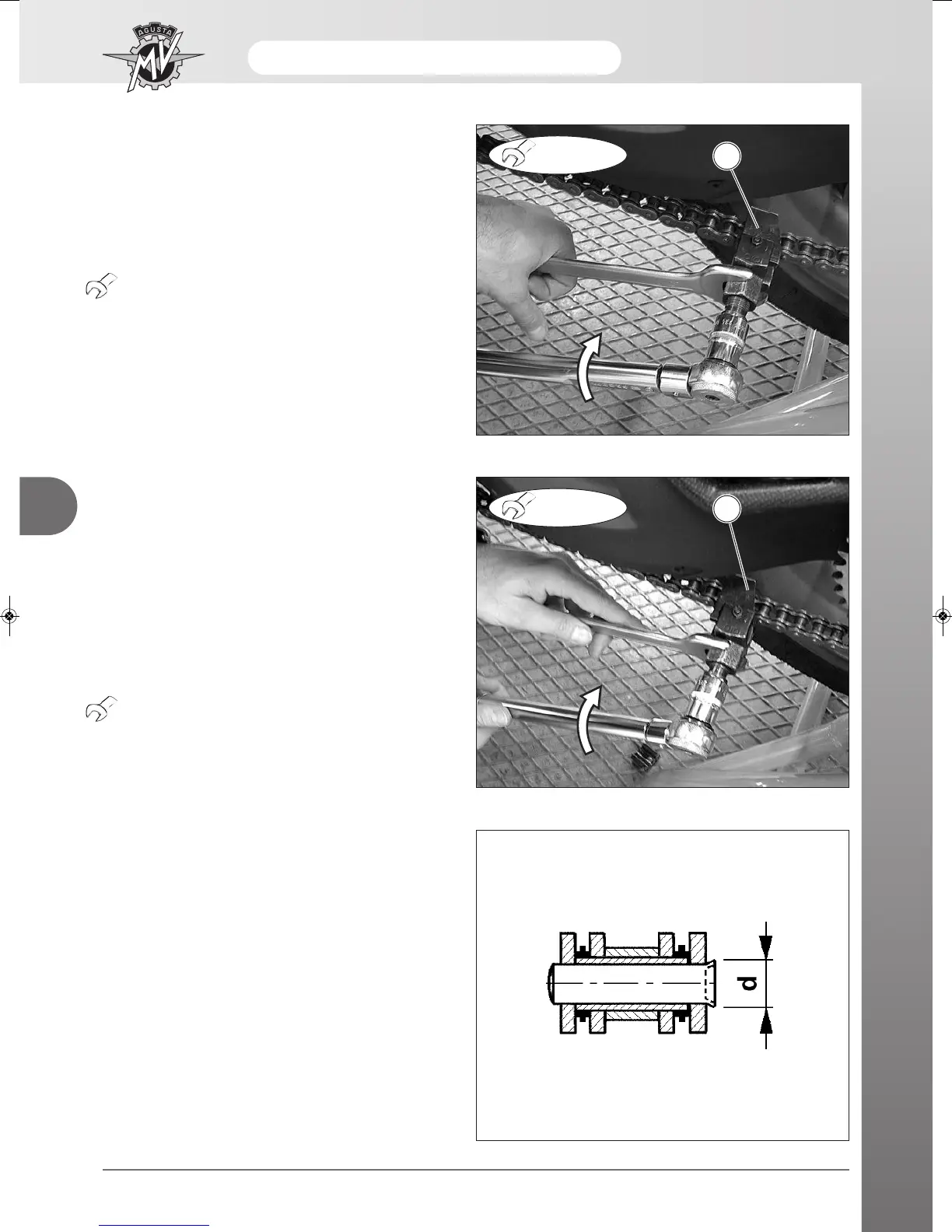

Mount the tool onto the chain as shown in the figure
and align the punch on «A».
Turn the pin holder by hand until the plate holder con-
tacts with the connecting link plate.
Tighten at the specified torque.
Connecting link plate press fitting torque
pressure:
30 ÷ 35 N•m
PIN RIVETING (D.I.D. 525 HV2)
Pull out the plate holder from the tool, keeping the
punch in the position used in the previous operation.
Mount the tool onto one of the pins of the connecting
link as shown in the figure and align the punch on «B».
Turn the pin holder by hand until the punch contacts
with the pin. Check that the punch and the pin are cor-
rectly aligned.
Tighten at the specified torque.
Pin riveting torque pressure:
45 ÷ 50 N•m
Repeat the above operations for the second pin of the
connecting link.
After the riveting of the pin, check that the head dia-
meter of both pins is equal to the following value:
- Pin head diameter after riveting:
d = Ø 5.5 mm
A
30÷35 N•m
B
45÷50 N•m
