Maintenance
- 17 -
B
- F4 MY10 -> MY12:

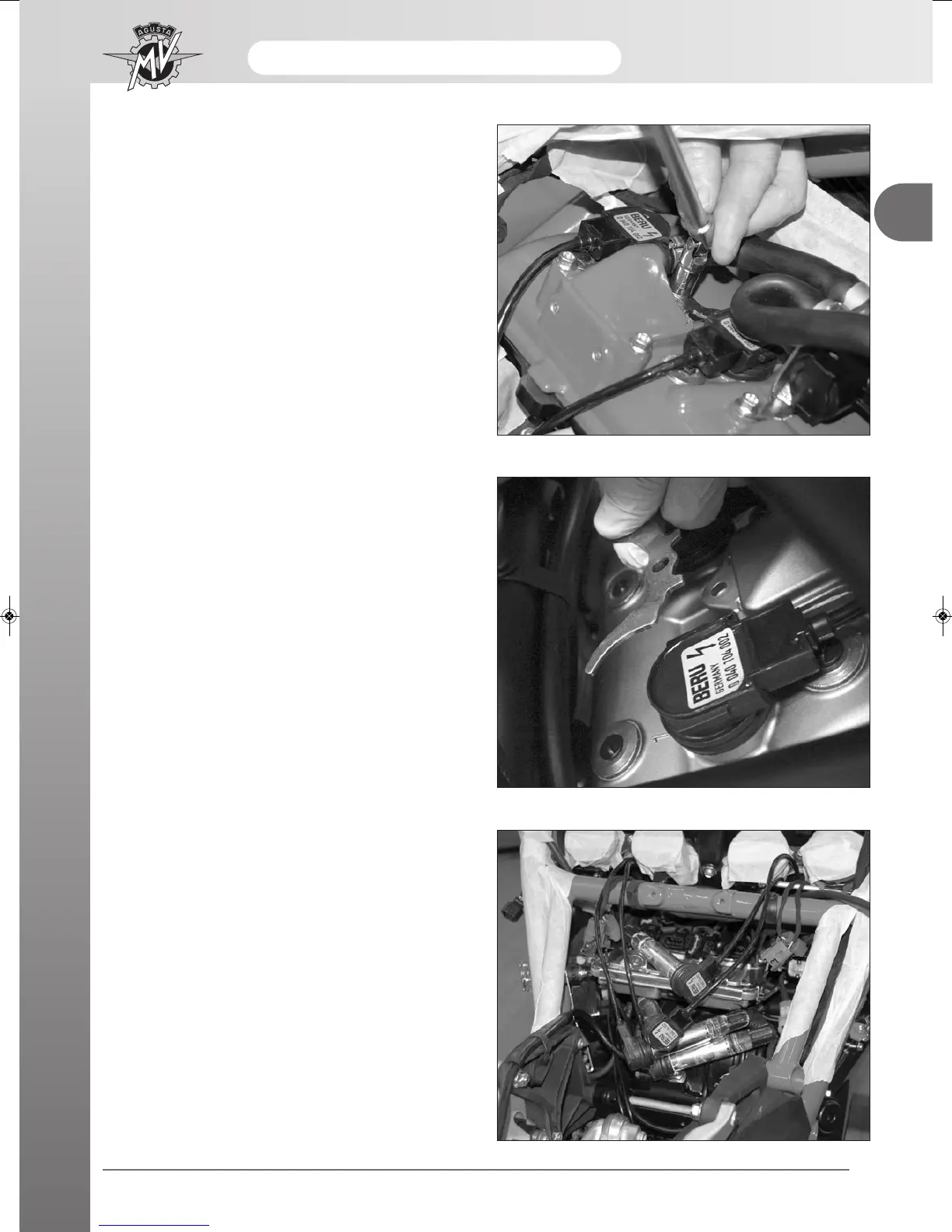

Remove the locking bracket of the plug-top coils.
Remove the 4 plug-top coils as shown in Chapt. G
"Frame".
- F4 MY13:
Remove the fixing screws of the plug-top coils.
Remove the 4 plug-top coils as shown in Chapt. G
"Frame".
- F4 MY10 -> MY12:
To install the locking bracket of the plug-top coils, make
sure the bends of the bracket are turned upwards, as
shown in the figure.
Maintenance
Systemise the HT leads, positioning them as indicated
in the following figure.
