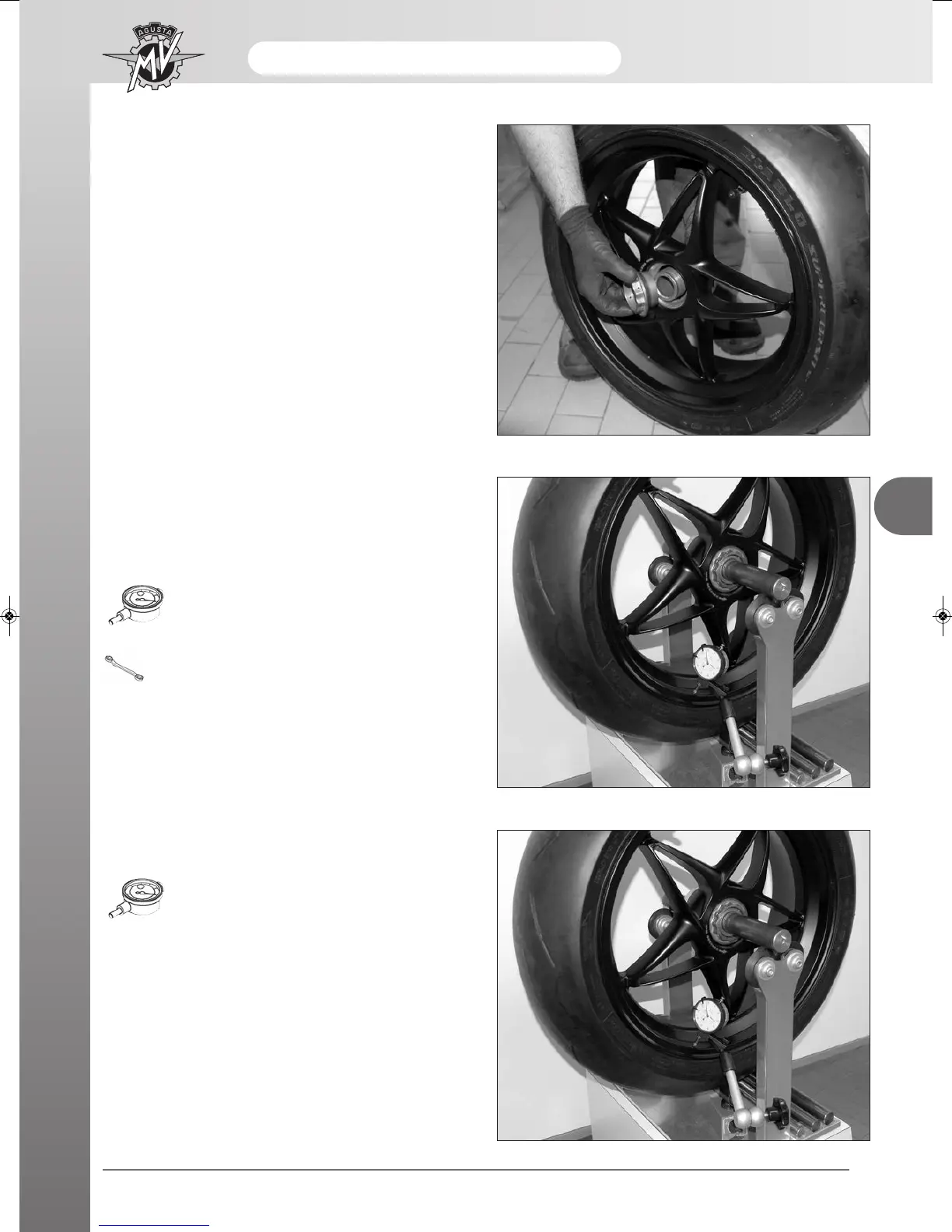

Mount the wheel onto an adequate support similar to
that shown in the figure, utilising the special tool cod.
8000A1953. Check the wheel utilising a micrometer
gauge and check the following tolerances:
Ovalization and maximum eccentricity
must not exceed 0,5 mm.
Special tool N. 8000A1953
Place the dial gauge as shown in the figure, and check
the flatness.
Flatness must not exceed: 0.5 mm.
Insert the polygonal nut of the balancing tool from the
opposite side and screw it onto the threaded part of the
tool so that the tool can be fixed to the wheel.
