- 22 -
Maintenance
B
Maintenance

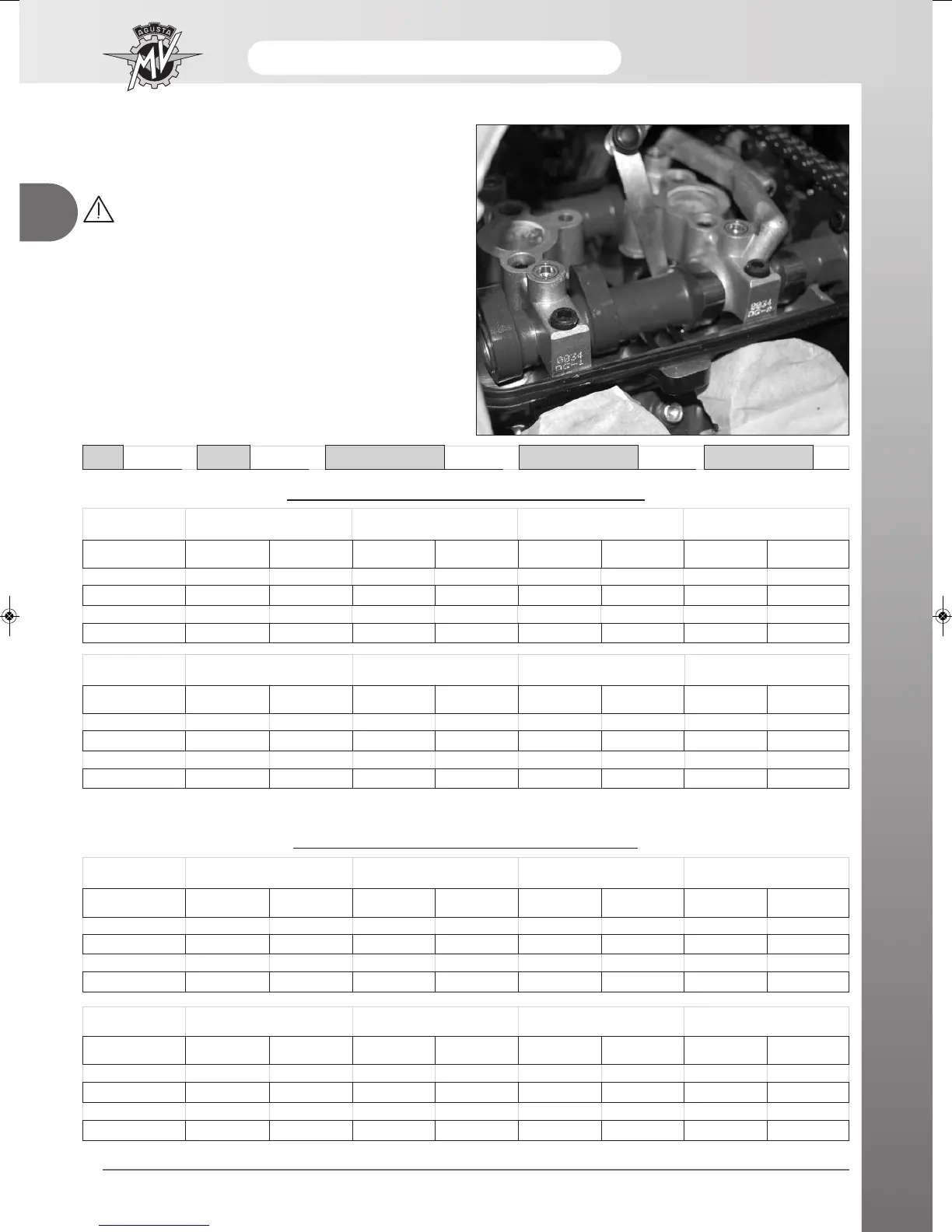

Utilising a feeler gauge of the type shown in the figure,
measure the play between the camshaft and the valve
cups.
The correct measuring of the play is a fun-
damental operation for the correct function-
ing of the engine.
Carry out the measuring of the play of the following valves:
Cylinders 1 and 2 intake valves (n° 1, 2, 3, 4)
Cylinders 1 and 3 exhaust valve (n° 11, 12, 15, 16)
Scrupulously, make a note of the order of the values
measured in the form of a table.
For example, here is a hypothesis of a table in which
are written the various values measured.
Values measured after substituting the valve cups:
CYLINDER 1 CYLINDER 2 CYLINDER 3 CYLINDER 4
INTAKE Valve n° 1 Valve n° 2 Valve n° 3 Valve n° 4 Valve n° 5 Valve n° 6 Valve n° 7 Valve n° 8
Valve play
Pad thickness
CYLINDER 1 CYLINDER 2 CYLINDER 3 CYLINDER 4
EXHAUST Valve n° 9 Valve n° 10 Valve n° 11 Valve n° 12 Valve n° 13 Valve n° 14 Valve n° 15 Valve n° 16
Valve play
CYLINDER 1 CYLINDER 2 CYLINDER 3 CYLINDER 4
EXHAUST Valve n° 9 Valve n° 10 Valve n° 11 Valve n° 12 Valve n° 13 Valve n° 14 Valve n° 15 Valve n° 16
Valve play
Pad thickness
Values measured before substituting the valve cups:
CYLINDER 1 CYLINDER 2 CYLINDER 3 CYLINDER 4
INTAKE Valve n° 1 Valve n° 2 Valve n° 3 Valve n° 4 Valve n° 5 Valve n° 6 Valve n° 7 Valve n° 8
Valve play
Pad thickness
Date Vehicle
Engine registration n°
Frame registration n° Kilometres travelled
Pad thickness
