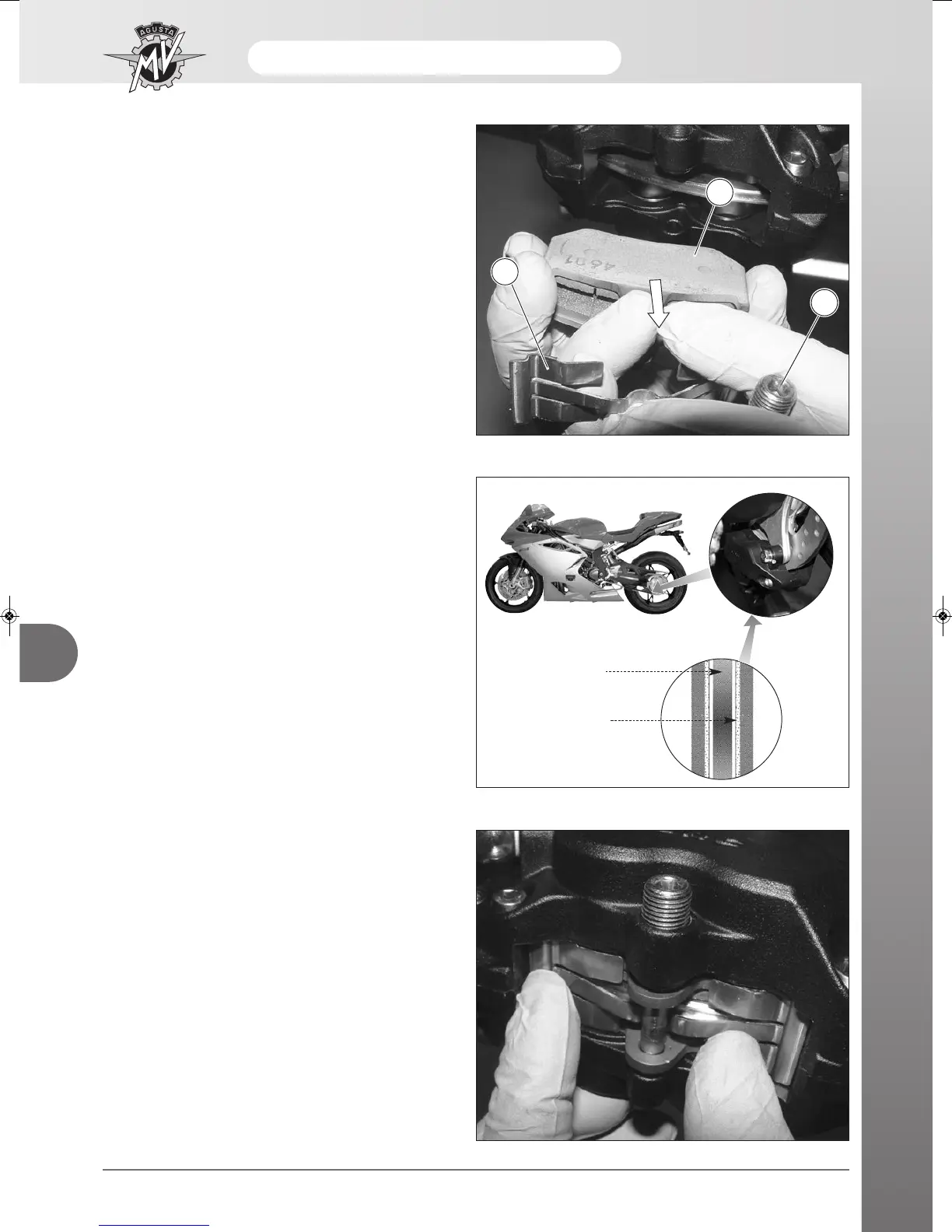

Remove the pad support pin (1) and the relative spring
(2).
Remove the pad (3) by letting it drop down.
Check the condition of the rear braking system and its
components.
Refit as described for the front braking system.
Carry out the check every 6000 kilometres.
1
3
2
Brake disc
Brake pads
