Brakes
H

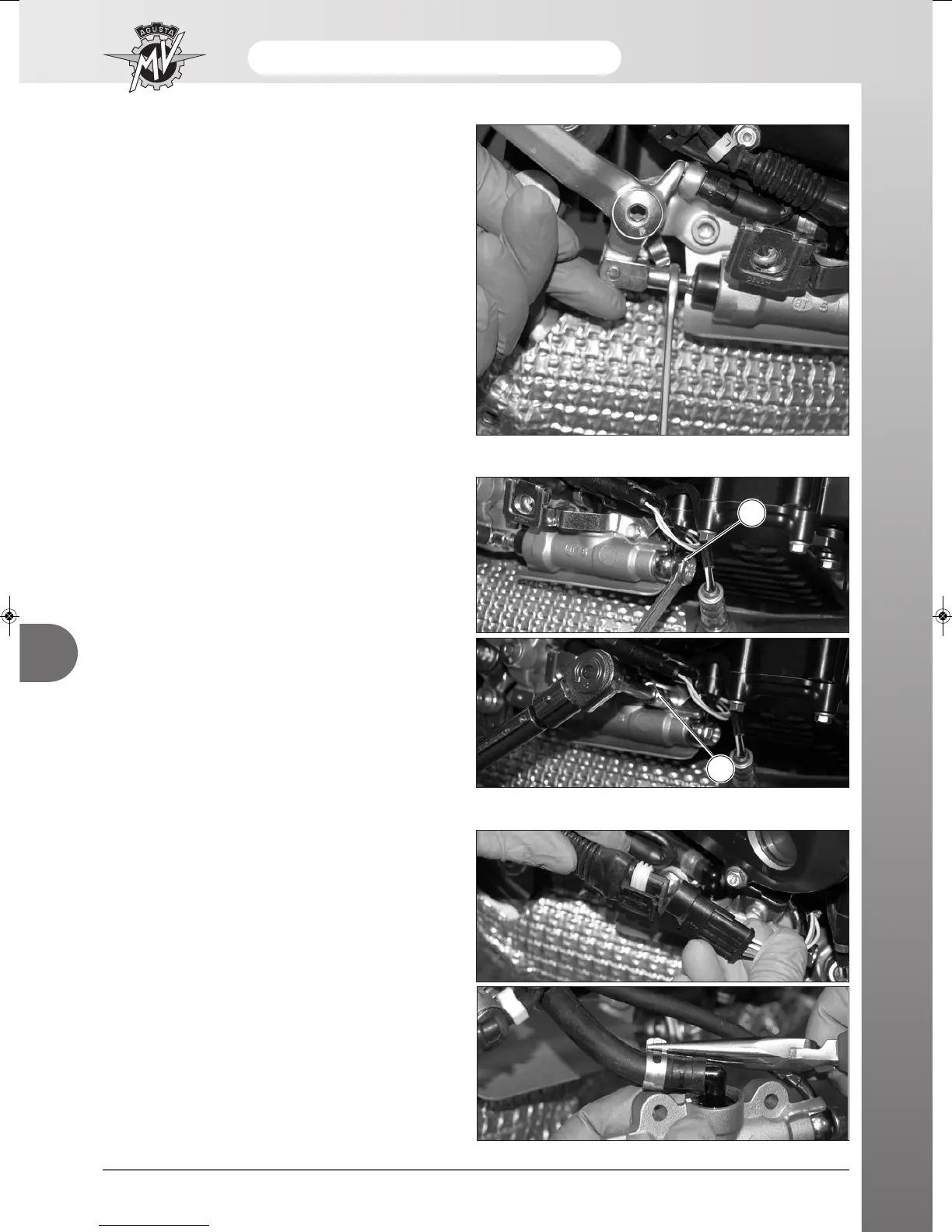

Rear brake pump removal
Carry out the emptying of the brake system as previ-
ously described.
Remove the clip with the pump control fork pin by turn-
ing the pin and pulling it out (see figure).
Unscrew connection (1) as shown in the figure so as to
disengage the pump from the brake line.
Unscrew the two fixing screws (2) of the brake pump to
its relative support.
Remove the Lambda probe connector support plate.
Remove the pump.
Remove and disconnect the the Lambda probe con-
nector.
Remove clamp and disconnect the tube.
