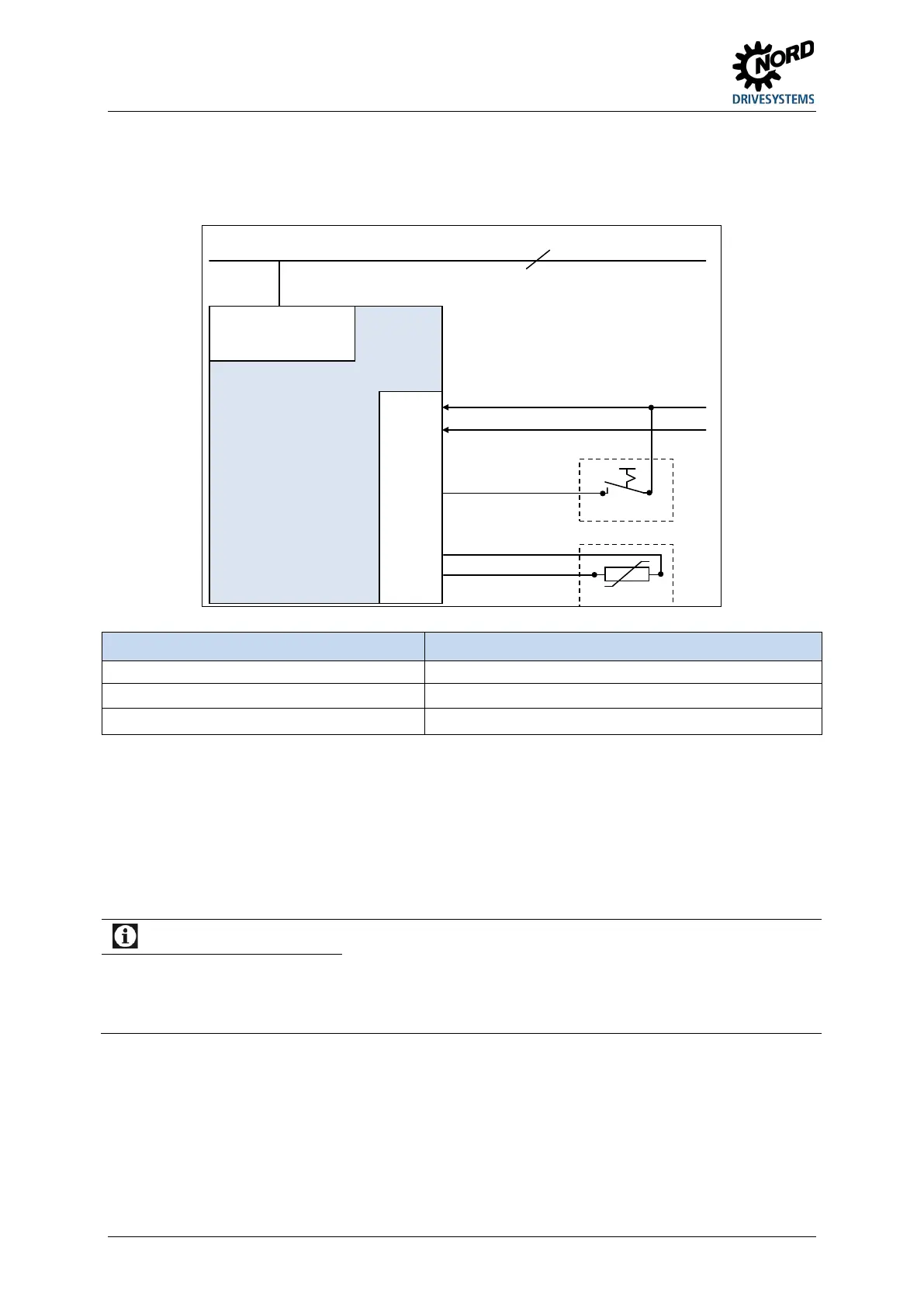

4.3.4.2 SK 2x5E - Minimal Configuration
Minimal configuration without options
The frequency inverter must be provided with a 24V control voltage.
Frequency inverter
SK 2x5E-...
Control terminal bar
44
40
.
.
21
22
.
38
39
L1 - L2/N - L3
115/230/400 V
24 V=
GND
1/3~ 115/230/400 V + PE
Switch S1
Motor PTC
Function Setting
Setpoint
Integrated potentiometer P1
Frequency ramp
Integrated potentiometer P2
Controller enable
External switch S1
Pos: 25 0 /Anlei tung en/El ektr onik/FU und Star ter/4 . Inbetriebnahme/SK 1xxE, SK 2xxE, -FD S/Inbe trie bnahm e Gerät /Mini malko nfigur atio n SK 2x5E _01 (.. . mit Opti onen) [SK 2x xE] @ 8\mod_1441629963804_388.docx @ 240532 @ 5 @ 1
Minimal configuration with options
In order to implement completely autonomous operation (independent of control lines etc.) a switch
and a potentiometer such as potentiometer adapter SK CU4-POT are required. In combination with an
integrated power supply (SK CU4-…-24V), a solution that only has the power supply line can be set
up with an SK 2x5E in this way, and requirement-oriented speed and rotation direction of rotation
control provided ( Section 3.2.4 "Potentiometer adapter, SK CU4-POT").
Information
Convert analogue signal
An 8-bit A/D converter is integrated in the SK TU4-…-24V and SK CU4-…-24V power supplies. This makes it
possible to connect a potentiometer or another analogue setpoint source to the power supply. The power supply
can convert the analogue setpoint into an appropriate pulse signal. This signal can be connected to a digital input
of the frequency converter and processed by it as a setpoint.
