NORDAC FLEX (SK 200E ... SK 235E) – Users Manual for Frequency Inverters
44 BU 0200 en-3118

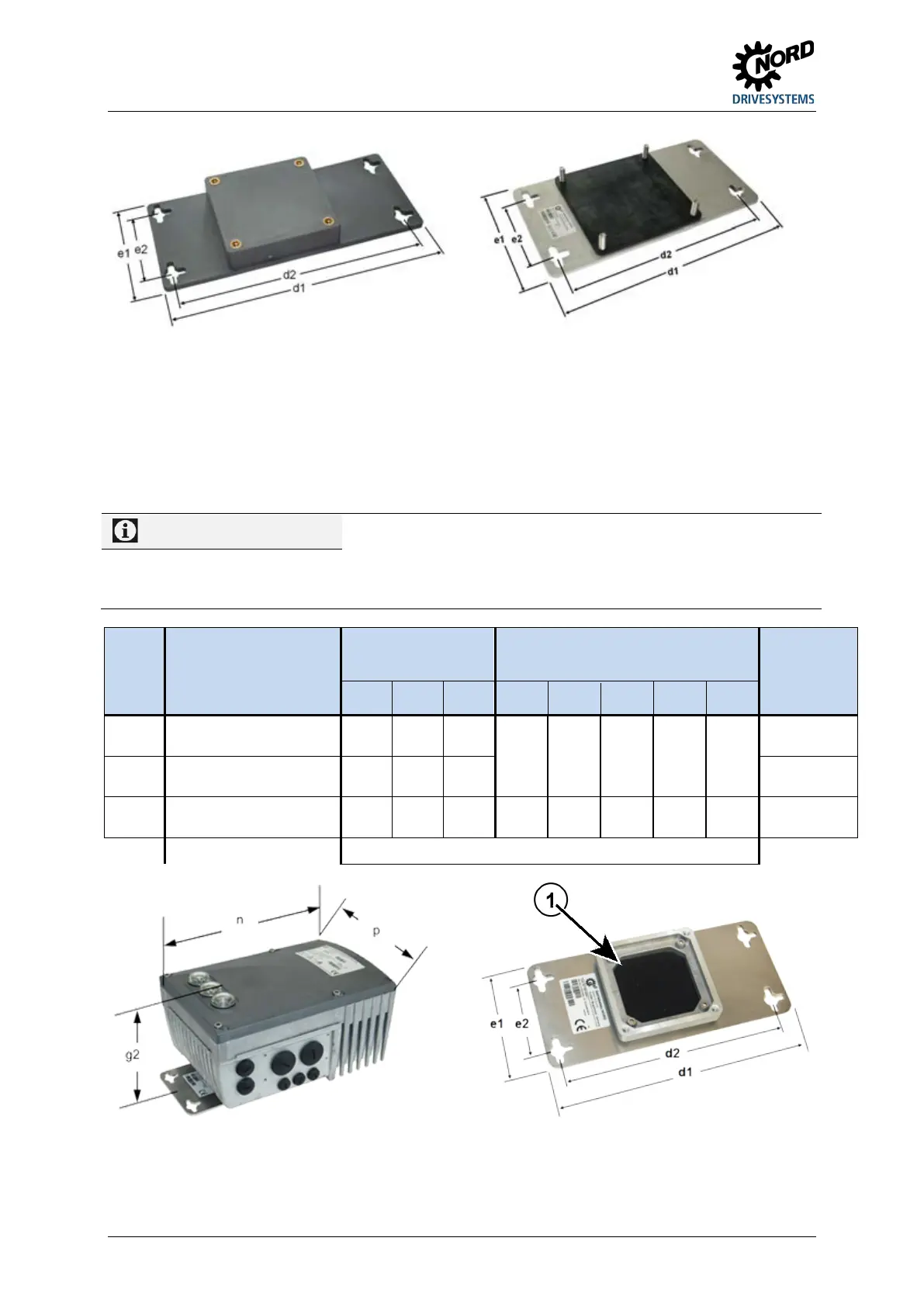

Figure 8: SK TIE4-WMK-1-K (or -2-K) Figure 9: SK TIE4-WMK-3(-C)
Pos: 87 /A nl eitu nge n/El ek tro nik/FU u nd S tarter /2. M ontag e und Inst allati on/M ontag e/Wan dmon tage - Ergänzung [SK 1xxE, SK 2xxE]/Wandmontagekit SK TIE4 WMK-1-EX und -2-EX [SK 2xxE] @ 22\mod_1529334914872_388.docx @ 2427371 @ 5 @ 1
Wall mounting kit SK TIE4-WMK-… (…1-EX, …2-EX)
These wall mounting kits are intended for use in explosion hazard environments ( Section 2.6
"Operation in potentially explosive environments "). They are made of stainless steel and are equally
suitable for IP55 and IP66 applications.
Information
Derating
With the use of the wall mounting kit the frequency inverter is no longer optimally ventilated. Therefore, especially
with 3-phase frequency inverters, the maximum continuous power output can be considerably lower than is typical
for wall mounting. For details, please refer to the technical data ( Section
7.2 "Electrical data")
FI size
Frequency inverter type Housing dimensions Mounting dimensions
Total weight
approx. [kg]
g2 n p d1 d2 e1 e2
∅
Size 1
SK TIE4-WMK-1-EX
130.5 236 156
205 180 95 64 5.5
3.5
Part. No. 275 175 053
Size 2
SK TIE4-WMK-1-EX
137.5 266 176 4.6
Part. No. 275 175 053
Size 3
SK TIE4-WMK-2-EX
154.5 330 218 235.5 210.5 105 74 5.5 7.5
Part. No. 275 175 054
All dimensions in [mm]
1
Adapter plate
Figure 10: SK 2xxE with wall-mounting kit Figure 11: SK TIE4-WMK-... (…1-EX / 2-EX)
