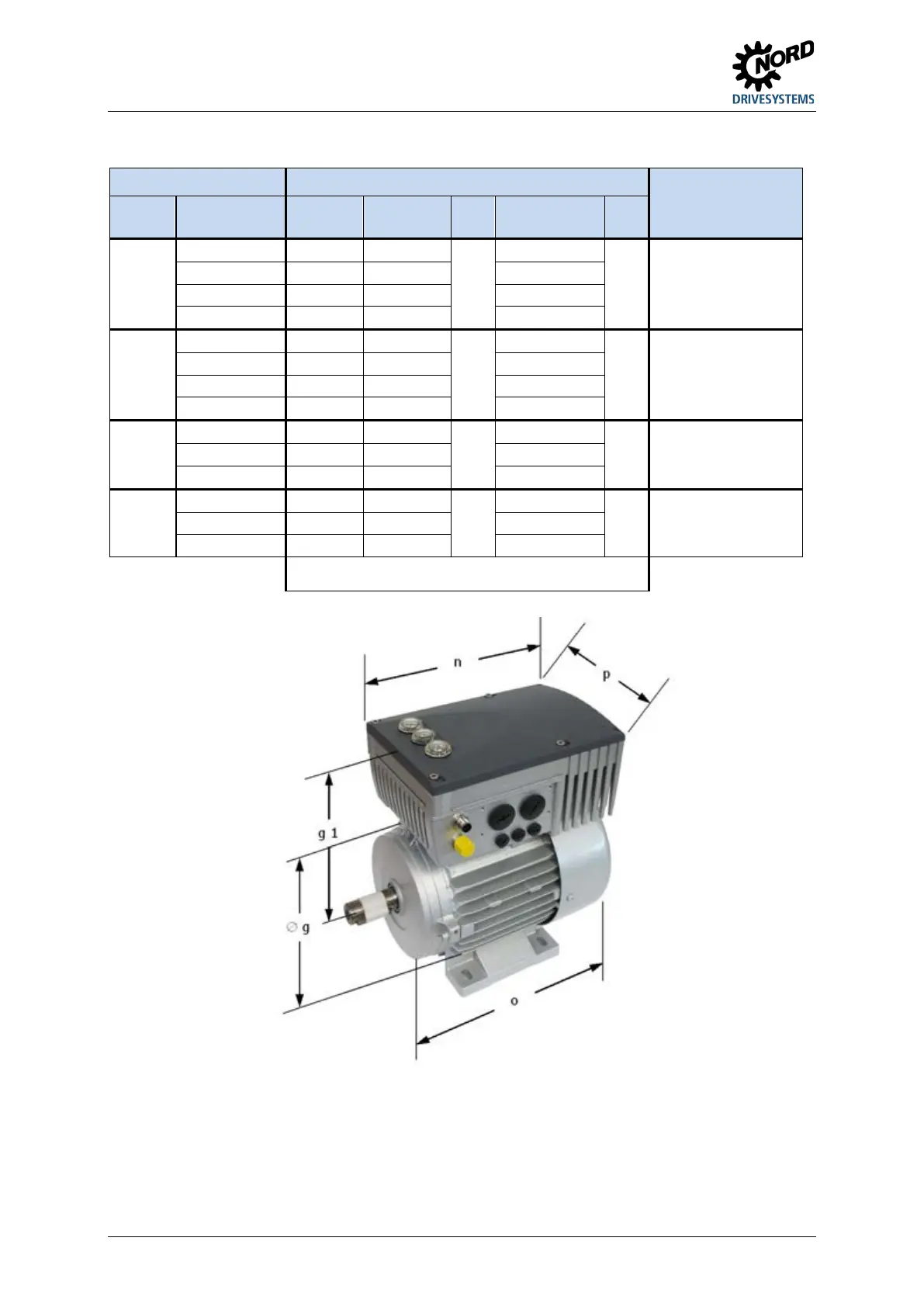

2.1.2.2 Dimensions, SK 2xxE mounted on motor
Size Housing dimensions SK 2xxE / Motor Weight of SK 2xxE
without motor
Approx. [kg]
FI Motor
∅
g
g 1 n o p
Size 1
Size 71 *
145
201
236
214
156 3.0
Size 80 165 195 236
Size 90 S / L
183
200
251 / 276
Size 100 201 209 306
Size 2
Size 80
165
202
266
236
176 4.1
Size 90 S / L
183
207
251 / 276
Size 100 201 218 306
Size 112
228
228
326
Size 3
Size 100 201 251
330
306
218 6.9
Size 112
228
261
326
Size 132 S / M
266
262
373 / 411
Size 4
Size 132 266 313
480
411
305 17.0
Size 160
320
318
492
Size 180 358 335 614
All dimensions in [mm]
*) including additional adapter and seal [13097000]
