4.3.2.3 DIP switches, analogue input (only SK 2x0E)
The analogue inputs in the SK 2x0E are suitable for current and voltage
setpoints. For correct processing of current setpoints (0-20 mA / 4-
20 mA) the relevant DIP switch must be set for current signals ("ON").
Adjustment (to fail-safe signals in case of cable breaks (2-10 V / 4-
20 mA) is made via parameters (P402) and (P403).

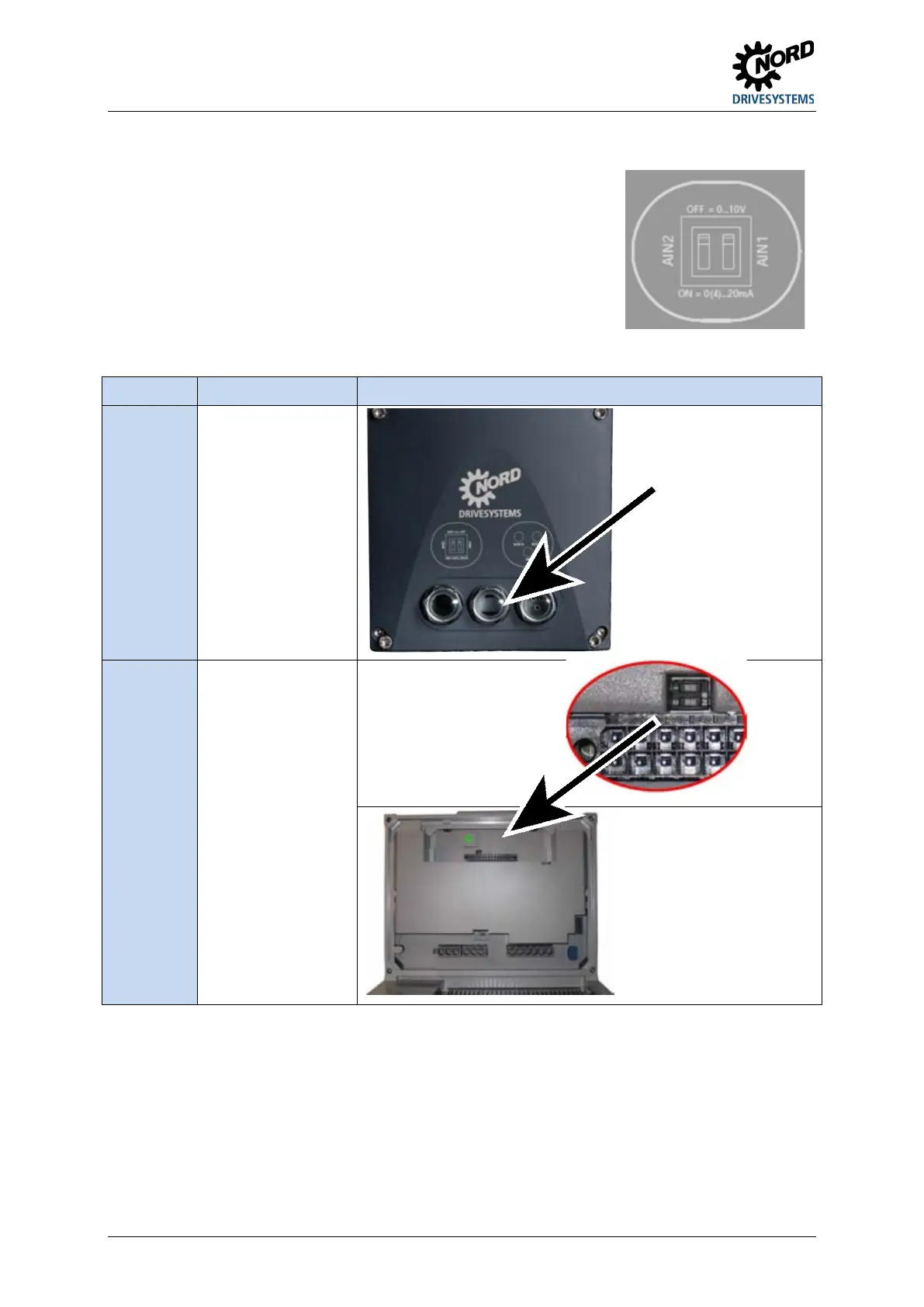

Access to DIP switches
SK 2x0E Access Detail
Size 1 … 3
… from outside,
middle diagnostic
opening
Size 4 ... from inside
