4 Commissioning
BU 0200 en-3118 125
Pos: 263. 25 / Anl eit unge n/ Elek tro nik/F U u nd St arter/ 4. Inb etri eb nah me/A S-I nterfa ce [all e Gerät e]/An zeige n_01 [S K 1xxE, S K 2xxE, SK 1xxE- FDS] @ 9\mod_1443602542071_388.docx @ 247817 @ 4 @ 1

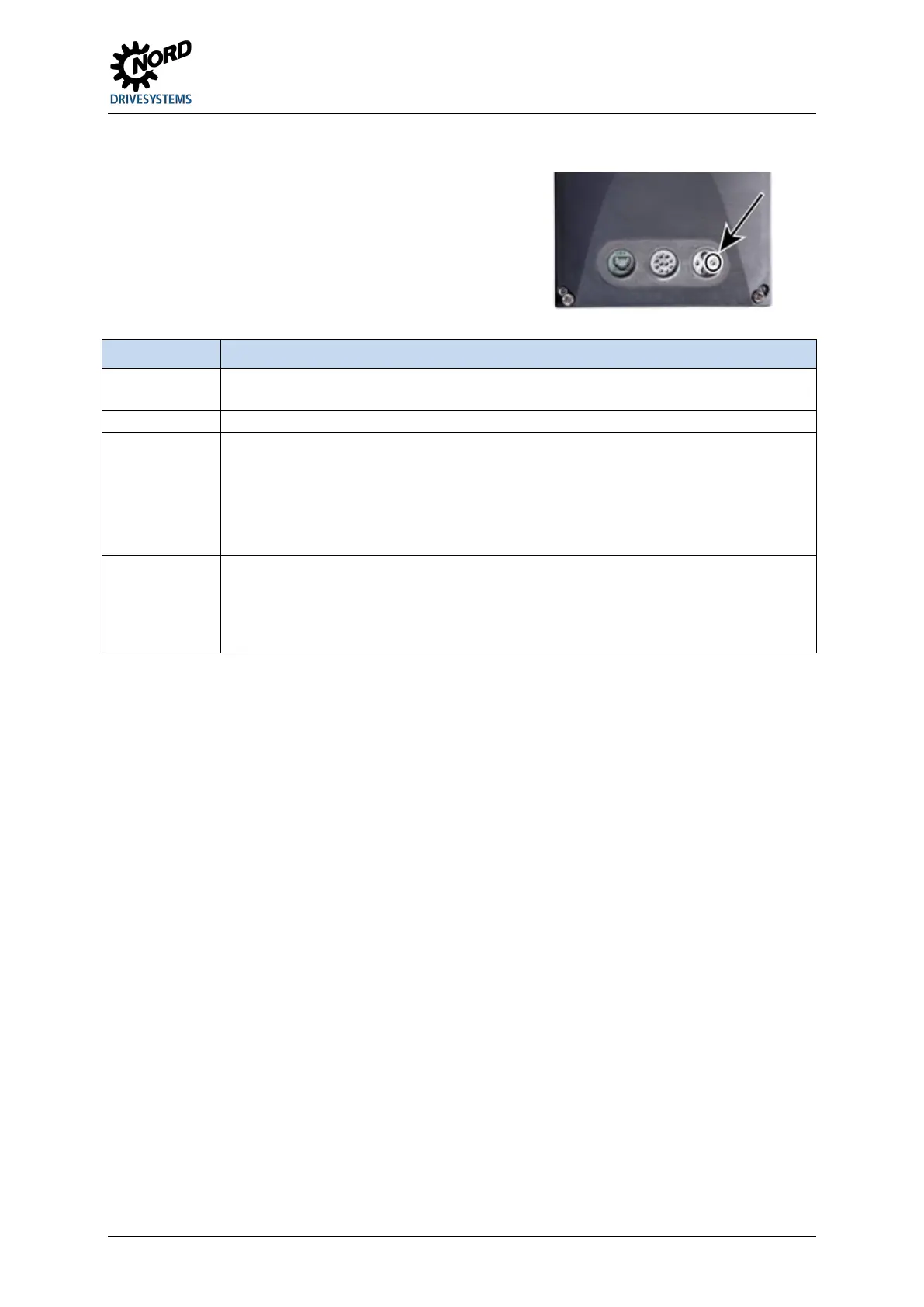

4.5.4.2 Displays
The status of the AS interface is signalled by a multi-
colour AS-i LED.
AS-i LED Meaning
• No AS interface voltage to the module
• Connections not connected or exchanged
green ON • Normal operation (AS interface active)
– Slave address = 0 (slave still in factory setting)
– Slave not in LPS (list of planned slaves)
– Slave with incorrect IO/ID
– Master in STOP mode
– Reset active
flashing
red / green
Flashing
(2 Hz)
1)
– Control unit in device not starting
(AS-i voltage too low or control unit defective)
Pos: 263. 26 / Anl eit unge n/ Elek tro nik/F U u nd St arter/ 4. Inb etri eb nah me/A S-I nterfa ce [all e Gerät e]/An zeige n_02 [S K 2xxE] @ 9\mod_1443610229117_388.docx @ 248118 @ @ 1
1) Switch-on frequency per second, example: 2 Hz = LED 2 x second "On"
The AS-i LED is only available for devices of type SK 2x0E size 4 and SK 2x5E.
