Variant 2 – use of an optional power supply SK xU4-24V-…
Since the permissible load of terminal 44 is limited to 60 mA when using the AS interface, if there is an
increased power requirement it is possible to incorporate a power supply (e.g. SK CU4-24V-…) for
supplying the additional peripherals. However, under no circumstances must the 24 V voltage of
the power supply be connected to the frequency inverter (see also following connection example).

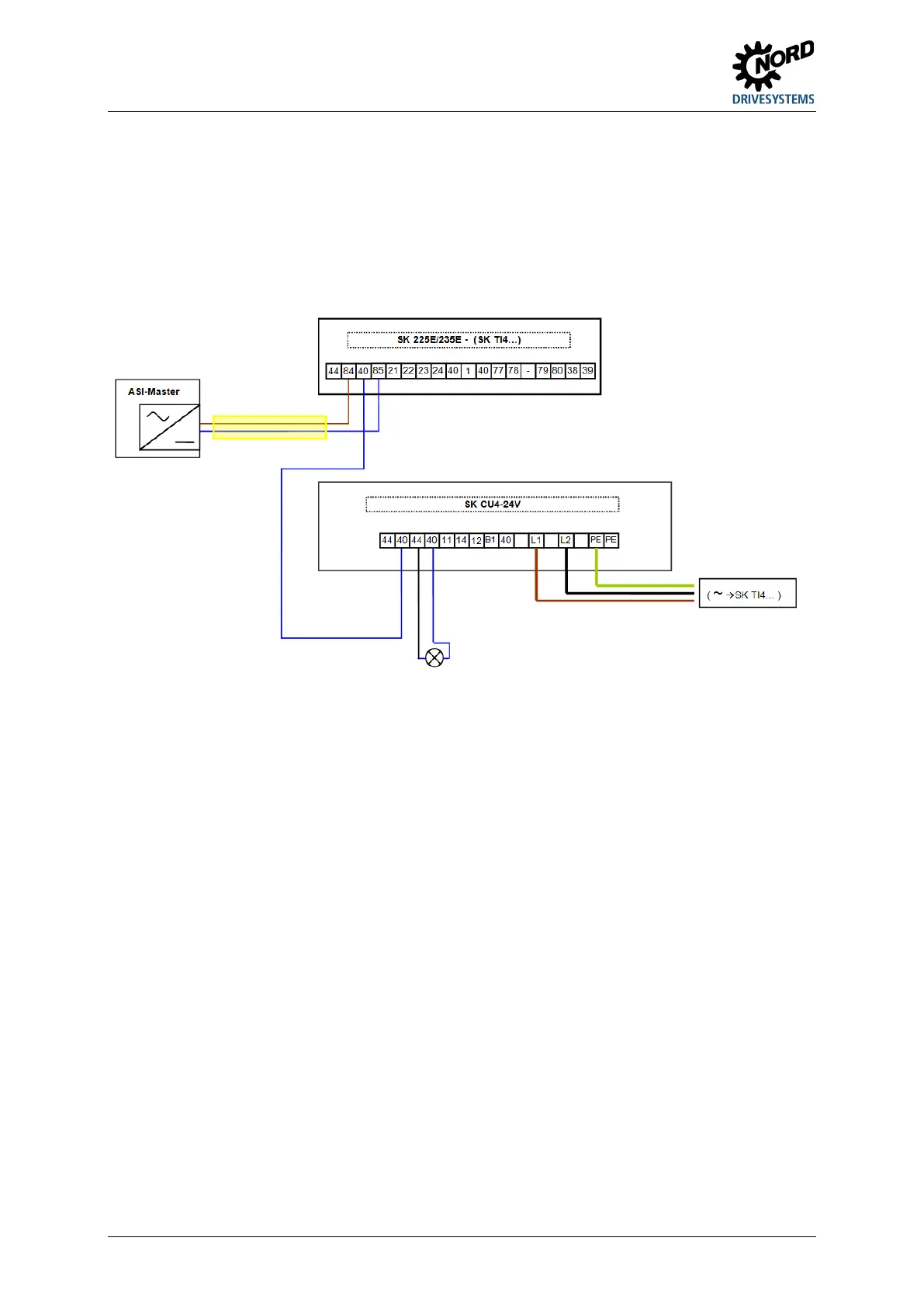

Connection example:
