EMC overview of standards that are used in accordance with EN 61800-3
as checking and measuring procedures:
Interference emission
Cable
-related emission
(interference voltage)
EN 55011
C2
-
Radiated emission
(interference field strength)
EN 55011
C2
-
Interference immunity EN 61000
-6-1, EN 61000-6-2
ESD, discharge of static electricity
EN 61000-4-2
6 kV (CD), 8 kV (AD)
EMF, high frequency electro-magnetic
fields
EN 61000-4-3 10 V/m; 80 – 1000 MHz
Burst on control cables
EN 61000-4-4
1 kV
Burst on mains and motor cables
EN 61000-4-4 2 kV
Surge (phase-phase / phase-ground)
EN 61000-4-5
1 kV / 2 kV
Cable-led interference due to high
frequency fields
EN 61000-4-6 10 V, 0.15 – 80 MHz
Voltage fluctuations and drops
EN 61000-2-1 +10 %, -15 %; 90 %
Voltage asymmetries and frequency
changes
EN 61000-2-4 3 %; 2 %
Table 15: Overview according to product standard EN 61800-3
Pos: 726. 13 / Anl eit unge n/ Elek tro nik/F U u nd St arter/ 8. Zus atz inf orma tio nen/ EMV /_E MV_ Ver dra htung s emp fehlu ng ( FU' s) @ 5\ mod_1396957994490_388.docx @ 125877 @ @ 1
1
FI
2
Brake resistance
(option)
3
EMC cable
gland
4
Functional
earthing
PE
Protective earth

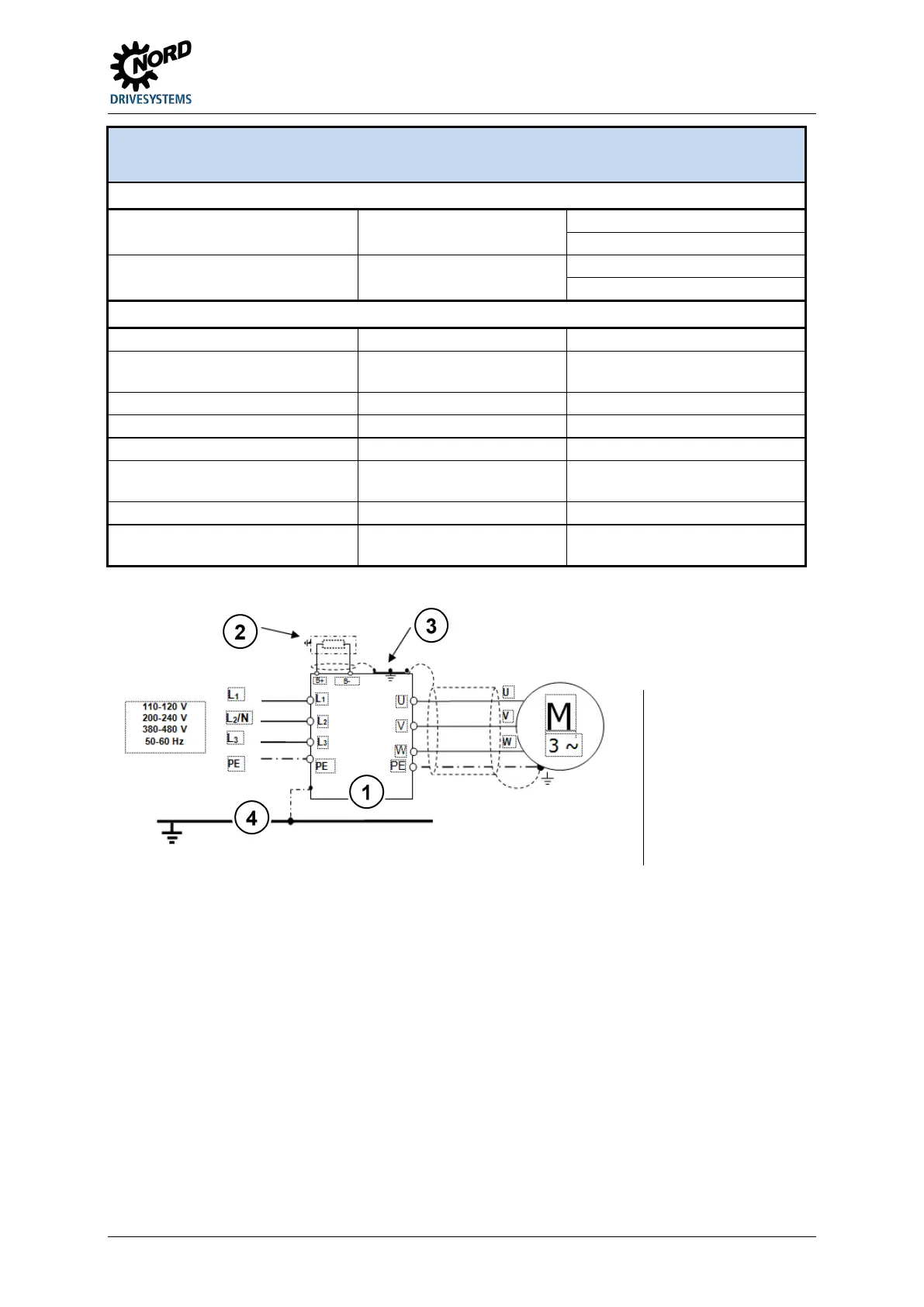

Figure 33: Wiring recommendation
