2 Assembly and installation
BU 0200 en-3118 47
Pos: 91 /A nl eitu nge n/El ek tro nik/FU u nd S tart er/ 2. M o ntag e un d Ins tall ati on/M o ntag e/W and mon tage - Ergänzung [SK 1xxE, SK 2xxE]/Einbaulagen FU mit Wandmontagekit [SK 2xxE] @ 1\mod_1341497232259_388.docx @ 3015 5 @ 4 @ 1
2.1.3.3 Frequency inverter installation positions with wall-mounting kit
Installation of the frequency inverter close to the motor is permissible in the following installation
orientations.
0
2
3
1

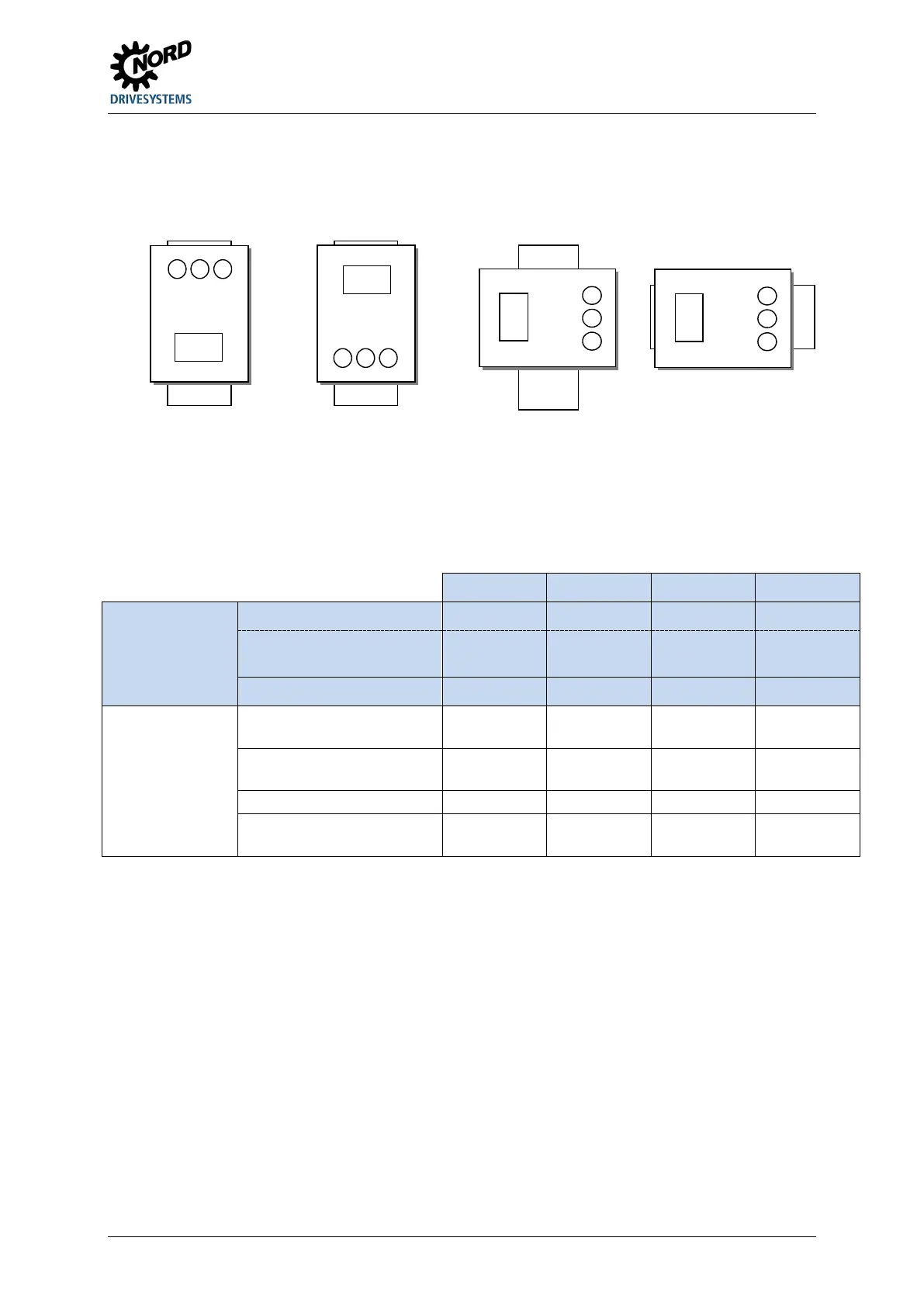

Figure 14: Frequency inverter installation positions with wall-mounting kit
0 1 2 3
Installation
orientation
Frequency inverter vertical vertical horizontal horizontal
Position of cooling fins
( / fan)
bottom top on side on side
Wall-mounting kit vertical vertical vertical horizontal
Type
Wall-mounting kit
SK TIE4-WMK-1-K
SK TIE4-WMK-2-K
- √ √ √
SK TIE4-WMK-1-EX
SK TIE4-WMK-2-EX
- √ √ √
SK TIE4-WMK-3
√ - √ √
SK TIE4-WMK-L-1
SK TIE4-WMK-L-2
- √ - √
√ = permissible / - = not permissible.
