3 Display, operation and options
BU 0200 en-3118 87
Pos: 18 5 /Anlei tung en/El ektr onik/FU und Star ter/3 . Anzei ge, Be dienu ng und Op tione n/Bedi enu ng [SK 1 xxE, 2xx E, -FDS] /Bedi en- und Parametrierboxen, Verwendung [SK 1x0E, SK 2xxE, SK xxxE-FDS] @ 1\mod_1343208174606_388.docx @ 37060 @ 35 @ 1
3.1.1 Control and Parametrisation Boxes / Software
All parameters can be conveniently accessed for reading or editing by means of an optional
SimpleBox or ParameterBox. The modified parameter data is stored in the non-volatile EEPROM
memory.
Up to 5 complete device data sets can be stored in the ParameterBox and then retrieved.
The connection between the SimpleBox or the ParameterBox and the device is made with an
RJ12-RJ12 cable.

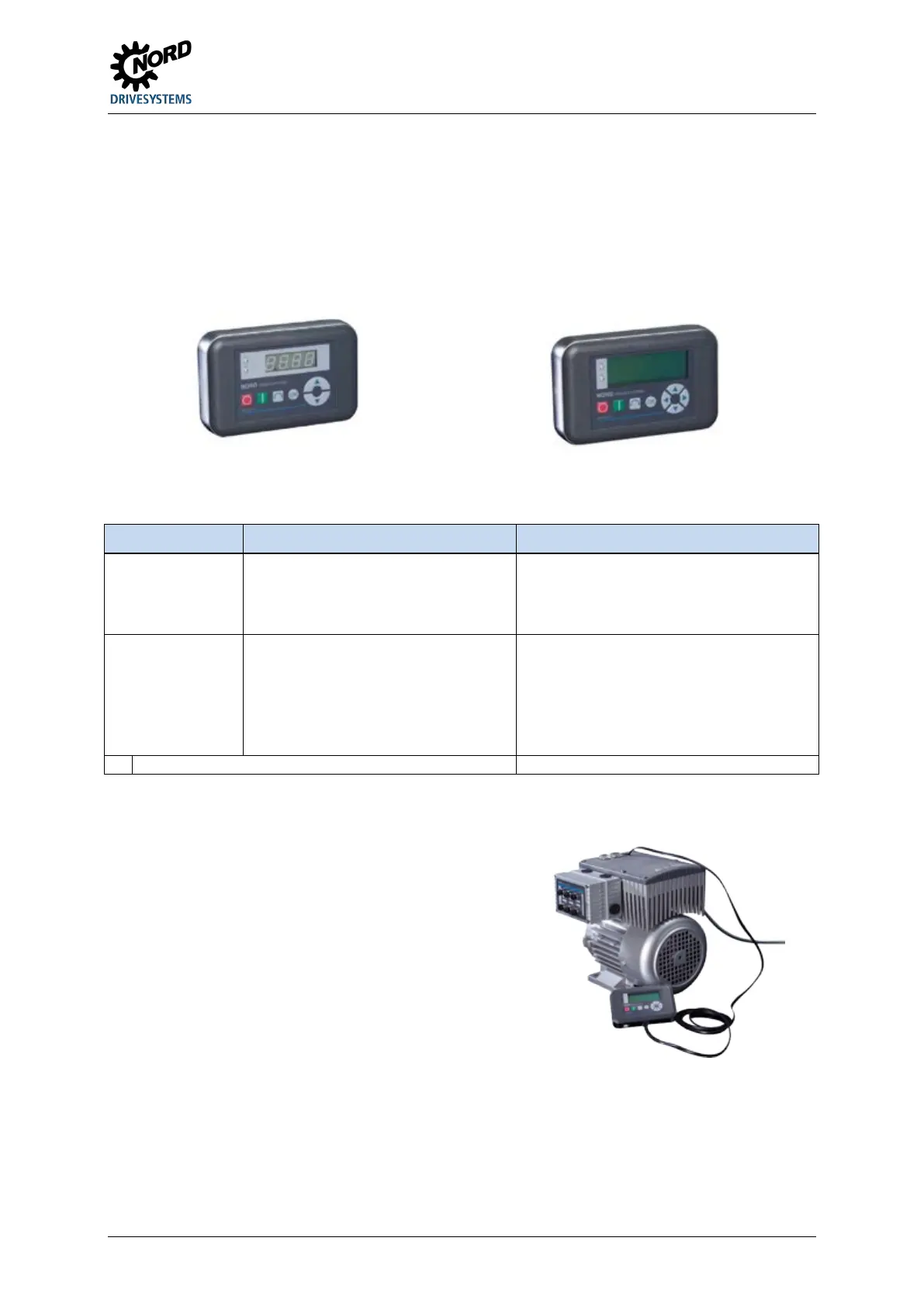

Figure 20: SimpleBox, handheld, SK CSX-3H Figure 21: ParameterBox, handheld, SK PAR-3H
Module Description Data
SK CSX-3H
(handheld SimpleBox)
Used for commissioning,
parameterisation, configuration and
control of the device
1)
.
4-digit, 7-segment LED display, membrane
keyboard
IP20
RJ12-RJ12 cable (connection to the device
1)
)
SK PAR-3H
(handheld ParameterBox)
Used for commissioning,
parameterisation, configuration and
control of the frequency inverter and its
options (SK xU4-…). Entire parameter
data sets can be stored.
2-line backlit LCD-display, membrane
keyboard
Stores up to 5 complete parameter data sets
IP20
RJ12-RJ12 cable (connection to device)
USB cable (connection to PC)
1)
does not apply to optional modules such as bus interfaces
Connection
1. Remove diagnostics glass of RJ12 socket.
2.
Connect the RJ12-RJ12 cable between the control
unit and the frequency inverter.
When a diagnostics glass or a blind plug is open,
take care that no dirt or moisture enters the device.
3.
After commissioning, the diagnostics glass or blind
plugs must be screwed back in again and it must
be ensured that they are tightly sealed before
starting regular operation.
