NORDAC FLEX (SK 200E ... SK 235E) – Users Manual for Frequency Inverters
72 BU 0200 en-3118
Pos: 16 4 /Anlei tung en/El ektr onik/FU und Star ter /2. M on tag e u nd I nstal la tio n/El ektr isc her Ans chl uss/ SK 1 xxE , S K 2 xxE, SK xxx E-FDS /S teuer tei l/N etz teil , S K CU 4 24 V … - Ans chl ussbeis piel _01 [SK 2xxE] @ 4\ mod_1395151789027_388.docx @ 122316 @ 3 @ 1
2.4.4 Power supply SK xU4-24V-… - connection example
Frequency inverter
SK 205E-.../SK 215E-...
Control terminal bar
44
.
40
.
21
22
23
24
.
.
.
L1 - L2/N - L3
115/230/400V
24V power supply
SK TU4-24V-... (+ SK TI4-TU-NET)*
or
SK CU4-24V-...
L1 - L2/N
115/230/400V
24V=
GND
10V=
AGND
0-10V
R
L
0-100%
1/3~ 115/230/400V + PE
Control terminal bar
44* 40 44* ... 11 14 12 B1
Switch
Poti 10kOhm
Control terminal bar
44* 40 44* ... 11 14 12 B1
Control terminal bar
44* 40 44* ... 11 14 12 B1
Analogue setpoint: 0(2) - 10V
Analogue setpoint 0 (4) - 20mA
=
* for
SK TU4-24V-… : terminal designation 43 instead of
44
AGND
500Ω
0(4)-20mA
AGND
0(2)-10V

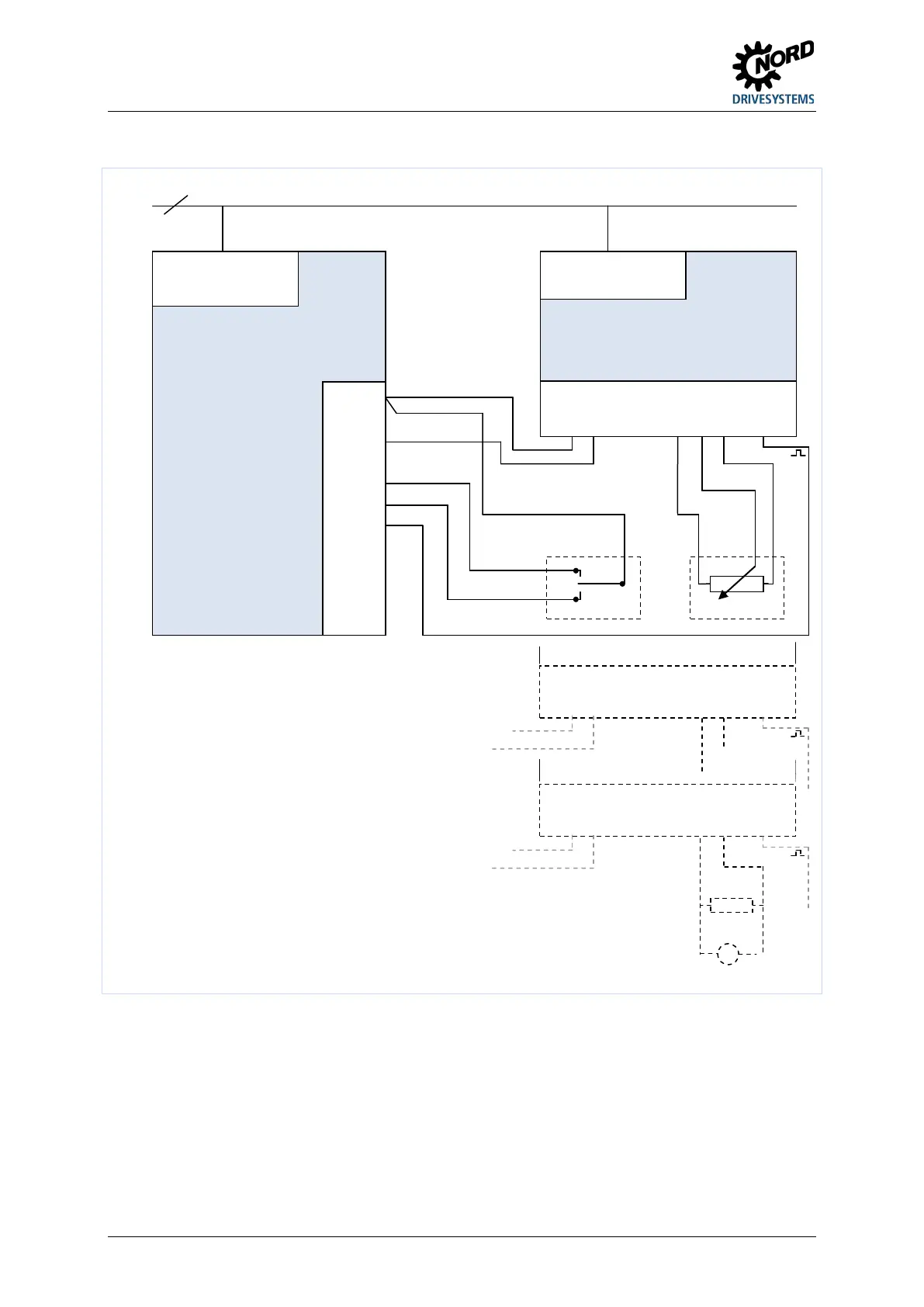

Figure 17: Connection example for power supply SK xU4-24V-…
Setting (S1):
(DIP switches)
DIP3 = off, DIP4 = on, DIP5 = off (chapter
4.3.2.2)
(can only be used for 0–10 V or 0–20 mA signals!)
or
recommended
parameter setting,
S1: DIP1-8 = off
P400 [07] = 1
P420 [02] =
2
P420 [01] = 1
P420 [03] =
26 (with 0-10 V / 0-20 mA - signals)
27 (with 2-10 V / 4-20 mA - signals)
