NORDAC FLEX (SK 200E ... SK 235E) – Users Manual for Frequency Inverters
272 BU 0200 en-3118
Pos: 74 9 /Anlei tung en/El ektr onik/FU und Star ter/8 . Zus atzinfor mati one n/Motor date n Kennl inien [SK 1x0E , SK 2x0E ]/10 0Hz Ken nlini e [SK 1x0 E, SK 2xx E] @ 2\ mod_1347450982002_388.docx @ 46329 @ 3 @ 1

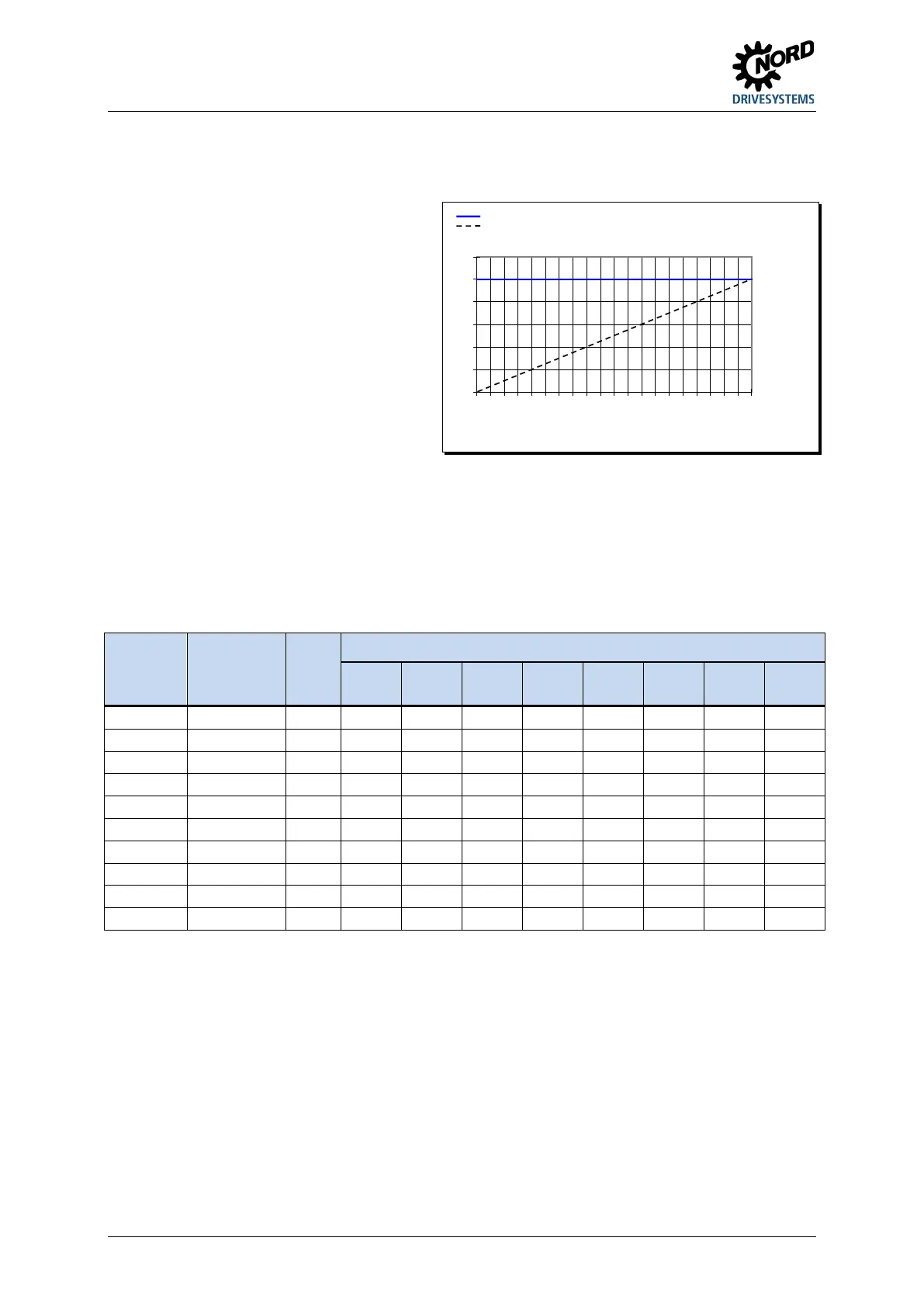

8.8.3 100 Hz characteristic curve (only 400 V devices)
( Variation 01:20)
An operating point 100 Hz/400
V can be
selected for a greater speed adjustment
range with up to a ratio of 1:20. Special
motor data is required in this case (see
below) that differs from the normal 50 Hz
data. It must be ensured in this case that a
constant torque is generated across the
entire adjustment range but that it is smaller
than the nominal torque for 50 Hz operation.
The advantage, in addition to the greater
speed adjustment range, is the improved
motor temperature behaviour. An external
fan is not absolutely essential for smaller
output speed ranges.
Kennlinie 100 Hz (4-poliger Motor)
0
0,2
0,4
0,6
0,8
1
1,2
0 10 20 30 40 50 60 70 80 90 100
Frequenz / Hz
M/Mn
M/M
N
P/P
N
0 1445 2890
Frequency
[Hz]
Speed
[rpm]
Figure 40: 100 Hz characteristic curve
NOTE: The following motor data applies for standard motors with a 230 / 400 V winding. It must
be noted that this information may change slightly because the motors are subject to certain
tolerances. It is recommended that the resistance of the connected motor is measured by the
frequency inverter (P208 / P220).
Pos: 75 0 /Anlei tung en/El ektr onik/FU und Star ter/8 . Zus atzinfor mati one n/Motor date n Kennl inien [SK 1x0E , SK 2x0E ]/10 0Hz Ken nlini e_Ta bell e [ SK 2 xxE ] @ 10\ mod_1449477846106_388.docx @ 269581 @ @ 1
Motor
(IE1)
SK …
Frequency
inverter
SK 2xxE-…
M
N
*
[Nm]
Parameterisation data of frequency inverter
F
N
[Hz]
n
N
[min-1]
I
N
[A]
U
N
[V]
P
N
[kW]
cos Ï•
Y/Δ
R
St
[Ω]
71L/4
550-340-A
1.81
100
2900
1.59
400
0.55
0.72
Δ
22.85
80S/4
750-340-A
2.46
100
2910
2.0
400
0.75
0.72
Δ
15.79
80L/4
111-340-A
3.61
100
2910
2.8
400
1.1
0.74
Δ
10.49
90S/4 151-340-A 4.90 100 2925 3.75 400 1.5 0.76 Δ 6.41
90L/4
221-340-A
7.19
100
2920
4.96
400
2.2
0.82
Δ
3.99
100L/4
301-340-A
9.78
100
2930
6.95
400
3.0
0.78
Δ
2.78
100LA/4
401-340-A
12.95
100
2950
7.46
400
4.0
0.76
Δ
1.71
112M/4
551-340-A
17.83
100
2945
11.3
400
5.5
0.82
Δ
1.11
132S/4 751-340-A 24.24 100 2955 16.0 400 7.5 0.82 Δ 0.72
132MA/4
112-340-A
35.49
100
2960
23.0
400
11.0
0.80
Δ
0.39
* at rated point
100 Hz characteristic curve (4-pole motor)
